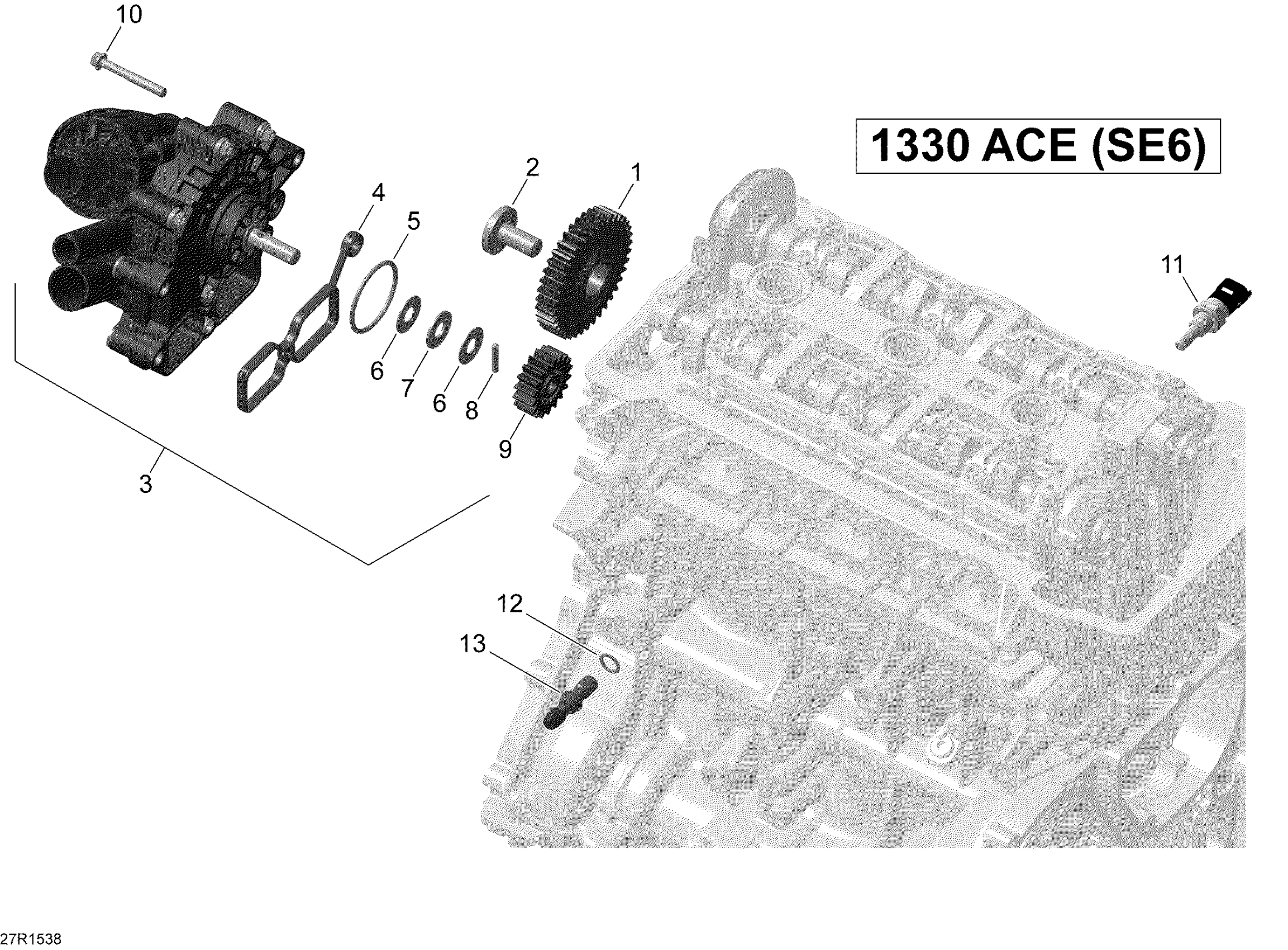

Can-Am Spyder F3 SE6, 2015 Engine Cooling _27R1538 Diagram

#

Description
Price

1

Drive Gear 39 Teeth

420435370

$37.99

2

Flat Head Screw M12 X 1.5

420441365

$5.82

3

Water Pump | Includes 3 to 9

420686012

$284.99

4

Gasket

420431970

$12.10

5

O-Ring

420450220

$5.77

6

Thrust Washer

420626790

$4.23

7

Needle Bearing

420632305

$20.49

8

Needle Pin

420232425

$1.37

9

Water Pump Gear

420435300

$20.99

10

Torx Flange Screw M6 X 45

420440324

$0.98

11

Temperature Sensor

278002895

$39.99

12

Oil Seal

420230150

$2.85

13

Bleeder Screw M10 X 1

420441630

$15.35
