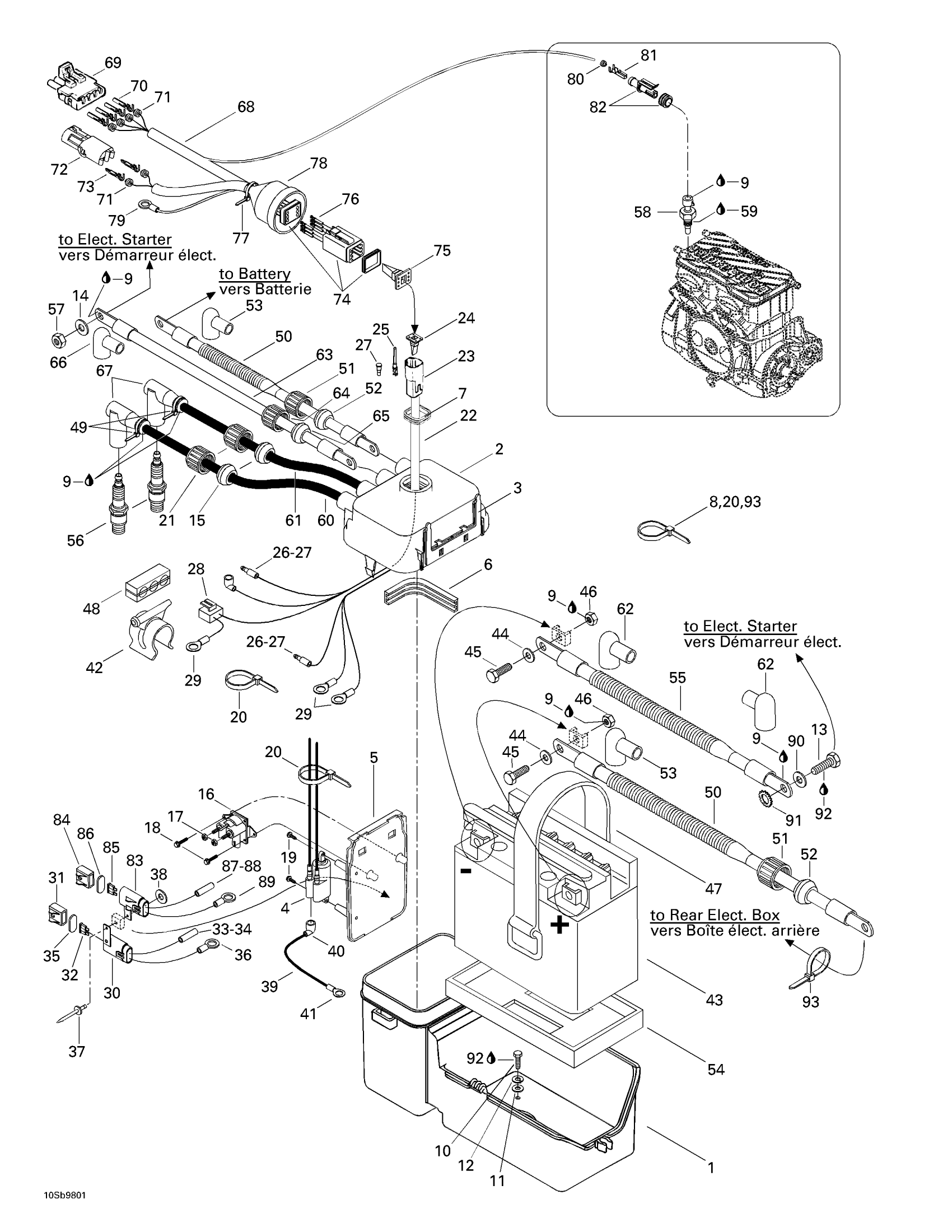

Sea-doo SPX, 5838/5839, 1998 Rear Electrical Box Diagram

#

Description
Price

1

Base

278001191

Unavailable

2

Cover

278001264

Unavailable

3

Ground Plate

278000732

Unavailable

4

Ignition Coil

278000383

Unavailable

5

Mounting Plate

278001193

Unavailable

6

GASKET - Call your local BRP dealership

278000440

Unavailable

7

Gasket

293200030

Unavailable

8

Tie Wrap 142 mm

293750002

Unavailable

9

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

10

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

11

Flat Washer 5 mm, Stainless

234052600

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Hex. Screw M8 x 16

215681660

Unavailable

14

Stainless Flat Washer M6

234061600

$0.25

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

Unavailable

17

Hex. Elastic Stop Nut M6

232561600

$0.92

18

Hex. Flange Screw M6 X 10

210261040

Unavailable

19

Self Tapping Screw M6.3 x 25

215462550

Unavailable

20

Tie Wrap 94 mm | 4X4

293750001

$0.83

21

Electric Wire Cap

278000100

Unavailable

22

Rear Electric Box Harness | Includes 22 - 29.

278000663

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$15.57

24

Female Lock, 6 Circuits

278000735

$3.02

25

Male Terminal

278000631

$4.12

26

Male Terminal

278000230

Unavailable

27

Insulated Sheath

278001008

Unavailable

28

Female Terminal

278001114

$2.55

29

Ring Terminal

278000300

Unavailable

30

Fuse Harness 15 Amp | Includes 28 - 34.

278000665

Unavailable

31

Fuse Holder Cap

278001326

$6.03

32

Fuse, 15 Amperes

278000343

$2.72

33

Female Terminal | DS 650 X

278001009

Unavailable

34

Insulated Sheath

278001007

Unavailable

35

Cushion

278000805

$3.22

36

Ring Terminal

278000300

Unavailable

37

Pop Rivet 3/16"

293150014

$0.87

38

Flat Washer, Emhart

213200016

Unavailable

39

Ground Harness | Includes 82 - 84.

278000664

Unavailable

40

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

41

Ring Terminal

278000300

Unavailable

42

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

43

Battery 19A | Includes 5 to 8

278001756

Unavailable

44

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

45

Hex. Screw M6 X 16

207161644

Unavailable

46

Hex. Nut M6

232061414

$0.44

47

STRAP - Call your local BRP dealership

293850031

Unavailable

48

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

49

Tie Wrap 142 mm

293750002

Unavailable

50

Engine Harness | RX DI 5591/5592.

278000511

Unavailable

51

Electric Wire Cap

278000100

Unavailable

52

GROMMET - Call your local BRP dealership

278000098

Unavailable

53

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

54

Battery Lower Pad

278001234

Unavailable

55

Battery Ground Cable

278000512

Unavailable

56

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

Unavailable

57

Hex. Elastic Stop Nut M6

232561600

$0.92

58

Temperature Sensor

278000965

Unavailable

59

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

60

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

61

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

62

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

63

Starter Cable (Red) | Includes 63 - 66.

278000444

Unavailable

64

Electric Wire Cap

278000100

Unavailable

65

GROMMET - Call your local BRP dealership

278000098

Unavailable

66

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

67

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

68

Intermediate Harness

278001207

Unavailable

69

Male Housing, 4 Circuits

278000395

Unavailable

70

Female Terminal

278000223

Unavailable

Female Terminal

409007300

$0.36

71

Wire Seal

278000218

Unavailable

72

Female Housing, 2 Circuits

278000217

Unavailable

73

Male Terminal | XT Models

278000222

$2.55

74

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

75

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

76

Female Terminal

278000632

Unavailable

77

Tie Wrap 142 mm

293750002

Unavailable

78

Switch Boot

570150700

Unavailable

79

Open Barrel

278000992

$1.79

80

Wire Seal

278001013

Unavailable

81

Female Terminal

278001014

Unavailable

82

Male Housing, 1 Circuit

278001012

$12.65

83

Fuse Harness 7.5 Amp | Includes 83 - 89.

278000666

Unavailable

84

Fuse Holder Cap

278001326

$6.03

85

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

86

Cushion

278000805

$3.22

87

Female Terminal | DS 650 X

278001009

Unavailable

88

Insulated Sheath

278001007

Unavailable

89

Ring Terminal

278000300

Unavailable

90

Stainless, Flat Washer 8 mm

234081600

Unavailable

91

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

92

Loctite 271, 10 ml

293800005

Unavailable

93

Tie-Rap 173 mm

293750009

Unavailable
