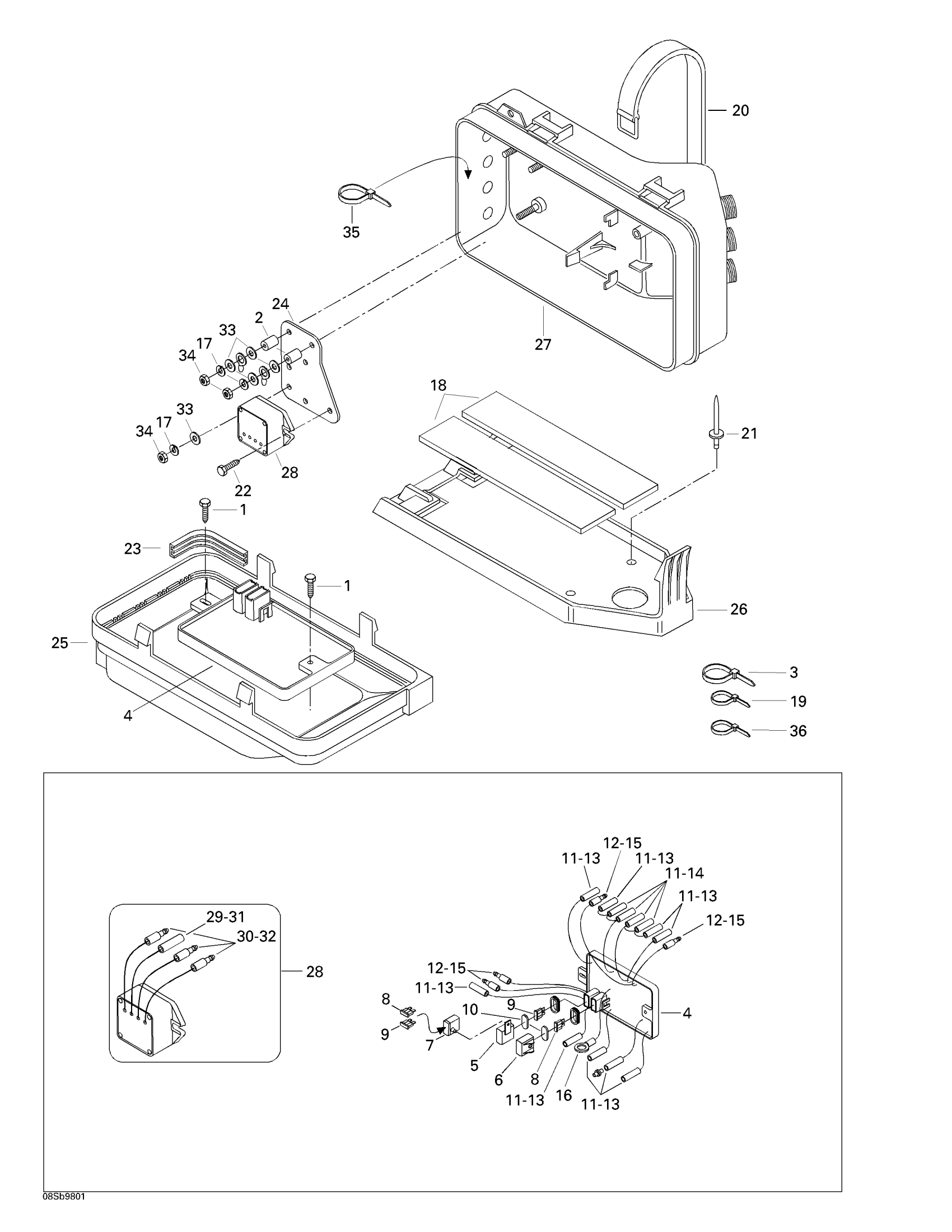

Sea-doo SPX, 5838/5839, 1998 Electrical Box Diagram

#

Description
Price

1

Hex. Screw M6.3 x 16

211000012

Unavailable

2

Spacer

278000644

Unavailable

3

Tie Wrap 142 mm

293750002

Unavailable

4

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 4 - 16.

278001255

Unavailable

5

Fuse Holder Cap

278001326

$6.03

6

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

7

Fuse Holder

278000379

Unavailable

8

Fuse, 5 Amperes | CE

278000344

$3.22

9

Fuse, 15 Amperes

278000343

$2.72

10

Cushion

278000805

$3.22

11

Female Terminal | DS 650 X

278001009

Unavailable

12

Male Terminal

278000230

Unavailable

13

Insulated Sheath

278001007

Unavailable

14

Insulated Sheath

278000770

Unavailable

15

Insulated Sheath

278001008

Unavailable

16

Open Barrel

278000992

$1.79

17

Lock Washer Helical M6

234161601

Unavailable

18

Rubber Strip

293830012

Unavailable

19

Tie Wrap 94 mm | 4X4

293750001

$0.83

20

Retainer Strap

293850097

Unavailable

21

Avdel Rivet 3/16"

293150037

$0.47

22

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

23

Gasket

278000181

Unavailable

24

Mounting Plate

278000615

Unavailable

25

Electric Box Cover

278001082

Unavailable

26

Electric Box Support

278001119

Unavailable

27

Electric Box Base

278001085

Unavailable

28

Rectifier Ass'y | Includes 14 - 18.

278000443

Unavailable

29

Female Terminal | DS 650 X

278001009

Unavailable

30

Male Terminal

278000230

Unavailable

31

Insulated Sheath

278001007

Unavailable

32

Insulated Sheath

278001008

Unavailable

33

Stainless Flat Washer M6

234061600

$0.25

34

Hex. Nut M6

232061600

Unavailable

35

Tie-Rap 173 mm

293750009

Unavailable

36

Tie Wrap 368 mm

293750008

$0.85
