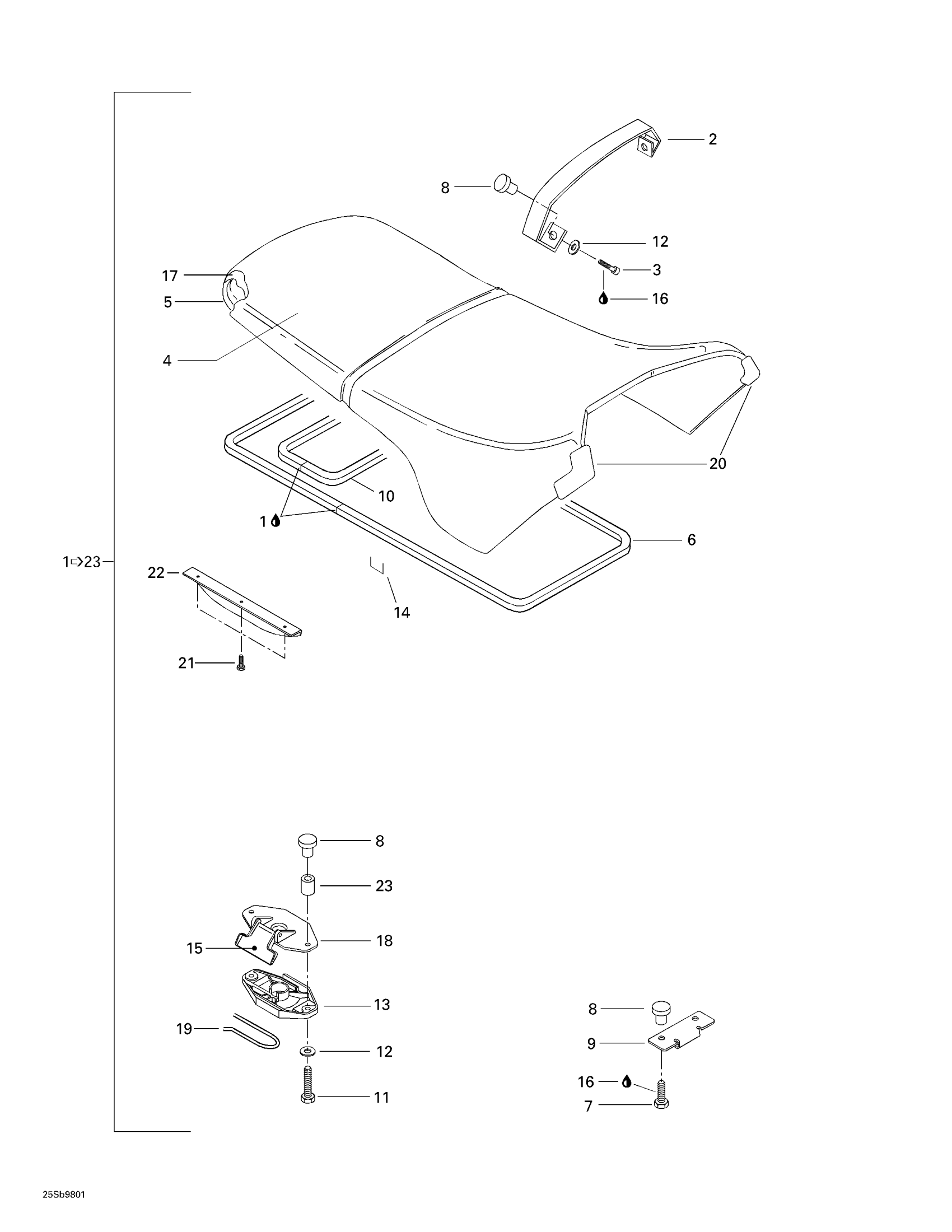

Sea-doo SPX, 5838/5839, 1998 Seat And Engine Cover Diagram

#

Description
Price

1

SEAT ASS'Y (YELLOW) - Call your local BRP dealership | Includes 1 - 23.

269000444

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Strap (Yellow)

269000191

Unavailable

3

Socket Screw Button Head M6 X 10 | DS 650

250000436

Unavailable

4

Seat Cover (Yellow)

269000445

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Was 293200017 Neoprene Seal

219704365

Unavailable

7

Hex. Screw M6 x 12

210000011

Unavailable

8

Nut Welded, M6

293100003

Unavailable

9

Base Keeper

291000174

Unavailable

10

Was 293200017 Neoprene Seal

219704365

Unavailable

11

Screw Hex. M6 X 35, Scotch Grip

207363560

Unavailable

12

Stainless Flat Washer M6

234061600

$0.25

13

Latch Ass'y

269700109

Unavailable

14

Staple

293730005

Unavailable

15

Latch Ass'y

269700109

Unavailable

16

Loctite 243, 10 ml

293800060

$20.77

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Latch Ass'y

269700109

Unavailable

19

Latch Spring

269700017

$7.27

20

Corner Seat RH (Yellow)

269000174

Unavailable

Corner Seat LH (Yellow)

269000175

Unavailable

21

Screw (For Plastic)

211000034

Unavailable

22

Protection Plate

269000173

Unavailable

23

SPACER - Call your local BRP dealership

291000532

Unavailable
