Steering System

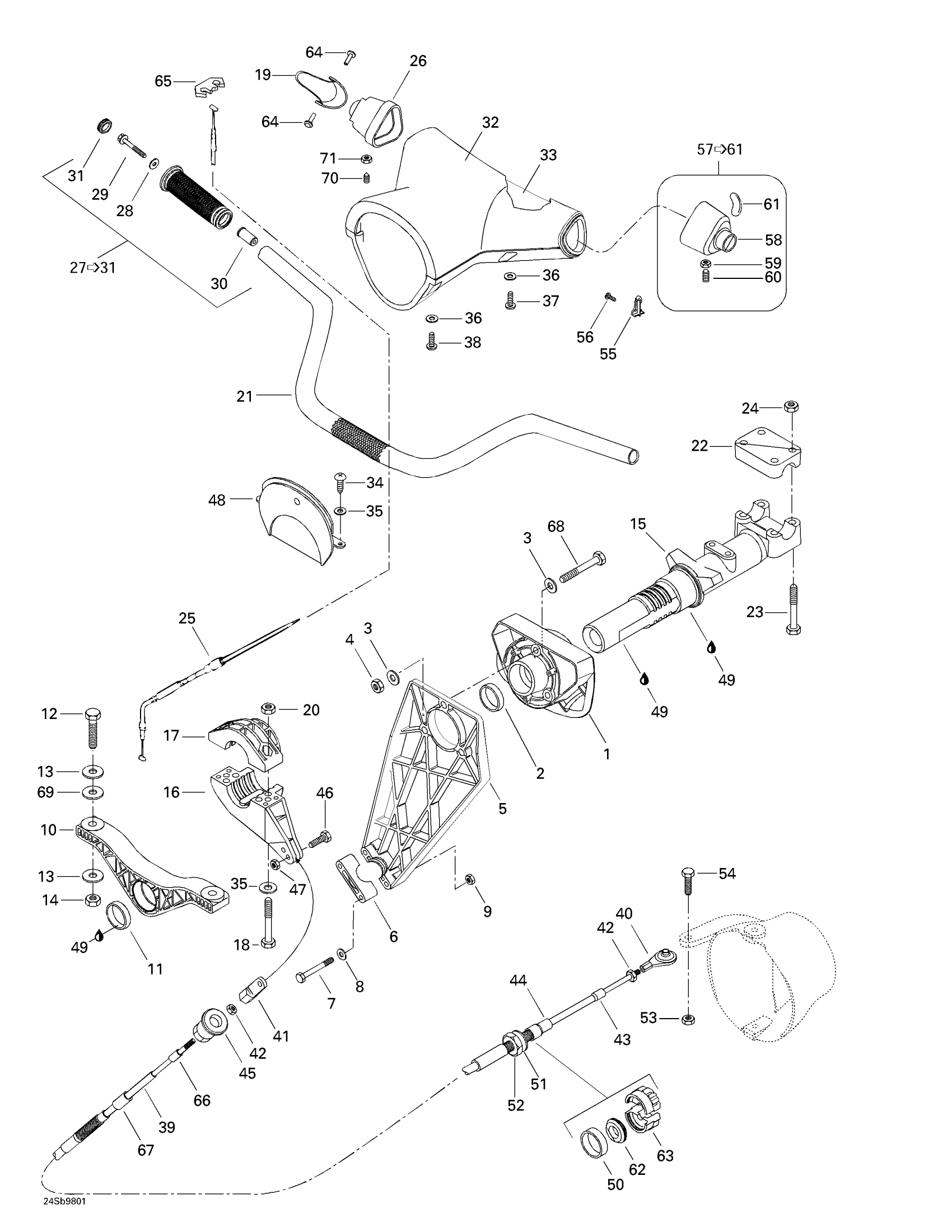

Sea-doo SPX, 5838/5839, 1998 Steering System Diagram
#
1
Rear Support | Includes 1 - 2.
277000106
Unavailable
2
Spherical Cushion
293900008
Unavailable
3
Stainless, Flat Washer 8 mm
234081600
Unavailable
4
Hex. Elastic Nut M8
232581600
Unavailable
5
Cable Support
277000161
Unavailable
6
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
7
Hex. Screw M6 X 50
207065060
Unavailable
10
Front Support | Includes 10 - 11.
277000291
Unavailable
11
Spherical Cushion
293900009
Unavailable
12
Hex. Screw M8 X 40
207084060
Unavailable
13
Flat Washer 8 mm, Stainless
234082600
Unavailable
14
Hex. Elastic Nut M8
232581600
Unavailable
15
Steering Stem
277000375400
Unavailable
16
Steering Stem Arm
277000165
Unavailable
17
THRUST ARM - Call your local BRP dealership
277000510
Unavailable
18
Hex. Screw M6 X 30
207163060
Unavailable
19
Throttle Handle
277000214
Unavailable
21
Handle bar
277000305
Unavailable
22
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
23
HEX. SCREW M8 X 50 - Call your local BRP dealership
207085060
Unavailable
24
Hex. Elastic Nut M8
232581600
Unavailable
25
Throttle Cable
277000468
Unavailable
26
Throttle Handle Housing
277000285
Unavailable
27
Handle Grip Kit (Black) This part replaces 295500112.
295500110
Unavailable
28
Flat Washer M6, Stainless
234062600
Unavailable
29
PLASTITE SCREW HEX. M6.81 X 45 - Call your local BRP dealership | (7448 Up to S/N v000708)
243164560
Unavailable
30
Not Available As Spare Part - Friction Washer
Unavailable
31
Black, Cap
277000203
Unavailable
32
Steering Cover (Yellow)
277000333
Unavailable
33
Foam (Top)
277000187
Unavailable
34
HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership
211000036
Unavailable
35
Flat Washer M6, Stainless
234062600
Unavailable
37
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
38
Phillips Screw 10-14 X 7/8”
211000037
Unavailable
39
STEERING CABLE - Call your local BRP dealership
277000289
Unavailable
40
BALL JOINT - Call your local BRP dealership
277000153
Unavailable
41
Joint
277000646
Unavailable
42
Hex. Nut
212100005
Unavailable
43
Small Boot
277000038
Unavailable
44
LARGE BOOT - Call your local BRP dealership
277000039
Unavailable
45
KNOB ADJUSTER - Call your local BRP dealership
277000167
Unavailable
46
HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership
211000022
Unavailable
48
Plate (Yellow)
277000334
Unavailable
49
Synthetic Grease, 400 G
293550010
Unavailable
50
Retaining Ring
211100010
Unavailable
51
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
52
Hex. Jam Nut 1/2-20
211100011
Unavailable
54
Hex. Screw M6 X 30
207063060
Unavailable
55
Retainer Plate
277000219
Unavailable
56
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
57
LH HANDLE HOUSING - Call your local BRP dealership | Includes 35 - 38.
277000498
Unavailable
58
Not Available As Spare Part - Friction Washer
Unavailable
60
Set Screw M6 x 12
211000039
Unavailable
61
VTS KNOB - Call your local BRP dealership
277000497
Unavailable
62
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
63
Half-Ring
277000168
Unavailable
64
PIN - Call your local BRP dealership
277000381
Unavailable
65
TAB LOCK - Call your local BRP dealership
277000279
Unavailable
66
SMALL BOOT - Call your local BRP dealership
277000278
Unavailable
67
Large Boot
277000277
Unavailable
68
Hex. Screw M8 x 65
215686560
Unavailable
69
Plastic Washer
277000100
Unavailable
70
Set Screw M6 x 12
211000039
Unavailable
