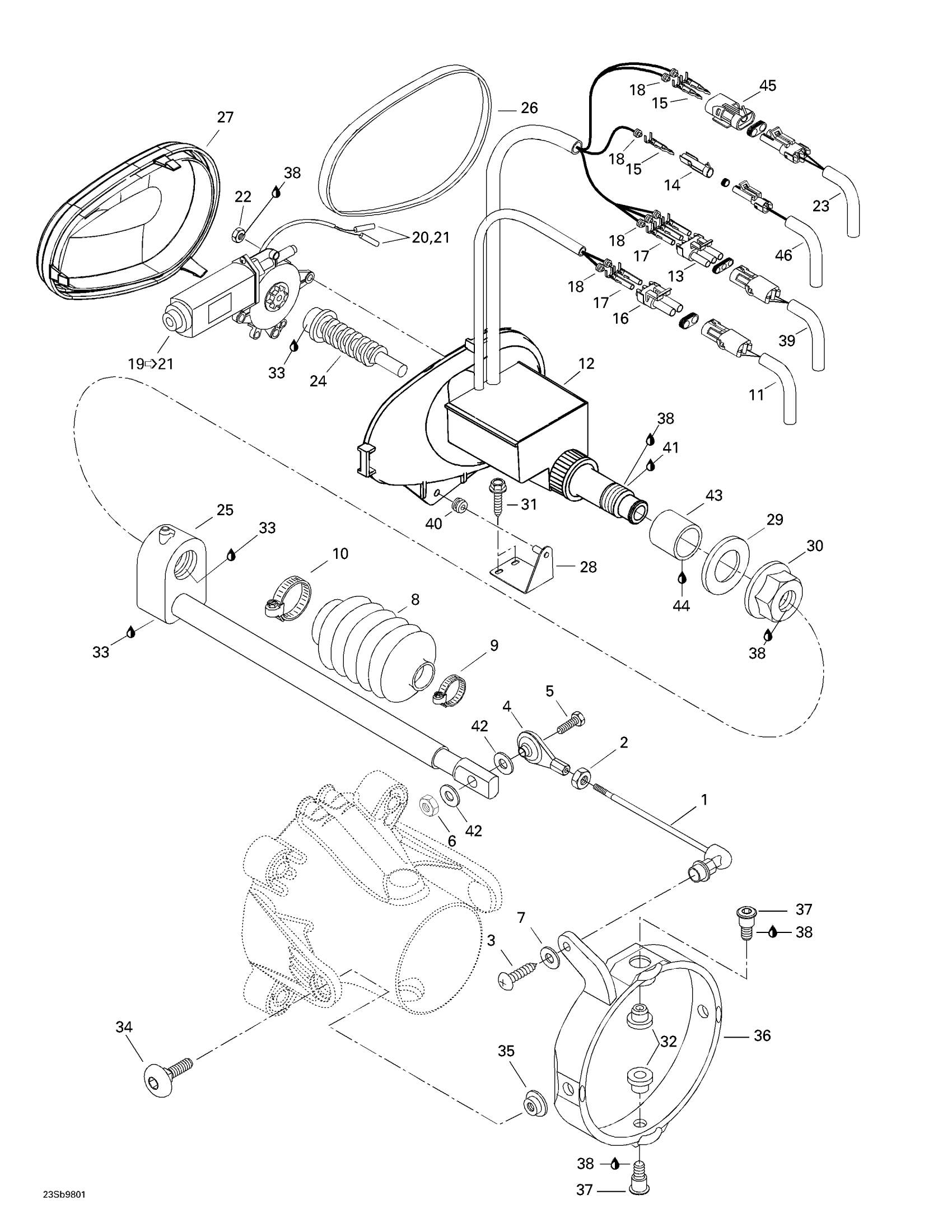

Sea-doo SPX, 5838/5839, 1998 Electric Trim Diagram

#

Description
Price

1

Moulding Rod

271000555

Unavailable

2

Hex. Nut

212100005

$0.90

3

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

4

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

5

Hex. Screw M6 X 35

207063560

$1.85

6

Hex. Elastic Stop Nut M6

232561600

$0.92

7

Flat Washer 5 mm, Stainless

234052600

$0.64

8

Protector Hose

271000459

$12.23

9

Clamp

293650082

$3.33

10

CLAMP - Call your local BRP dealership

293650083

Unavailable

11

Engine Harness | Includes 63 - 73.

278000982

Unavailable

12

VTS Housing

278000668

Unavailable

13

Male Housing, 3 Circuits

278000273

$7.59

14

Female Housing, 1 Circuit

278000161

$8.72

15

Male Terminal | XT Models

278000222

$2.55

16

Male Connector, 2 Circuits

278000220

$11.02

17

Female Terminal

278000223

$2.55

18

Wire Seal

278000218

$3.48

19

Windshield Motor

278002579

$184.57

20

Insulation Sheath

278000231

$4.13

21

Male Terminal

278000230

$3.48

22

Hex. Elastic Stop Nut M6

232561600

$0.92

23

6 Circuits Harness

278000827

Unavailable

24

Worm Screw

278000428

$11.53

25

Sliding Block Ass’y

278001698

$34.42

26

GASKET - Call your local BRP dealership

293200027

Unavailable

27

V.T.S. COVER - Call your local BRP dealership

278000595

Unavailable

28

V.T.S. SUPPORT ASSY - Call your local BRP dealership

292000250

Unavailable

29

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

30

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

31

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

32

Venturi Bushing

293900007

$3.71

33

Synthetic Grease, 400 G

293550010

Unavailable

34

Screw

211000007

Unavailable

35

Venturi Bushing

271000321

$6.18

36

Trimming Ring

271000461190

Unavailable

37

Socket Head Screw M8 x 10

211000089

Unavailable

38

Loctite 243, 10 ml

293800060

$20.77

39

VTS Switch Ass'y

278000447

Unavailable

40

GROMMET - Call your local BRP dealership

293720015

Unavailable

41

Was 293800041 Loctite Primer 7649

219704458

$41.99

42

Stainless Flat Washer M6

234061600

$0.25

43

Spacer

278000814

Unavailable

44

Silicone Sealant 51388, 300 ml

296000309

$35.72

45

Female Housing, 2 Circuits

278000217

$7.59

46

1 Circuit Harness

278000671

Unavailable
