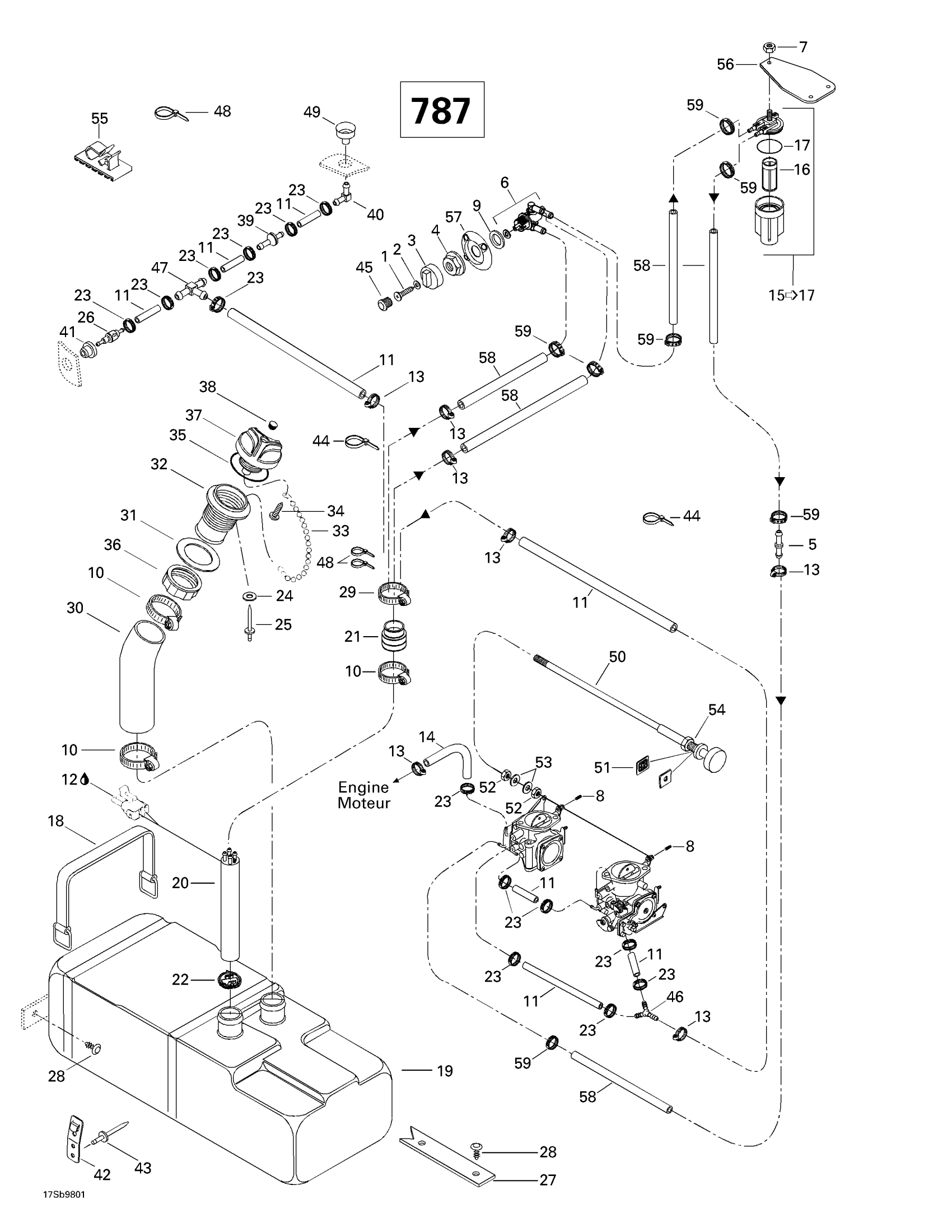

Sea-doo SPX, 5838/5839, 1998 Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

Unavailable

3

FUEL VALVE KNOB - Call your local BRP dealership

275500299

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

STRAIGHT FITTING - Call your local BRP dealership

293710046

Unavailable

6

Fuel Valve

275500400

Unavailable

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Allen Screw M4 x 6

210100014

Unavailable

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650023

Unavailable

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

13

Tridon Gear Clamp

293650170

$1.74

14

Formed Hose

275500270

Unavailable

15

FUEL FILTER ASS'Y - Call your local BRP dealership | Includes 30 - 32.

275500358

Unavailable

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

Unavailable

18

Strap

293850023

Unavailable

19

FUEL TANK - Call your local BRP dealership

275500109

Unavailable

20

Baffle Pick-Up Ass'y | Includes 20 - 25.

275500404

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Oetiker Clamp

293650042

Unavailable

24

Flat Washer M3, Stainless

234032600

$0.54

25

Pop Rivet 1/8"

390407900

Unavailable

26

Pressure Relief Valve (1.5 P.S.I)

275500104

Unavailable

27

Pad Rubber

293830033

Unavailable

28

Black, Dart

293730006

Unavailable

29

Tridon Clamp

293650035

Unavailable

30

Filler Hose Neck

275500110

Unavailable

31

Gasket

293250029

Unavailable

32

Filler Neck, Fuel

275500231

Unavailable

33

Chain

275500168

Unavailable

34

Screw K40 X 10

241140060

$1.25

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

Unavailable

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

Unavailable

38

Black, Snap Cap

293000034

Unavailable

39

Check Valve

275500398

Unavailable

40

Male Connector

414580700

Unavailable

41

Grommet

293720029

Unavailable

42

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.47

44

Tie Wrap 142 mm

293750002

Unavailable

45

Black, Cap

275500241

Unavailable

46

Y-Fitting

293710059

Unavailable

47

T-Fitting | Europe

293710024

Unavailable

48

Tie-Rap 180 mm

414115200

$0.09

49

Rubber Washer

293830011

Unavailable

50

Choke Cable | Includes 50 - 54.

270000281

Unavailable

51

Choke Plate

291000457

Unavailable

52

Hex. Nut M6

232160600

Unavailable

53

Stainless Flat Washer M6

234061600

$0.25

54

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

55

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

56

Fuel Filter Support

275500113

Unavailable

57

Fuel Valve Plate

275500285

Unavailable

58

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

59

Crimp Clamp, 15.3-706R

293650047

Unavailable
