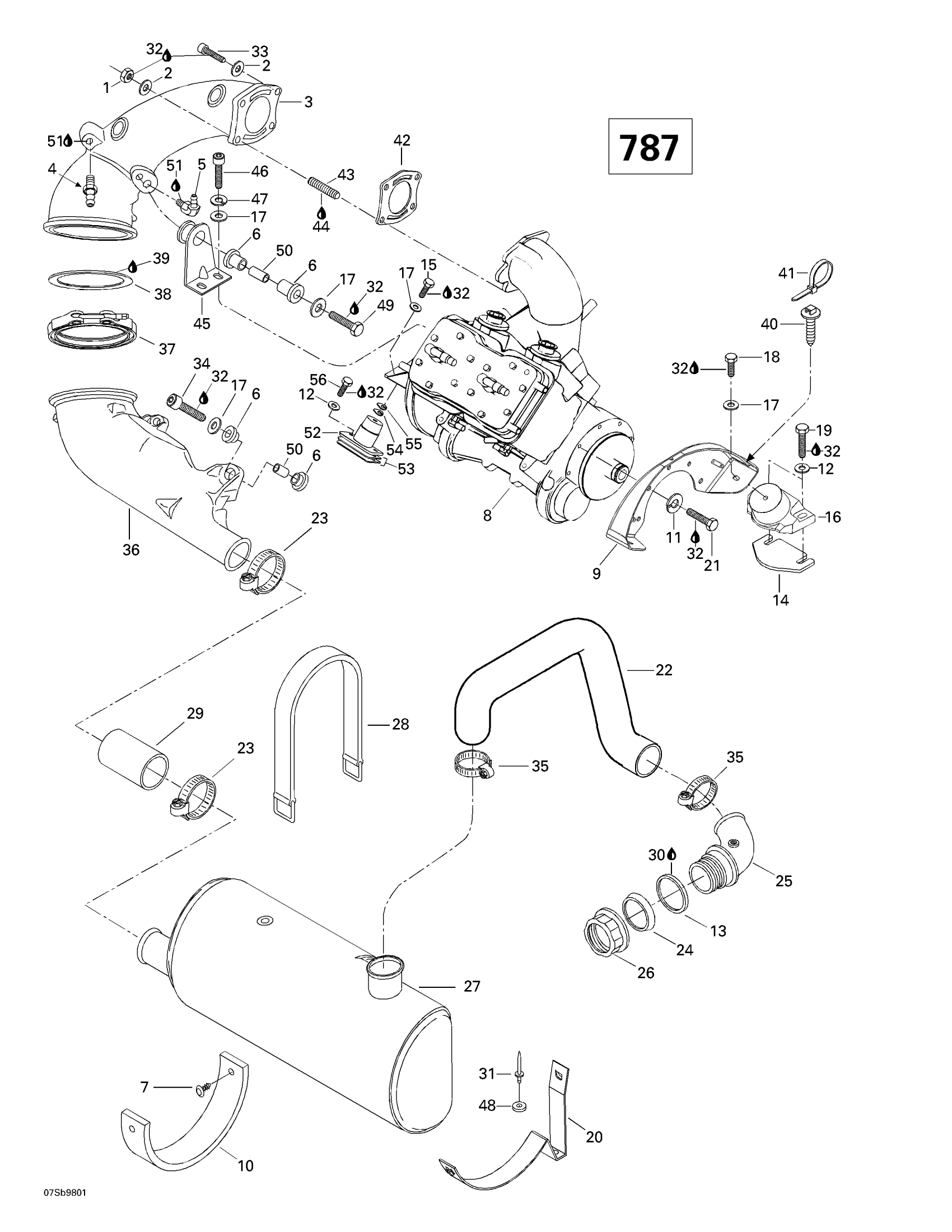

Sea-doo SPX, 5838/5839, 1998 Engine Support And Muffler (787) Diagram

#

Description
Price

1

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

2

Flat Washer 10 mm, Stainless

234001600

Unavailable

3

Head Pipe Ass'y | Includes 6 - 8.

274000161

Unavailable

4

Male Connector | With Catalyst

293710021

Unavailable

5

Elbow Fitting 90°

293710048

Unavailable

6

RUBBER BUSHING - Call your local BRP dealership

293830036

Unavailable

7

Black, Dart

293730011

Unavailable

8

Rotax Engine 787

270000348

Unavailable

9

Engine Support

270000359

Unavailable

10

Rubber Pad

293830055

Unavailable

11

Lock Washer 8 mm, Stainless

234181601

Unavailable

12

Stainless, Flat Washer 8 mm

234081600

Unavailable

13

GASKET - Call your local BRP dealership

293250041

Unavailable

14

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

16

Rubber Mount

270000352

Unavailable

17

Flat Washer 8 mm, Stainless

234082600

Unavailable

18

Hex. Screw M8 x 16

215681660

Unavailable

19

Hex. Screw M8 X 40

207184060

Unavailable

20

Muffler Support

274000352

Unavailable

21

Hex. Screw M8 X 25, Scotch Grip

207382560

Unavailable

22

EXHAUST HOSE - Call your local BRP dealership

274000558

Unavailable

23

Tridon Clamp

293650023

Unavailable

24

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

25

EXHAUST OUTLET - Call your local BRP dealership | Engine 1503 BVIC

274000542

Unavailable

26

Nut 72 mm

274000224

Unavailable

27

Muffler

274000494

Unavailable

28

Retainer Strap

293850097

Unavailable

29

Exhaust Hose

274000170

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

Unavailable

31

Avdel Rivet 3/16"

293150037

$0.47

32

Loctite 243, 10 ml

293800060

$20.77

33

Allen Screw M10 x 30

215903060

Unavailable

34

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

35

Tridon Clamp

293650064

Unavailable

36

Cone Pipe ass'y

274000210

Unavailable

37

Clamp-Exhaust

274000357

Unavailable

38

Brass Washer

274000169

Unavailable

39

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

40

Mount Dart

293730040

$0.86

41

Tie Wrap 94 mm | 4X4

293750001

$0.83

42

Gasket

290931500

Unavailable

43

Stud M10

211300017

Unavailable

44

Loctite 271, 10 ml

293800005

Unavailable

45

Pipe Support

274000598

Unavailable

46

Allen Screw M8 x 20

215982060

Unavailable

47

Lock Washer 8 mm, Stainless

234181601

Unavailable

48

Flat Washer 5 mm, Stainless

234052600

Unavailable

49

Hex. Screw M8 X 40

207084060

Unavailable

50

Bushing

274000254

Unavailable

51

Was 293800013 Loctite 56765

219704454

Unavailable

52

Rubber Mount

270000353

Unavailable

53

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

54

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

55

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

56

Hex. Screw M8 X 40

207184060

Unavailable
