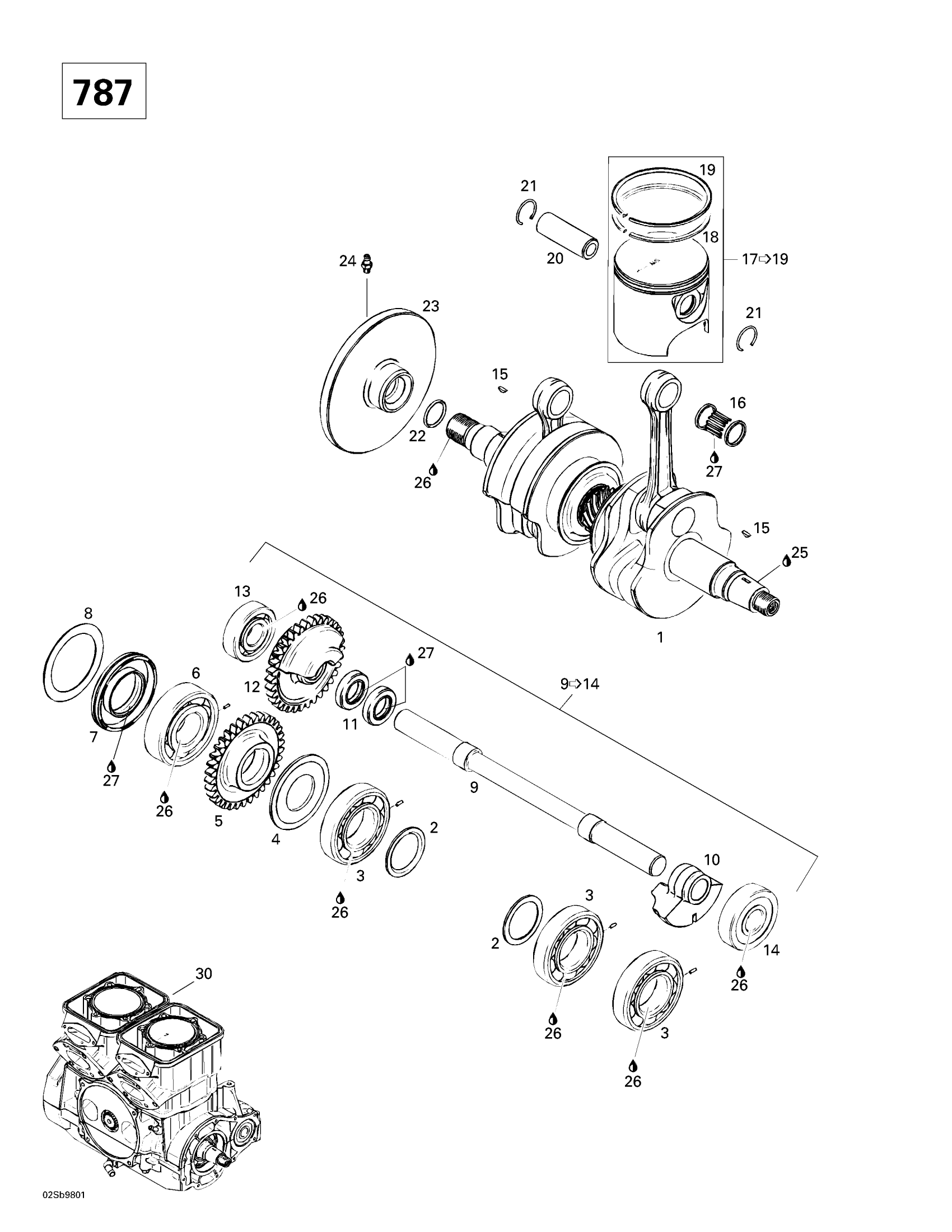

Sea-doo SPX, 5838/5839, 1998 Crankshaft And Pistons (787) Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 6.

290888102

Unavailable

2

Distance Ring

290827760

Unavailable

3

Ball Bearing

420832573

Unavailable

4

Labyrinth Washer

290926140

Unavailable

5

GEAR 43 TEETH - Call your local BRP dealership

290834315

Unavailable

6

Ball Bearing <<6306>>

290932579

Unavailable

7

OIL SEAL - Call your local BRP dealership

290830638

Unavailable

8

RETAINING SHIM - Call your local BRP dealership

290926060

Unavailable

9

Balance Shaft Ass'y | Includes 9 - 14.

290837406

Unavailable

9

BALANCED SHAFT 787 - Call your local BRP dealership

420837400

Unavailable

10

Balanced Mass

420818800

Unavailable

11

Oil Seal

420930392

Unavailable

12

Balanced Gear, 43 Teeth

420834305

Unavailable

13

Ball Bearing 6304E

290932095

Unavailable

14

BALL BEARING <<6304>> - Call your local BRP dealership

290932098

Unavailable

15

Woodruff Key

420246055

Unavailable

16

NEEDLE BEARING - Call your local BRP dealership This part replaces 290832420.

420832421

Unavailable

17

Piston with 2 Rings, 81.89 mm | Includes 17 - 19.

290887300

Unavailable

PISTON-ASSY. - Call your local BRP dealership This part replaces 290887301.

420887301

Unavailable

18

Rectangular Ring 82.00 mm

290815080

Unavailable

Rectangular Ring 82.25 mm

290815081

Unavailable

19

Semi-Trapez Ring 82.00 mm

290815100

Unavailable

Semi-Trapez Ring 82.25 mm

290815101

Unavailable

20

Piston Pin This part replaces 290916402.

420916404

Unavailable

21

Circlip

290845100

Unavailable

22

O-Ring

420430782

Unavailable

23

Clutch-Flywheel (Silver) | Includes 23 - 24.

290958057

Unavailable

24

GREASE FITTING - Call your local BRP dealership

290499113

Unavailable

25

Loctite 243, 10 ml

293800060

$20.77

26

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

27

Dow Corning 111, 150 g

413707000

$57.82

28

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886392

Unavailable

29

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886396

Unavailable

29

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886396

Unavailable

30

Short Block Ass'y (30.00.787.04)

420078704

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable
