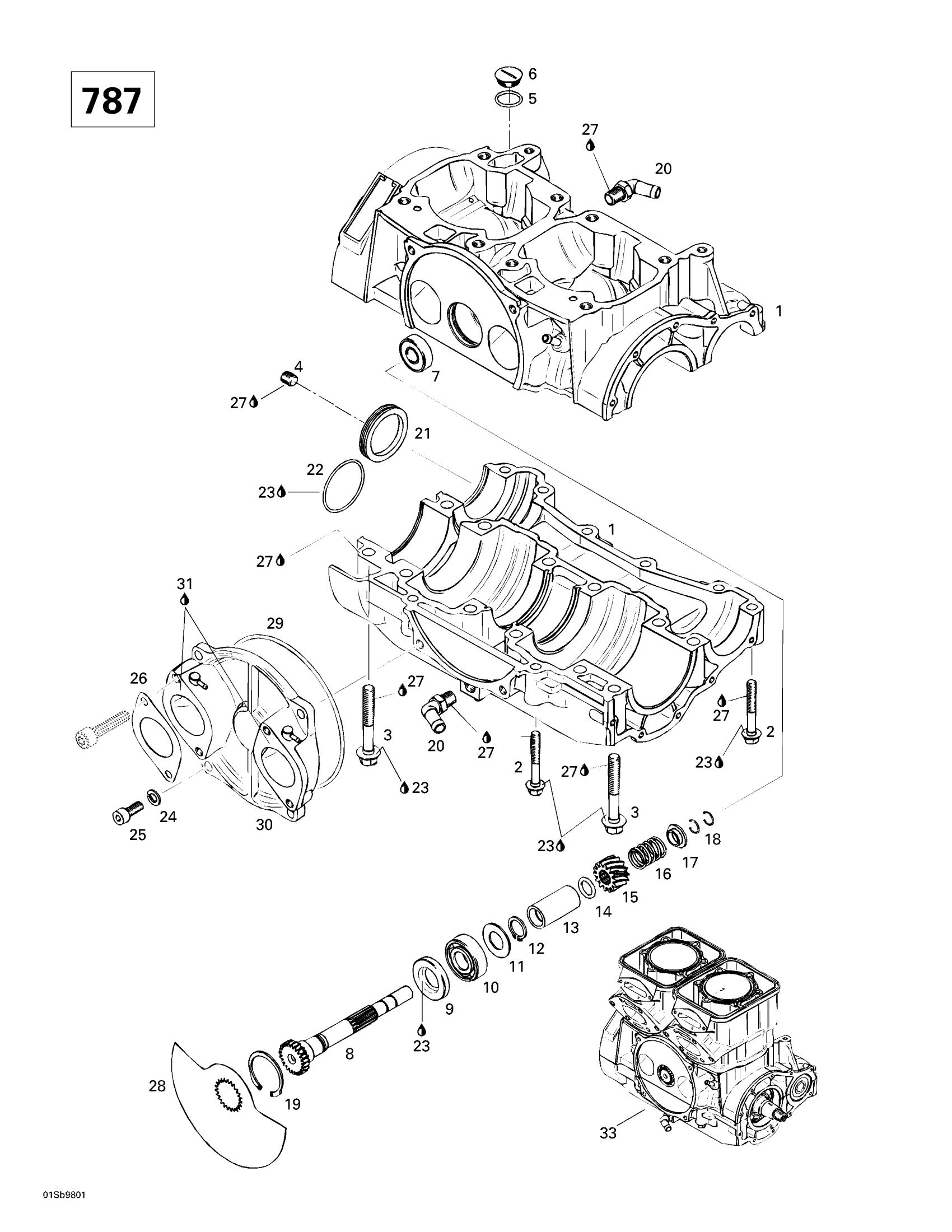

Sea-doo SPX, 5838/5839, 1998 Crankcase, Rotary Valve (787) Diagram

#

Description
Price

1

Crankcase Ass'y (787) (Silver) | Includes 1 - 7.

290888054

Unavailable

2

Hex. Flange Screw M8 x 55

290240328

Unavailable

3

Flange Screw M10 x 73,5

290941333

Unavailable

4

Drain Plug 1/8"

290240483

Unavailable

5

O-Ring

420250890

Unavailable

6

Drain Plug

420241801

Unavailable

7

Ball Bearing

420932797

Unavailable

8

Rotary Valve Shaft

290837352

Unavailable

9

OIL SEAL - Call your local BRP dealership

290930580

Unavailable

10

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

11

Shim

290227439

Unavailable

12

SNAP RING - Call your local BRP dealership

420845450

Unavailable

13

Distance Sleeve

290847287

Unavailable

14

O-Ring

293300024

Unavailable

15

Sprocket 14Th This part replaces 420935735.

420935736

Unavailable

16

Spring

290938810

Unavailable

17

Spring Seat

290827430

Unavailable

18

Circlip

290845160

Unavailable

19

Lock Ring

420945880

Unavailable

20

Angular Tube

420922242

Unavailable

21

BEARING COVER - Call your local BRP dealership This part replaces 290810745.

420810745

Unavailable

22

O-Ring

290230300

Unavailable

23

Dow Corning 111, 150 g

413707000

$57.82

24

Lock Spring Washer 8 mm, Stainless

234180602

Unavailable

25

Cylinder Screw M8 x 20

290240073

Unavailable

26

Gasket

204250035

Unavailable

27

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

28

ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.

420924502

Unavailable

29

O-RING - Call your local BRP dealership

290831767

Unavailable

30

Rotary Valve Cover

290811306

Unavailable

31

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

32

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886392

Unavailable

33

Short Block Ass'y (30.00.787.04)

420078704

Unavailable
