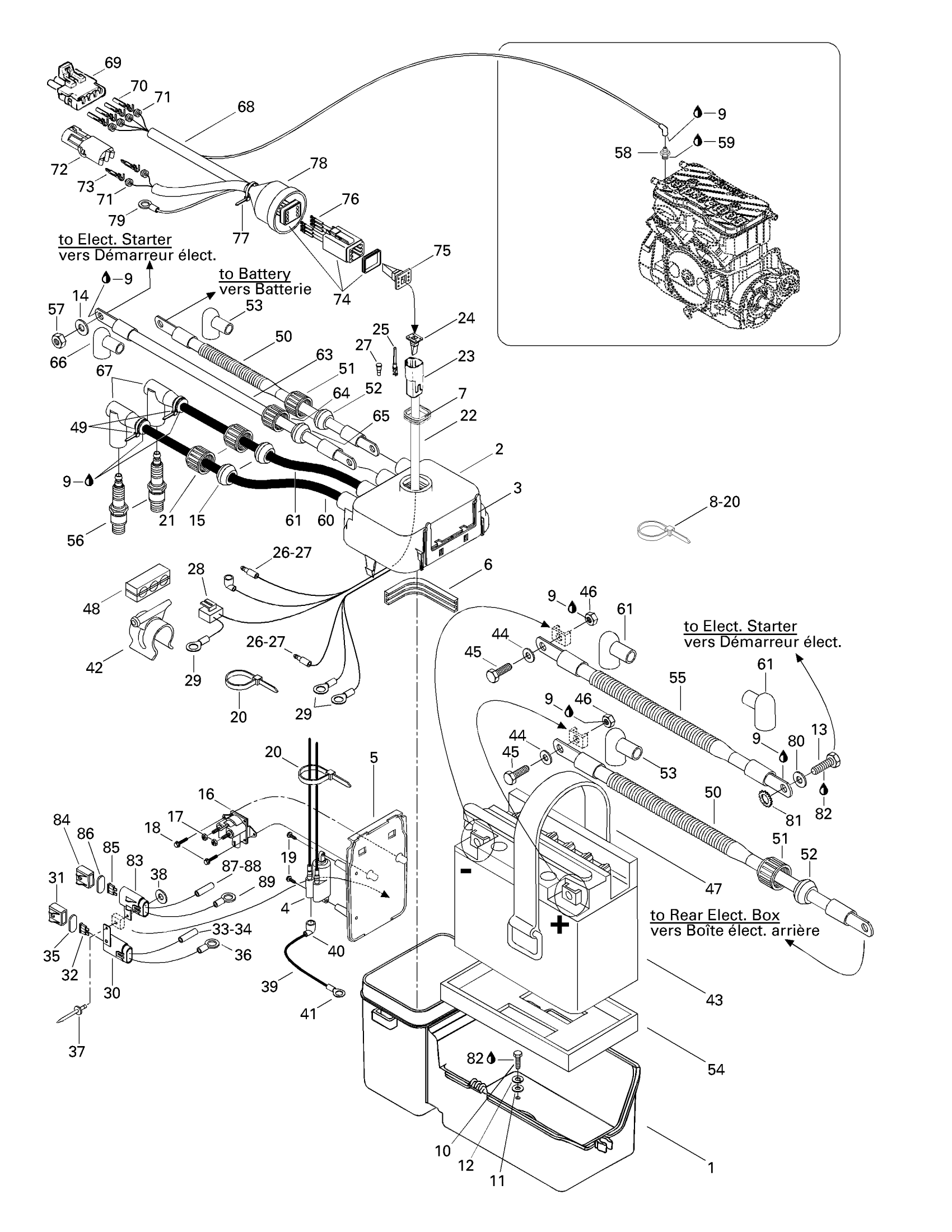

Sea-doo SPX, 5834-5661, 1997 Rear Electrical Box (SPX) Diagram

#

Description
Price

1

Base | GTI 5641.

278000901

Unavailable

2

Cover | GTI 5641.

278000825

Unavailable

3

Ground Plate

278000732

Unavailable

4

Ignition Coil

278000383

$99.49

5

Mounting Plate

278000826

Unavailable

6

GASKET - Call your local BRP dealership

278000440

Unavailable

7

Gasket

293200030

Unavailable

8

Tie Wrap 142 mm

293750002

$1.25

9

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

10

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

11

Flat Washer 5 mm, Stainless

234052600

$0.77

12

Helical Lock Washer M5

234151601

$1.15

13

Hex. Screw M8 x 16

215681660

Unavailable

14

Stainless Flat Washer M6

234061600

$0.33

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

$42.49

17

Hex. Elastic Stop Nut M6

232561600

$1.15

18

Hex. Flange Screw M6 X 10

210261040

$1.48

19

Self Tapping Screw M6.3 x 25

215462550

Unavailable

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

21

Electric Wire Cap

278000100

Unavailable

22

Rear Electric Box Harness | Includes 22 - 29.

278000663

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$19.99

24

Female Lock, 6 Circuits

278000735

$3.19

25

Male Terminal

278000631

$4.39

26

Male Terminal

278000230

$4.39

27

Insulated Sheath

278001008

$3.28

28

Female Terminal

278001114

$3.19

29

Ring Terminal

278000300

Unavailable

30

Fuse Harness 15 Amp | Includes 28 - 34.

278000665

Unavailable

31

Fuse Holder Cap

278001326

$7.69

32

Fuse, 15 Amperes

278000343

$3.28

33

Female Terminal | DS 650 X

278001009

$3.19

34

Insulated Sheath

278001007

$3.58

35

Cushion

278000805

$3.28

36

Ring Terminal

278000300

Unavailable

37

Pop Rivet 3/16"

293150014

$1.09

38

Flat Washer, Emhart

213200016

$0.72

39

Ground Harness | Includes 82 - 84.

278000664

Unavailable

40

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

41

Ring Terminal

278000300

Unavailable

42

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

43

Battery 19A | Includes 5 to 8

278001756

$153.36

44

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

45

Hex. Screw M6 X 16

207161644

$0.74

46

Hex. Nut M6

232061414

$0.53

47

STRAP - Call your local BRP dealership

293850031

Unavailable

48

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

49

Tie Wrap 142 mm

293750002

$1.25

50

Engine Harness | RX DI 5591/5592.

278000511

Unavailable

51

Electric Wire Cap

278000100

Unavailable

52

GROMMET - Call your local BRP dealership

278000098

Unavailable

53

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

54

Battery Lower Pad

278000776

Unavailable

55

Battery Ground Cable

278000512

Unavailable

56

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

57

Hex. Elastic Stop Nut M6

232561600

$1.15

58

Temperature Sensor

278000194

Unavailable

59

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

60

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

61

Spark Plug Wire 530 (MAG)

278000322

Unavailable

62

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

63

Starter Cable (Red) | Includes 63 - 66.

278000444

Unavailable

64

Electric Wire Cap

278000100

Unavailable

65

GROMMET - Call your local BRP dealership

278000098

Unavailable

66

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

67

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

68

Intermediate Harness | Includes 68 - 79. SPX 5661/5834.

278000662

Unavailable

69

Male Housing, 4 Circuits

278000395

$15.99

70

Female Terminal

278000223

$3.19

71

Wire Seal

278000218

$4.39

72

Female Housing, 2 Circuits

278000217

$9.59

73

Male Terminal | XT Models

278000222

$3.19

74

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

75

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

76

Female Terminal

278000632

$2.09

77

Tie Wrap 142 mm

293750002

$1.25

78

Switch Boot

570150700

Unavailable

79

Open Barrel

278000992

$2.21

80

Flat Washer M8, Stainless

234080600

$1.48

81

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

82

Loctite 271, 10 ml

293800005

$26.99

83

Fuse Harness 7.5 Amp | Includes 83 - 89.

278000666

Unavailable

84

Fuse Holder Cap

278001326

$7.69

85

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

86

Cushion

278000805

$3.28

87

Female Terminal | DS 650 X

278001009

$3.19

88

Insulated Sheath

278001007

$3.58

89

Ring Terminal

278000300

Unavailable
