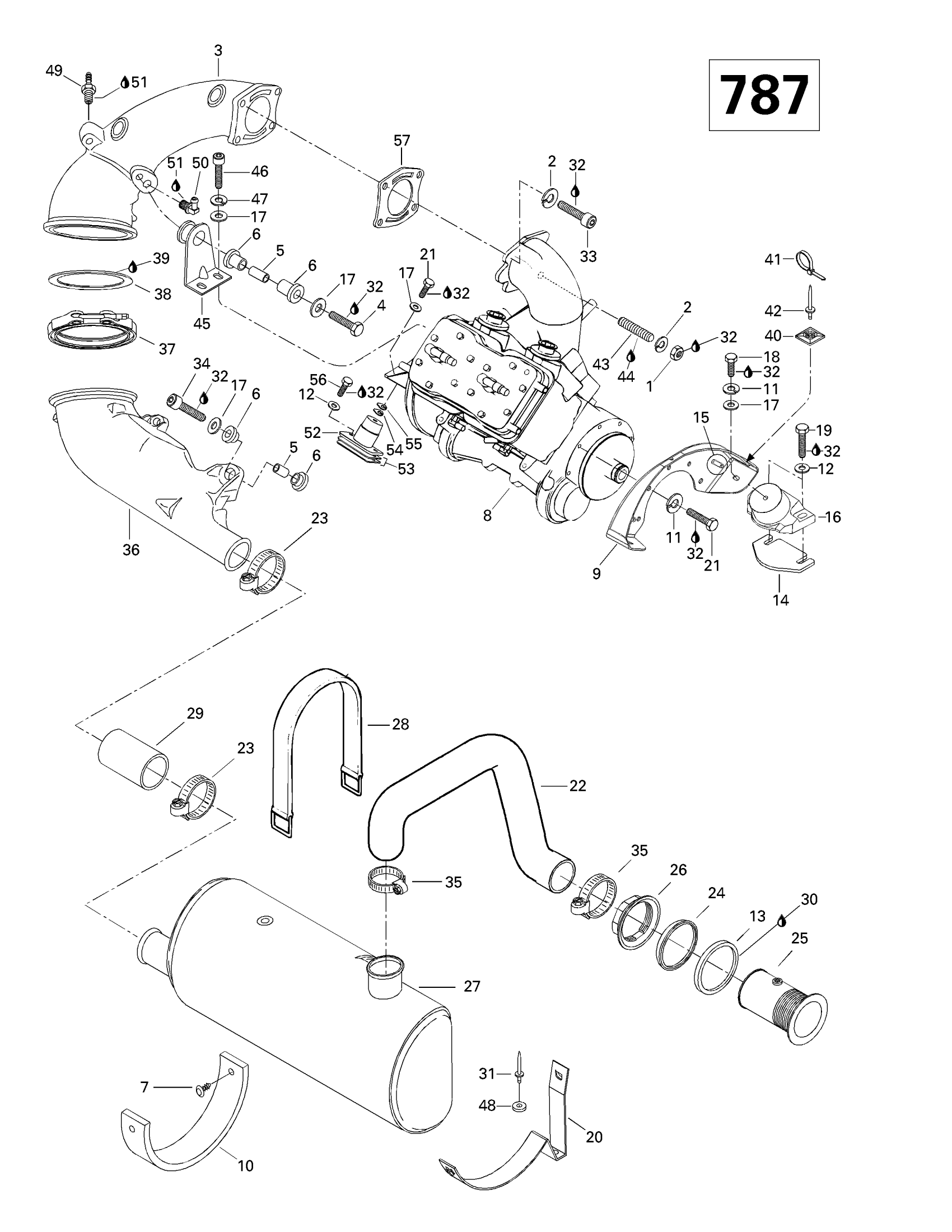

Sea-doo SPX, 5834-5661, 1997 Engine Support And Muffler (787) Diagram

#

Description
Price

1

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

2

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

3

Head Pipe Ass'y | Includes 6 - 8.

274000161

Unavailable

4

Hex. Screw M8 X 40

207084060

$2.22

5

Bushing

274000254

$13.17

6

RUBBER BUSHING - Call your local BRP dealership

293830036

$14.23

7

Black, Dart

293730011

$0.99

8

Rotax Engine 787 (White)

270000304

Unavailable

9

Engine Support

270000219

Unavailable

10

Rubber Pad

293830055

Unavailable

11

Lock Washer 8 mm, Stainless

234181601

$0.55

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

GASKET - Call your local BRP dealership

293250041

Unavailable

14

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

16

Rubber Mount

270000296

Unavailable

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

Hex. Screw M8 x 16

215681660

Unavailable

19

Hex. Screw M8 X 40

207184060

$2.22

20

Muffler Support

274000352

Unavailable

21

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

22

Formed Hose | SPX 5661/5834.

274000355

Unavailable

23

Tridon Clamp

293650036

$7.49

24

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

25

EXHAUST OUTLET - Call your local BRP dealership

274000222

Unavailable

26

Nut 72 mm

274000224

$16.34

27

Muffler

274000494

Unavailable

28

Retainer Strap

293850097

$11.64

29

Exhaust Hose

274000170

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

Avdel Rivet 3/16"

293150037

$0.56

32

Loctite 243, 10 ml

293800060

$21.49

33

Allen Screw M10 x 30

215903060

Unavailable

34

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

35

Tridon Clamp

293650064

$8.29

36

Cone Pipe ass'y

274000210

Unavailable

37

Clamp-Exhaust

274000357

Unavailable

38

Brass Washer

274000169

Unavailable

39

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

40

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

41

Tie Wrap 94 mm | 4X4

293750001

$1.03

42

Rivet 1/8"

293150016

$0.40

43

Stud M10

211300017

Unavailable

44

Loctite 271, 10 ml

293800005

$26.99

45

Pipe Support

274000489

Unavailable

46

Allen Screw M8 x 20

215982060

Unavailable

47

Lock Washer 8 mm, Stainless

234181601

$0.55

48

Flat Washer 5 mm, Stainless

234052600

$0.77

49

Male Connector | With Catalyst

293710021

$14.23

50

Elbow Fitting 90°

293710048

Unavailable

51

Was 293800013 Loctite 56765

219704454

$65.99

52

Rubber Mount

270000297

Unavailable

53

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

54

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

55

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

56

Hex. Screw M8 X 30

207183060

$1.58

57

Gasket

290931500

Unavailable
