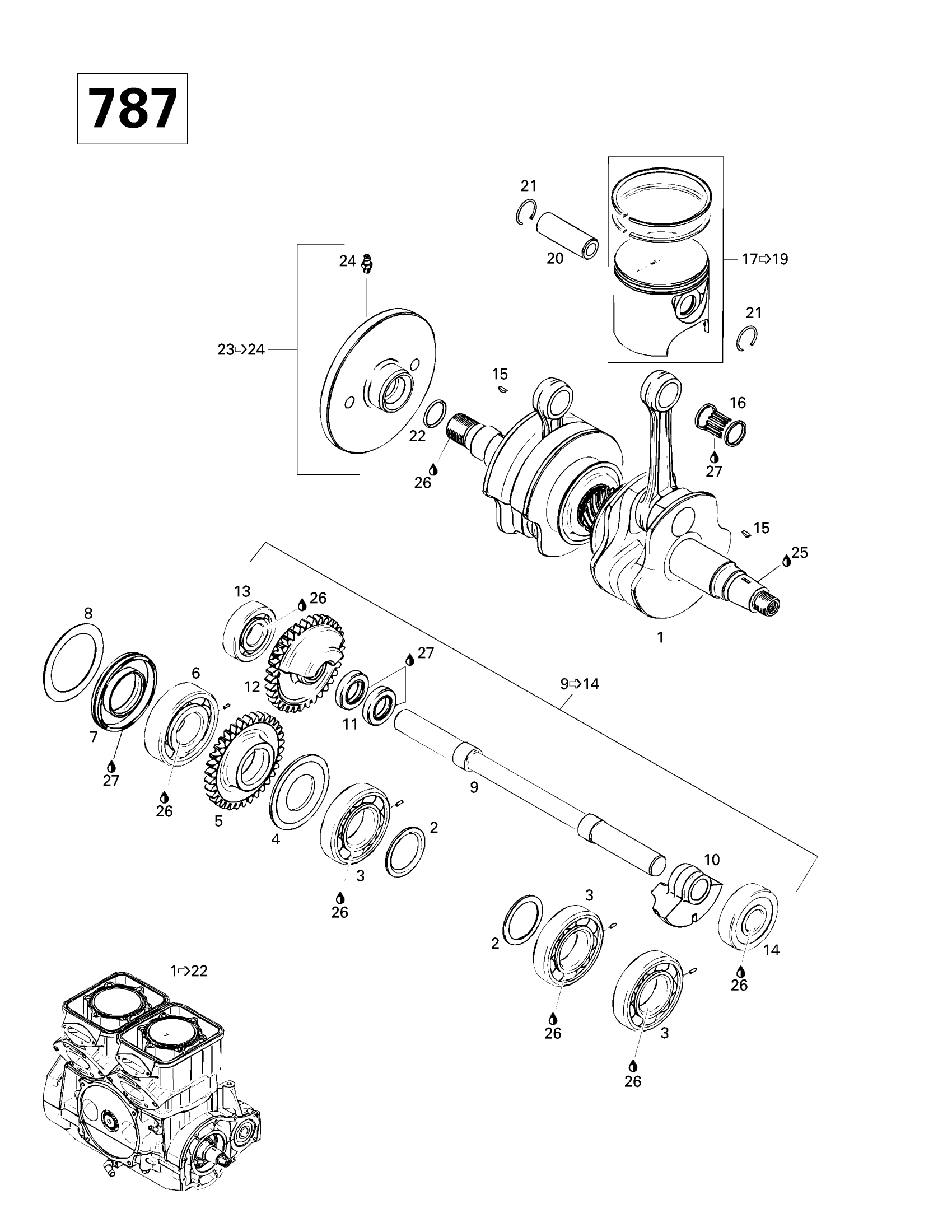

Sea-doo SPX, 5834-5661, 1997 Crankshaft And Pistons (787) Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 23.

290881527

Unavailable

1

Crankshaft Ass'y | Includes 1 - 6.

290888100

Unavailable

2

Distance Ring

290827760

Unavailable

3

Ball Bearing

420832573

$44.49

4

Labyrinth Washer

290926140

Unavailable

5

GEAR 43 TEETH - Call your local BRP dealership

290834315

Unavailable

6

Ball Bearing <<6306>>

290932577

Unavailable

7

OIL SEAL - Call your local BRP dealership

290830638

Unavailable

8

RETAINING SHIM - Call your local BRP dealership

290926060

Unavailable

9

Shaft Balance Ass'y | Includes 9 - 14.

290837348

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Ball Bearing 6304E

290932095

Unavailable

14

BALL BEARING <<6304>> - Call your local BRP dealership

290932098

Unavailable

15

Woodruff Key

420246055

$2.43

16

NEEDLE BEARING - Call your local BRP dealership This part replaces 290832420.

420832421

Unavailable

17

Piston with 2 Rings, 81.89 mm | Includes 17 - 19.

290887300

Unavailable

PISTON-ASSY. - Call your local BRP dealership This part replaces 290887301.

420887301

Unavailable

18

Rectangular Ring 82.00 mm

290815080

Unavailable

Rectangular Ring 82.25 mm

290815081

Unavailable

19

Semi-Trapez Ring 82.00 mm

290815100

Unavailable

Semi-Trapez Ring 82.25 mm

290815101

Unavailable

20

Piston Pin This part replaces 290916402.

420916404

$28.49

21

Circlip

290845100

Unavailable

22

O-Ring

420430782

$5.39

23

Clutch-Flywheel | Includes 23 - 24.

290958056

Unavailable

24

GREASE FITTING - Call your local BRP dealership

290499113

Unavailable

25

Loctite 243, 10 ml

293800060

$21.49

26

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

27

Dow Corning 111, 150 g

413707000

$59.99

28

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886390

Unavailable

29

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886395

Unavailable

30

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
