01- Crankcase, Rotary Valve (787)

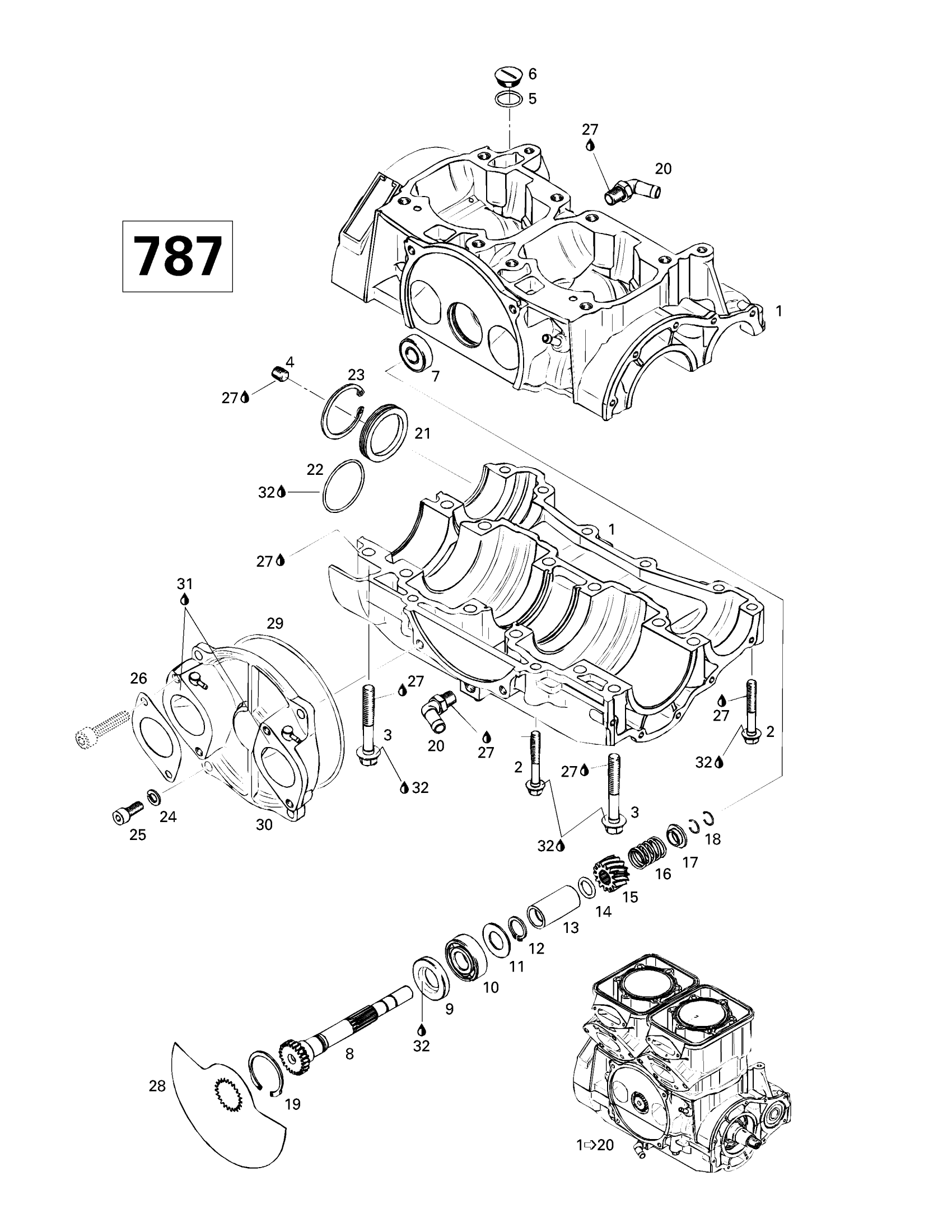

Sea-doo SPX, 5834-5661, 1997 01- Crankcase, Rotary Valve (787) Diagram
#
Description
Price
1
Short Block Ass'y | Includes 1 - 23.
290881527
Unavailable
1
Crankcase Ass'y <<787>>(White) | Includes 1 - 6.
290887239
Unavailable
2
Hex. Flange Screw M8 x 55
290240328
Unavailable
3
Flange Screw M10 x 73,5
290941333
Unavailable
4
Drain Plug 1/8"
290240483
Unavailable
5
O-Ring
420250890
$3.06
6
Drain Plug
420241801
$7.41
7
Ball Bearing
420932797
$19.99
8
Rotary Valve Shaft
290837351
Unavailable
9
OIL SEAL - Call your local BRP dealership
290930580
Unavailable
10
BALL BEARING - Call your local BRP dealership
293350051
Unavailable
11
Shim
290227439
Unavailable
12
SNAP RING - Call your local BRP dealership
420845450
Unavailable
13
Distance Sleeve
290847287
Unavailable
14
O-Ring
293300024
$8.57
15
Sprocket 14Th This part replaces 420935735.
420935736
$88.99
16
Spring
290938810
Unavailable
17
Spring Seat
290827430
Unavailable
18
Circlip
290845160
Unavailable
19
Lock Ring
420945880
$4.44
20
Angular Tube
420922242
$14.83
21
BEARING COVER - Call your local BRP dealership This part replaces 290810745.
420810745
Unavailable
22
O-Ring
290230300
Unavailable
23
BEARING COVER - Call your local BRP dealership This part replaces 290810745.
420810745
Unavailable
24
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
25
Cylinder Screw M8 x 20
290240073
Unavailable
26
Gasket This part replaces 293250070.
293250134
$13.76
27
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
28
ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.
420924502
Unavailable
29
O-Ring
290831765
Unavailable
30
Rotary Valve Cover
290810738
Unavailable
31
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
32
Dow Corning 111, 150 g
413707000
$59.99
33
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886390
Unavailable
