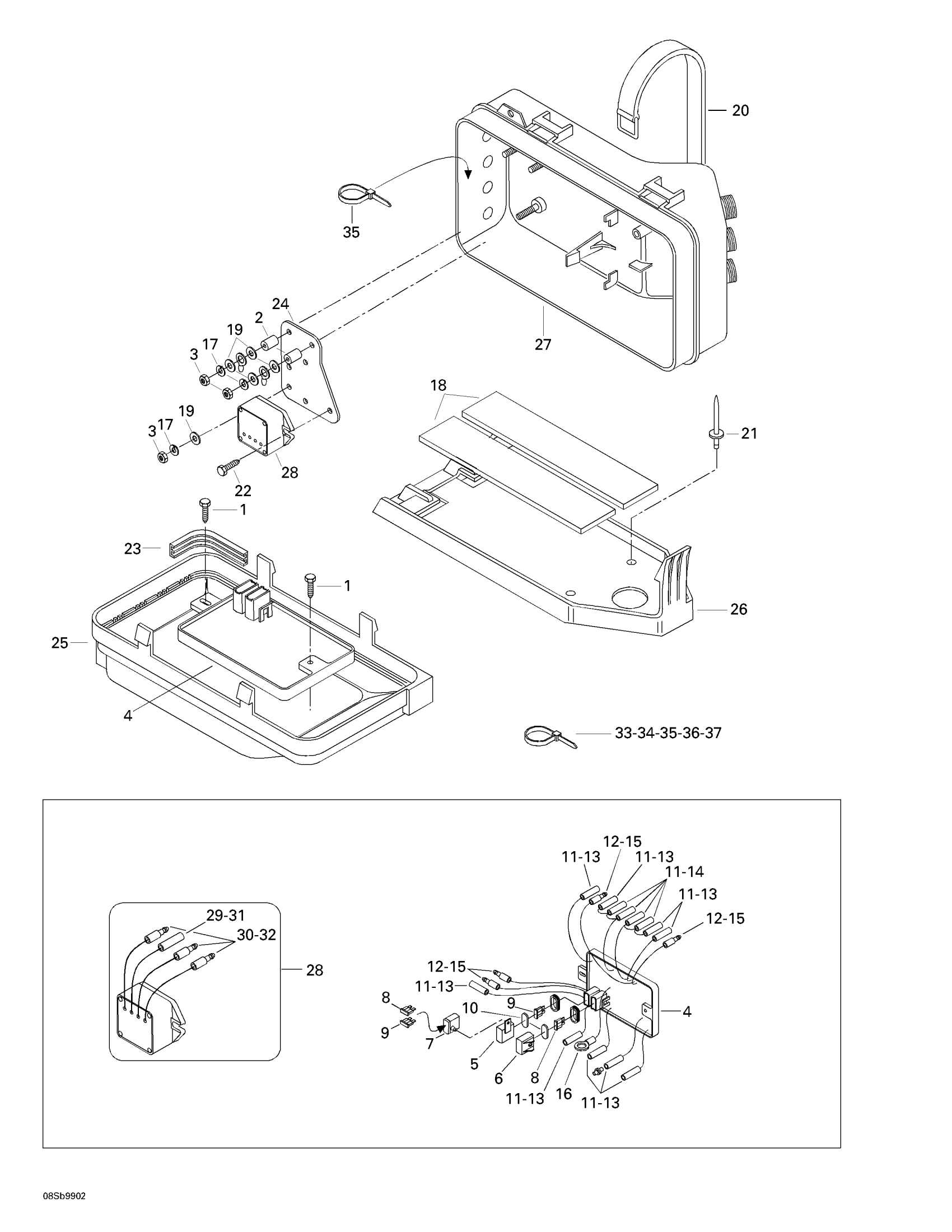

Sea-doo SPX, 5636/5828, 1999 10- Electrical Box Diagram

#

Description
Price

1

Hex. Screw M6 X 16

209561640

Unavailable

2

Spacer

278000644

Unavailable

3

Hex. Nut M6

232061600

$1.15

4

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 4 - 16.

278001255

Unavailable

5

Fuse Holder Cap

278001326

$7.69

6

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

7

Fuse Holder

278000379

Unavailable

8

Fuse, 5 Amperes | CE

278000344

$3.28

9

Fuse, 15 Amperes

278000343

$3.28

10

Cushion

278000805

$3.28

11

Female Terminal | DS 650 X

278001009

$3.19

12

Male Terminal

278000230

$4.39

13

Insulated Sheath

278001007

$3.58

14

Insulated Sheath

278000770

$7.90

15

Insulated Sheath

278001008

$3.28

16

Open Barrel

278000992

$2.21

17

Lock Washer Helical M6

234161601

$1.15

18

Rubber Strip

293830012

Unavailable

19

Stainless Flat Washer M6

234061600

$0.33

20

Retainer Strap

293850097

$11.64

21

Avdel Rivet 3/16"

293150037

$0.56

22

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

23

Gasket

278000181

Unavailable

24

Mounting Plate

278000615

Unavailable

25

Electric Box Cover

278001082

Unavailable

26

Electric Box Support

278001119

Unavailable

27

Electric Box Base

278001085

Unavailable

28

Rectifier Ass'y | Includes 14 - 18.

278000443

Unavailable

29

Female Terminal | DS 650 X

278001009

$3.19

30

Male Terminal

278000230

$4.39

31

Insulated Sheath

278001007

$3.58

32

Insulated Sheath

278001008

$3.28

33

Tie Wrap 94 mm | 4X4

293750001

$1.03

34

Tie Wrap 142 mm

293750002

$1.25

35

Tie-Rap 173 mm

293750009

$1.04

36

Tie-Rap 180 mm

414115200

$0.11

37

Tie Wrap 368 mm

293750008

$1.04
