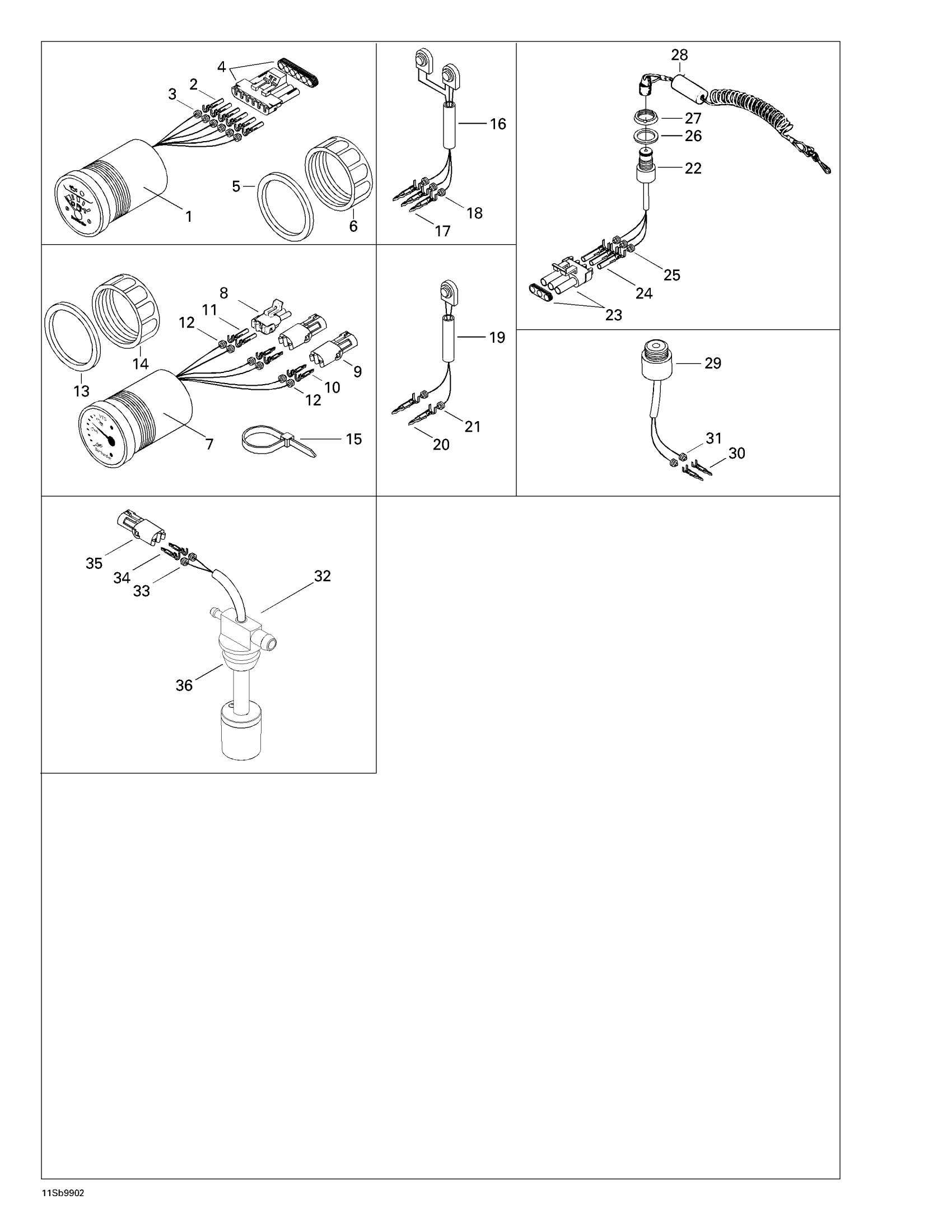

Sea-doo SPX, 5636/5828, 1999 Electrical Accessories Diagram

#

Description
Price

1

Oil/Fuel Level Gauge | Includes 7 - 10.

278001338

Unavailable

2

Female Terminal

278000223

$3.19

3

Wire Seal

278000218

$4.39

4

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

5

Gasket

278000259

Unavailable

6

Gauge Nut

278000085

Unavailable

7

VTS Gauge | Includes 6 - 11.

278001339

Unavailable

8

Male Connector, 2 Circuits

278000220

$15.49

9

Female Housing, 2 Circuits

278000217

$9.59

10

Male Terminal | XT Models

278000222

$3.19

11

Female Terminal

278000223

$3.19

12

Wire Seal

278000218

$4.39

13

Gasket

278000259

Unavailable

14

Gauge Nut

278000085

Unavailable

15

Tie-Rap 180 mm

414115200

$0.11

16

VTS Switch Ass'y | Includes 20 - 22.

278001354

Unavailable

17

Male Terminal | XT Models

278000222

$3.19

18

Wire Seal

278000218

$4.39

19

SWITCH ASS. START/STOP - Call your local BRP dealership | Includes 71 - 74.

278001353

Unavailable

20

Male Terminal | XT Models

278000222

$3.19

21

Wire Seal

278000218

$4.39

22

Safety Switch | Includes 22 - 25.

278000830

Unavailable

23

Male Housing, 3 Circuits

278000273

$9.59

24

Female Terminal

278000223

$3.19

25

Wire Seal

278000218

$4.39

26

WASHER - Call your local BRP dealership

211200027

Unavailable

27

Safety Nut (DESS Switch)

278002963

$3.28

28

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

29

BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3

278000881

Unavailable

30

Male Terminal | XT Models

278000222

$3.19

31

Wire Seal

278000218

$4.39

32

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

33

Wire Seal

278000218

$4.39

34

Male Terminal | XT Models

278000222

$3.19

35

Female Housing, 2 Circuits

278000217

$9.59

36

Grommet

293720008

$14.75
