Description

Price

1

Seat Ass'y | Includes 1 - 20.

269000518

Unavailable

1

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

2

Screw KB35 x 10

241331060

Unavailable

3

Protection Plate

269000173

Unavailable

4

Seat Cover

269000567

Unavailable

5

Seat Base Ass'y | Includes 5 - 7.

295500301

Unavailable

6

Was 293200017 Neoprene Seal

219704365

$149.99

7

Was 293200017 Neoprene Seal

219704365

$149.99

8

Nut Welded, M6

293100003

$9.12

9

Base Keeper

291000174

$19.99

10

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

11

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

12

Stainless Flat Washer M6

234061600

$0.33

13

Latch Ass'y

269700109

$24.99

14

Staple

293730005

Unavailable

15

Latch Ass'y

269700109

$24.99

16

SPACER - Call your local BRP dealership

291000532

Unavailable

17

Seat Foam

269000168

Unavailable

18

Latch Ass'y

269700109

$24.99

19

Latch Spring

269700017

$9.19

20

Corner Seat RH (Black)

269000568

Unavailable

Corner Seat LH (Black)

269000569

Unavailable

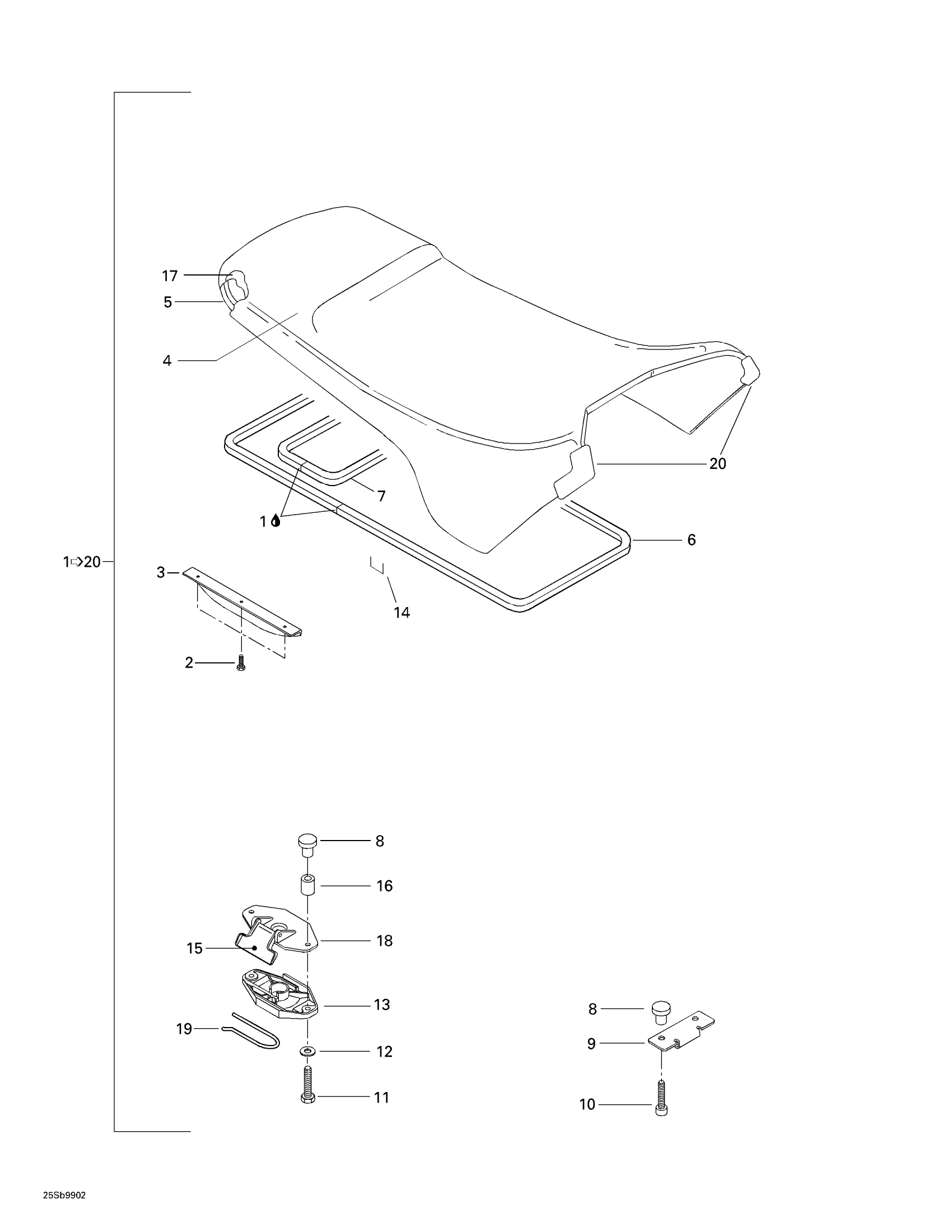

Sea-doo SPX, 5636/5828, 1999 09- Seat And Engine Cover Diagram

Seat Ass'y | Includes 1 - 20.

Était Was 413705800 Loctite 414 , 29.5 c.c

Screw KB35 x 10

Protection Plate

Seat Cover

Seat Base Ass'y | Includes 5 - 7.

Was 293200017 Neoprene Seal

Was 293200017 Neoprene Seal

Nut Welded, M6

Base Keeper

Socket Head Screw M6 X 12, Scotch Grip

Screw Hex. M6 X 35, Scotch Grip

Stainless Flat Washer M6

Latch Ass'y

Staple

Latch Ass'y

SPACER - Call your local BRP dealership

Seat Foam

Latch Ass'y

Latch Spring

Corner Seat RH (Black)

Corner Seat LH (Black)
