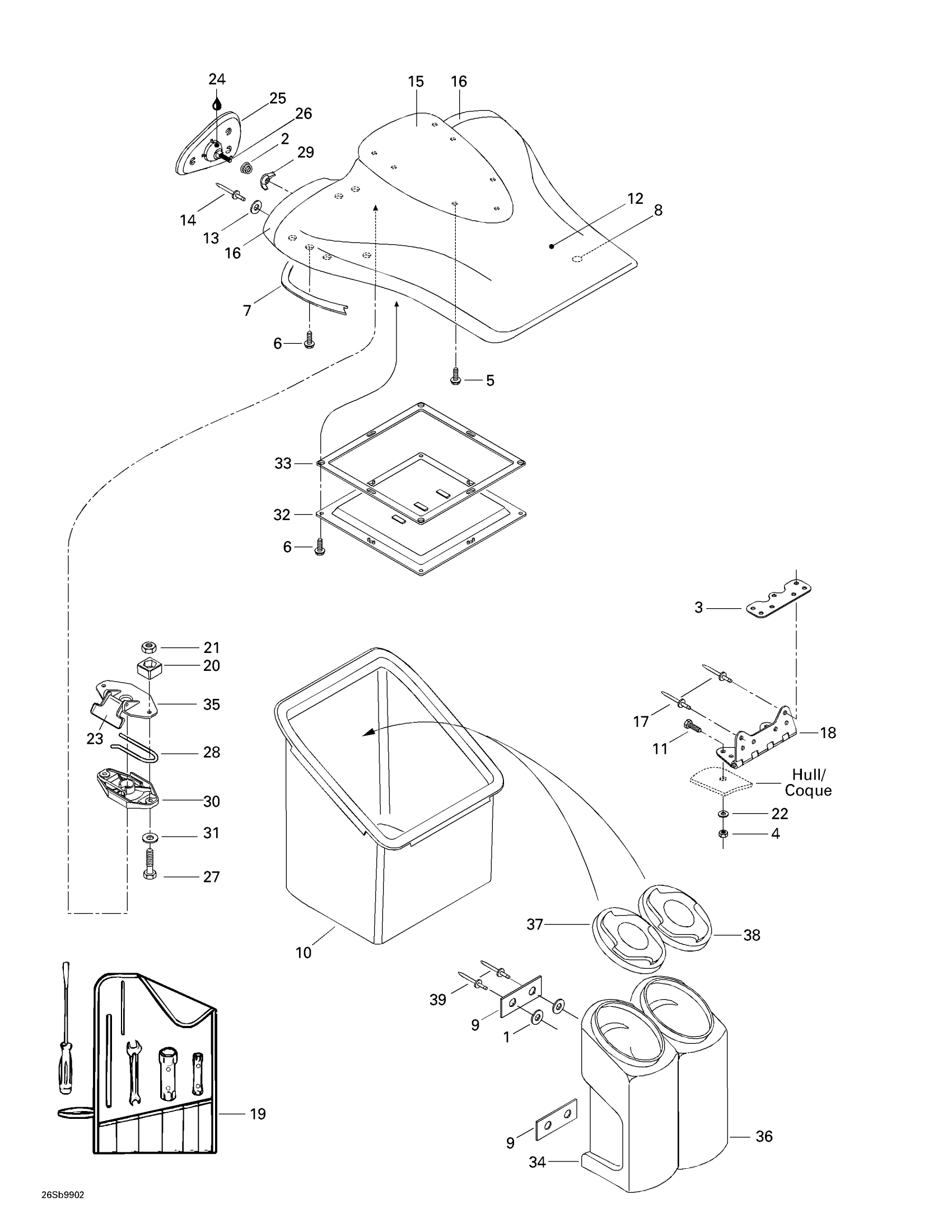

Sea-doo SPX, 5636/5828, 1999 Front Storage Compartment Diagram

#

Description
Price

1

Flat Washer M3, Stainless

234032600

$0.55

2

Mirror Spring

269500082

Unavailable

3

Retainer Plate

269500107

Unavailable

4

Hex. Elastic Nut M5 | X

232551600

$1.15

5

Screw K40 X 10

241140060

$1.48

6

Hex. Flange Screw K40 X 16

241141660

$1.48

7

Seal Tray 1000Mm Long

219704368

$13.99

8

Storage Cover (Lower)

269500669

Unavailable

9

GASKET - Call your local BRP dealership

293250037

Unavailable

10

STORAGE TRAY - Call your local BRP dealership

269501940

$53.99

11

Hex. Screw M5 X 20

207152060

$1.47

12

Storage Cover (Upper)

269500668

Unavailable

13

Flat Washer, Emhart

213200016

$0.72

14

Pop Rivet 3/16"

293150008

$0.50

15

DEFLECTOR (YELLOW) - Call your local BRP dealership

269500171

Unavailable

16

RH Mirror Housing

269500665

Unavailable

LH Mirror Housing

269500666

Unavailable

17

Pop Rivet 3/16"

293150039

$1.49

18

Stainless Hinge

269500672

Unavailable

19

Tool Kit

295000066

Unavailable

20

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

21

Hex. Elastic Stop Nut M6

232561600

$1.15

22

Flat Washer M5, Stainless

234051600

$0.77

23

Latch Ass'y

269700109

$24.99

24

Synthetic Grease, 400 G

293550010

Unavailable

25

RH Mirror | Includes 3 to 4

269500055

Unavailable

LH Mirror | Includes 3 to 4

269500056

Unavailable

26

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

27

Hex. Screw M6 X 35

207163560

$1.49

28

Latch Spring

269700017

$9.19

29

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

30

Latch Ass'y

269700109

$24.99

31

Stainless Flat Washer M6

234061600

$0.33

32

Access Cover Ass'y | Includes 32 - 33.

269500670

Unavailable

33

TRAY SEAL - Call your local BRP dealership

293200033

Unavailable

34

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

35

Latch Ass'y

269700109

$24.99

36

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

37

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

38

Storage Cap

269500604

Unavailable

39

Pop Rivet 1/8''

293150033

Unavailable
