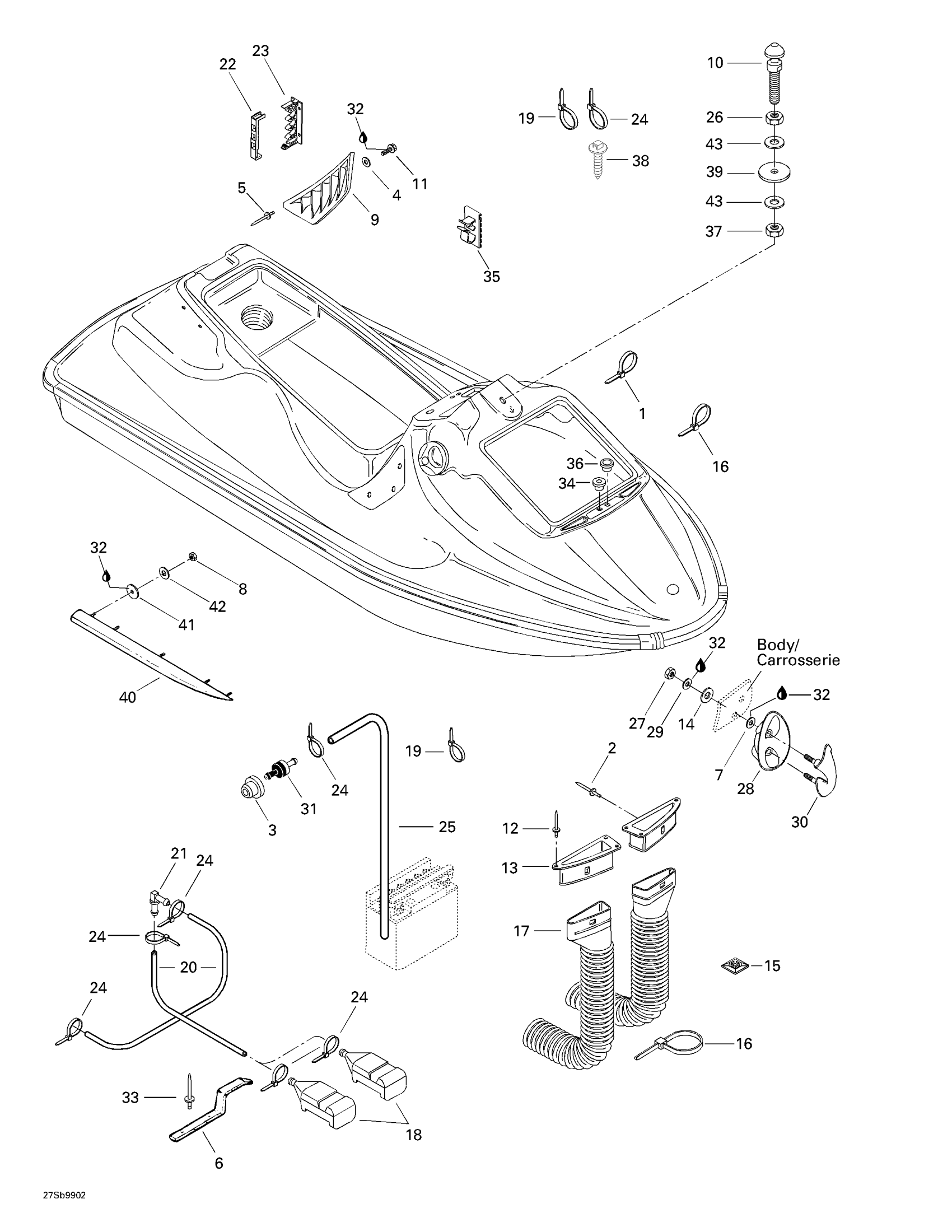

Sea-doo SPX, 5636/5828, 1999 09- Body Diagram
#
1
Tie-Rap 180 mm
414115200
$0.11
2
RIVET_BULBEX 4.0 X 21.2 - Call your local BRP dealership
293150034
Unavailable
3
Grommet
293720029
$1.59
4
Flat Washer 4 mm, Stainless
234042600
$1.15
5
Pop Rivet 1/8
293150041
Unavailable
6
RH Spring Clip
292000397
Unavailable
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
7
Stainless, Flat Washer 8 mm
234081600
$0.55
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
RH Intake Grill (Black)
291001257
Unavailable
LH Intake Grill (Black)
291000701
Unavailable
10
LATCH STUD - Call your local BRP dealership
291000689
Unavailable
11
Hex. Flange Screw K40 X 16
241141660
$1.48
12
Pop Rivet 1/8”
293150015
$0.40
13
LH Adapter Vent
291000381
Unavailable
RH Adapter Vent
291000380
Unavailable
14
Rubber Washer
293830037
$2.68
15
Tie Wrap Mount (5636 Model)
293750004
Unavailable
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
16
Tie Wrap 368 mm
293750008
$1.04
17
LH Tube Vent
291000382
Unavailable
RH Tube Vent
291000383
Unavailable
18
Screen Bailer
292000079
Unavailable
19
Tie Wrap 142 mm
293750002
$1.25
20
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
21
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
22
Tie Mount Top
293750012
Unavailable
23
Tie Mount
293750013
Unavailable
24
Tie Wrap 94 mm | 4X4
293750001
$1.03
25
Was 415110000 Polyurethane Hose 5.2 mm
219704414
$121.99
26
Hex. Jam Nut M10
232100600
$2.22
27
Hex. Elastic Nut M8
232581600
$1.48
28
Black Shell
292001837
$20.99
29
Flat Washer 8 mm, Stainless
234082600
$2.43
30
Eye-Bow (Black) This part replaces 292000708.
292000452
$42.99
31
CHECK VALVE - Call your local BRP dealership This part replaces 275500167.
275500499
Unavailable
32
Silicone Sealant 51388, 300 ml
296000309
$36.99
33
Avdel Rivet 3/16"
293150037
$0.56
34
GROMMET - Call your local BRP dealership
293720015
Unavailable
35
TIE CLAMP - Call your local BRP dealership
293750005
Unavailable
36
GROMMET - Call your local BRP dealership
293720017
Unavailable
37
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
38
Mount Dart
293730040
$1.04
39
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
40
RH Sponson (Black)
292000229
Unavailable
LH SPONSON (BLACK) - Call your local BRP dealership
292000230
Unavailable
41
GASKET - Call your local BRP dealership
293250026
Unavailable
42
Flat Washer M6, Stainless
234062600
$0.77
43
Flat Washer 10 mm, Stainless
234002600
$2.22
