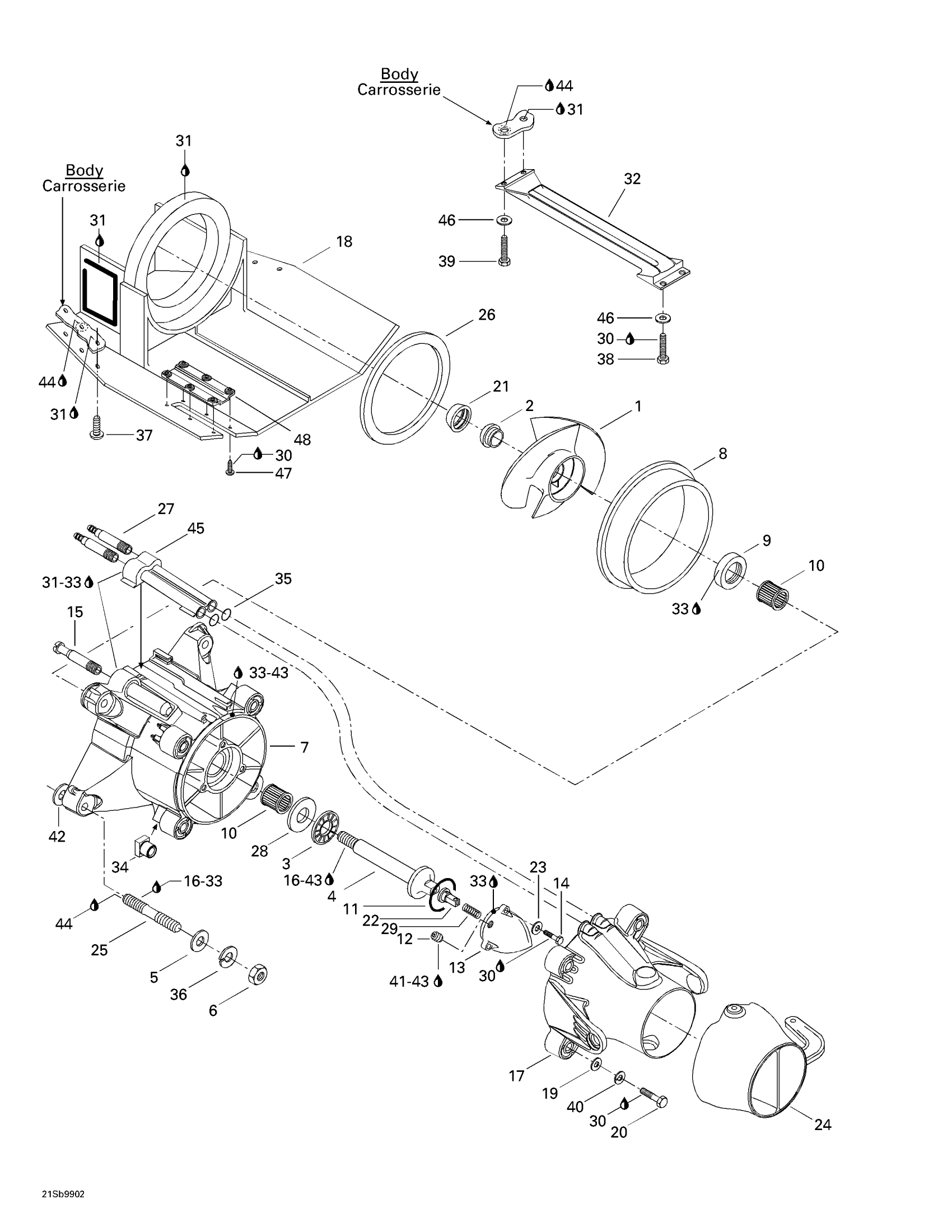

Sea-doo SPX, 5636/5828, 1999 05- Propulsion System Diagram

#

Description
Price

1

STAINLESS STEEL IMPELLER ASS'Y - Call your local BRP dealership

271000828

Unavailable

2

Impeller Boot

271000516

$9.59

3

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

4

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

5

Flat Washer 10 mm, Stainless

234001600

$1.15

6

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

7

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 7 - 10.

295500429

Unavailable

8

Wear Ring

271000290

$58.49

9

Oil Seal

267000094

$22.49

10

Needle Bearing

293350017

$27.99

11

O-Ring

293300011

$8.64

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

13

IMPELLER COVER - Call your local BRP dealership

271000670

Unavailable

14

Hex. Screw M5 X 20

207152060

$1.47

15

FITTING-PUMP - Call your local BRP dealership

293700019

Unavailable

16

Loctite 271, 10 ml

293800005

$26.99

17

Venturi Ass'y

271000512

$211.99

18

Shoe (Black)

271000325190

Unavailable

19

Flat Washer 8 mm, Stainless

234082600

$2.43

20

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.90

21

Impeller Ring

271000517

$9.59

22

PUSHER - Call your local BRP dealership

271000978

Unavailable

23

Flat Washer M5, Stainless

234051600

$0.77

24

Steering Nozzle

271000746

$209.99

25

STUD-M10 - Call your local BRP dealership

211300015

Unavailable

26

Seal Neoprene

293200050

Unavailable

27

BAILER FITTING - Call your local BRP dealership

293700017

Unavailable

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

SPRING - Call your local BRP dealership

271000973

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

Instant Gasket

219701421

$51.99

32

INLET GRATE - Call your local BRP dealership

271000466

Unavailable

33

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

34

Square Nut M8

211100033

$17.99

35

O-Ring

293300013

$8.18

36

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

37

Phillips Screw M6 X 25

208562560

$2.32

38

Hex. Screw M6 X 16

207161660

$1.59

39

Hex. Forming Screw M6 X 20

207162060

$1.29

40

Lock Washer 8 mm, Stainless

234181601

$0.55

41

Was 293800013 Loctite 56765

219704454

$65.99

42

Shim 0.3 mm

272000053

$11.49

43

Was 293800041 Loctite Primer 7649

219704458

$39.99

44

Silicone Sealant 51388, 300 ml

296000309

$36.99

45

Water Outlet

271000972

Unavailable

46

Stainless Flat Washer M6

234061600

$0.33

47

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

48

Ride Shoe Cap

291000446

Unavailable
