05- Electric Trim

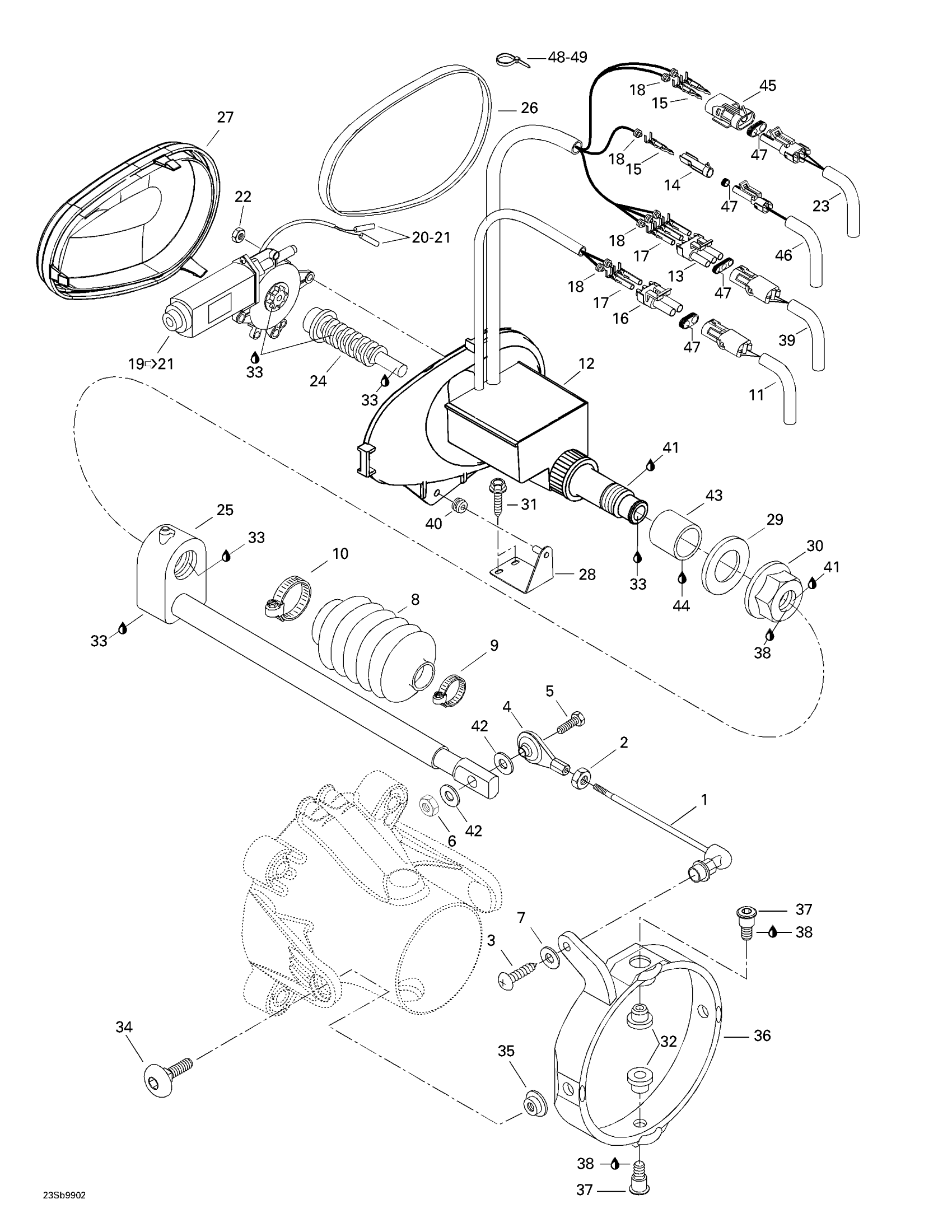

Sea-doo SPX, 5636/5828, 1999 05- Electric Trim Diagram
#
1
Moulding Rod
271000555
Unavailable
2
Hex. Nut
212100005
$1.35
3
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
4
BALL JOINT - Call your local BRP dealership
277000153
Unavailable
5
Hex. Screw M6 X 35
207063560
$2.22
6
Hex. Elastic Stop Nut M6
232561600
$1.15
7
Flat Washer 5 mm, Stainless
234052600
$0.77
8
Protector Hose
271000459
$17.49
9
Clamp
293650082
$3.99
10
CLAMP - Call your local BRP dealership
293650083
Unavailable
11
Intermediate Harness
278001207
Unavailable
12
VTS Housing
278000668
Unavailable
13
Male Housing, 3 Circuits
278000273
$9.59
14
Female Housing, 1 Circuit
278000161
$9.59
15
Male Terminal | XT Models
278000222
$3.19
16
Male Connector, 2 Circuits
278000220
$15.49
17
Female Terminal
278000223
$3.19
18
Wire Seal
278000218
$4.39
19
Windshield Motor
278002579
$234.99
20
Insulation Sheath
278000231
$5.08
21
Male Terminal
278000230
$4.39
22
Hex. Elastic Stop Nut M6
232561600
$1.15
23
6 Circuits Harness
278000827
Unavailable
24
Worm Screw
278000428
$14.30
25
Sliding Block Ass’y
278001698
$43.99
26
GASKET - Call your local BRP dealership
293200027
Unavailable
27
V.T.S. COVER - Call your local BRP dealership
278000595
Unavailable
28
V.T.S. SUPPORT ASSY - Call your local BRP dealership
292000250
Unavailable
29
SEAL WASHER - Call your local BRP dealership
293830027
Unavailable
30
SPECIAL NUT M27 - Call your local BRP dealership
211100020
Unavailable
31
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
32
Venturi Bushing
293900007
$5.45
33
Synthetic Grease, 400 G
293550010
Unavailable
34
Screw
211000007
Unavailable
35
Venturi Bushing
271000321
$8.69
36
Trimming Ring
271000461190
Unavailable
37
Socket Head Screw M8 x 10
211000089
Unavailable
38
Loctite 243, 10 ml
293800060
$21.49
39
VTS Switch Ass'y | Includes 20 - 22.
278001354
Unavailable
40
GROMMET - Call your local BRP dealership
293720015
Unavailable
41
Was 293800041 Loctite Primer 7649
219704458
$39.99
42
Stainless Flat Washer M6
234061600
$0.33
43
Spacer
278000814
Unavailable
44
Silicone Sealant 51388, 300 ml
296000309
$36.99
45
Female Housing, 2 Circuits
278000217
$9.59
46
1 Circuit Harness
278000671
Unavailable
47
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
48
Tie Wrap 368 mm
293750008
$1.04
49
Tie Wrap 142 mm
293750002
$1.25
