04- Starter

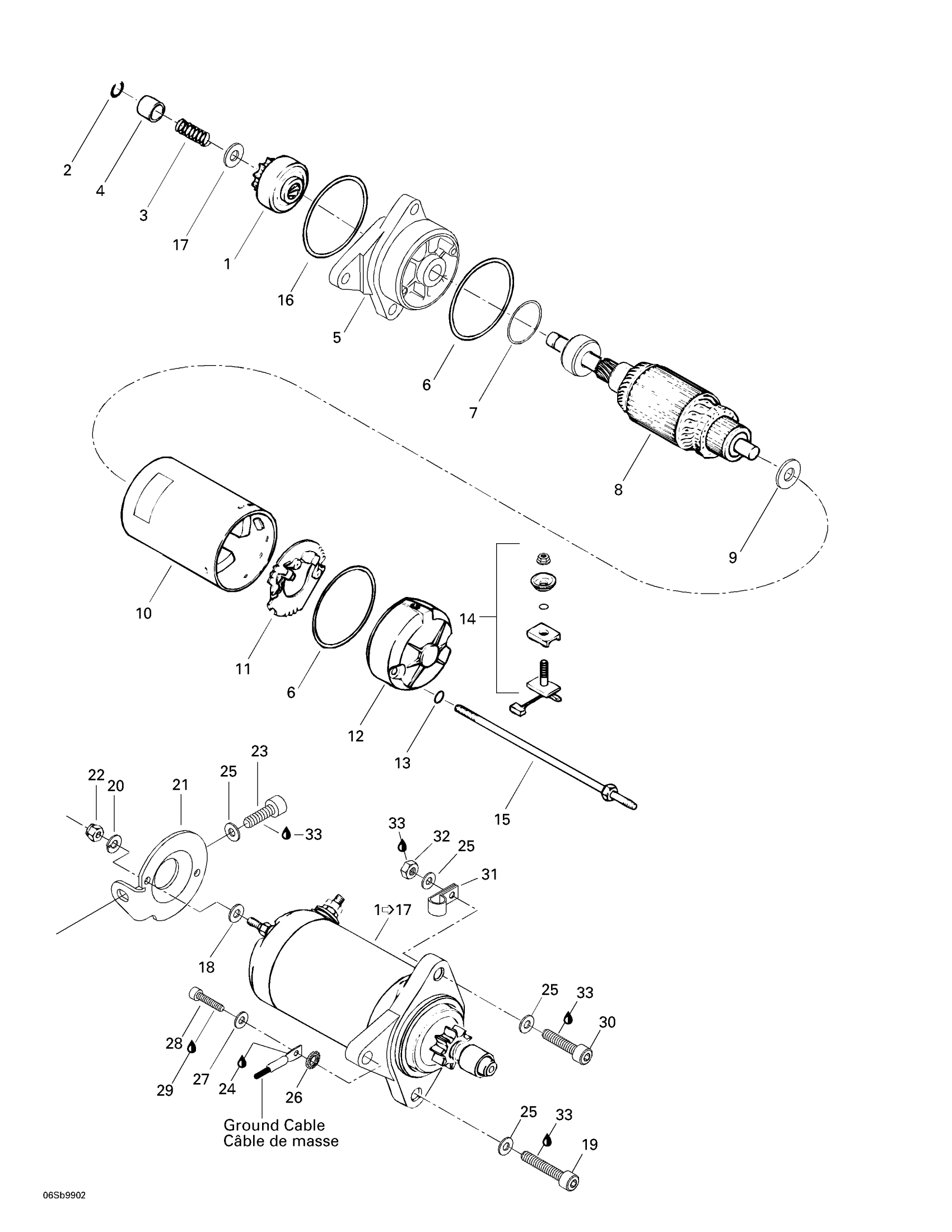

Sea-doo SPX, 5636/5828, 1999 04- Starter Diagram
#
Description
Price
1
Starter Ass'y | Includes 1 - 17.
278001301
$234.49
1
STARTER CLUTCH ASS'Y - Call your local BRP dealership
278001106
Unavailable
2
SNAP RING - Call your local BRP dealership
410207700
Unavailable
3
Spring
278000050
Unavailable
4
Stopper Bushing
278000254
Unavailable
5
Housing Ass'y
278001107
Unavailable
6
O-Ring
278000695
$14.24
7
O-Ring Kit This part replaces 278000696.
415129342
$14.24
8
Armature
278001108
Unavailable
9
THRUST WASHER - Call your local BRP dealership
278000056
Unavailable
10
YOKE ASS'Y - Call your local BRP dealership
278001109
Unavailable
11
Brush Holder
278001296
$40.99
12
Rear Cover
278001111
Unavailable
13
O-RING - Call your local BRP dealership
278000060
Unavailable
14
BRUSH STARTER KIT - Call your local BRP dealership
278001298
Unavailable
15
RETAINER STUD - Call your local BRP dealership
278000170
Unavailable
16
O-RING - Call your local BRP dealership
278000694
Unavailable
17
WASHER PLATE - Call your local BRP dealership
278001105
Unavailable
18
Flat Washer M5, Stainless
234051600
$0.77
19
Socket Screw M8 X 30
205083060
$2.96
20
Helical Lock Washer M5
234151601
$1.15
21
Starter Support
270000387
Unavailable
22
Hex. Nut M5
232051600
$1.15
23
Socket Head Screw M8 X 16
205081660
Unavailable
24
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
25
Stainless, Flat Washer 8 mm
234081600
$0.55
26
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
27
Stainless, Flat Washer 8 mm
234081600
$0.55
28
SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership
205081644
Unavailable
29
Loctite 271, 10 ml
293800005
$26.99
30
Socket Head Screw M8 X 45
205084560
$3.59
31
Clip
293850018
Unavailable
32
Hex. Nut M8
232081600
$1.47
33
Loctite 243, 10 ml
293800060
$21.49
