- SPX, 5636/5828, 1999
03- Magneto, Oil Pump (787)

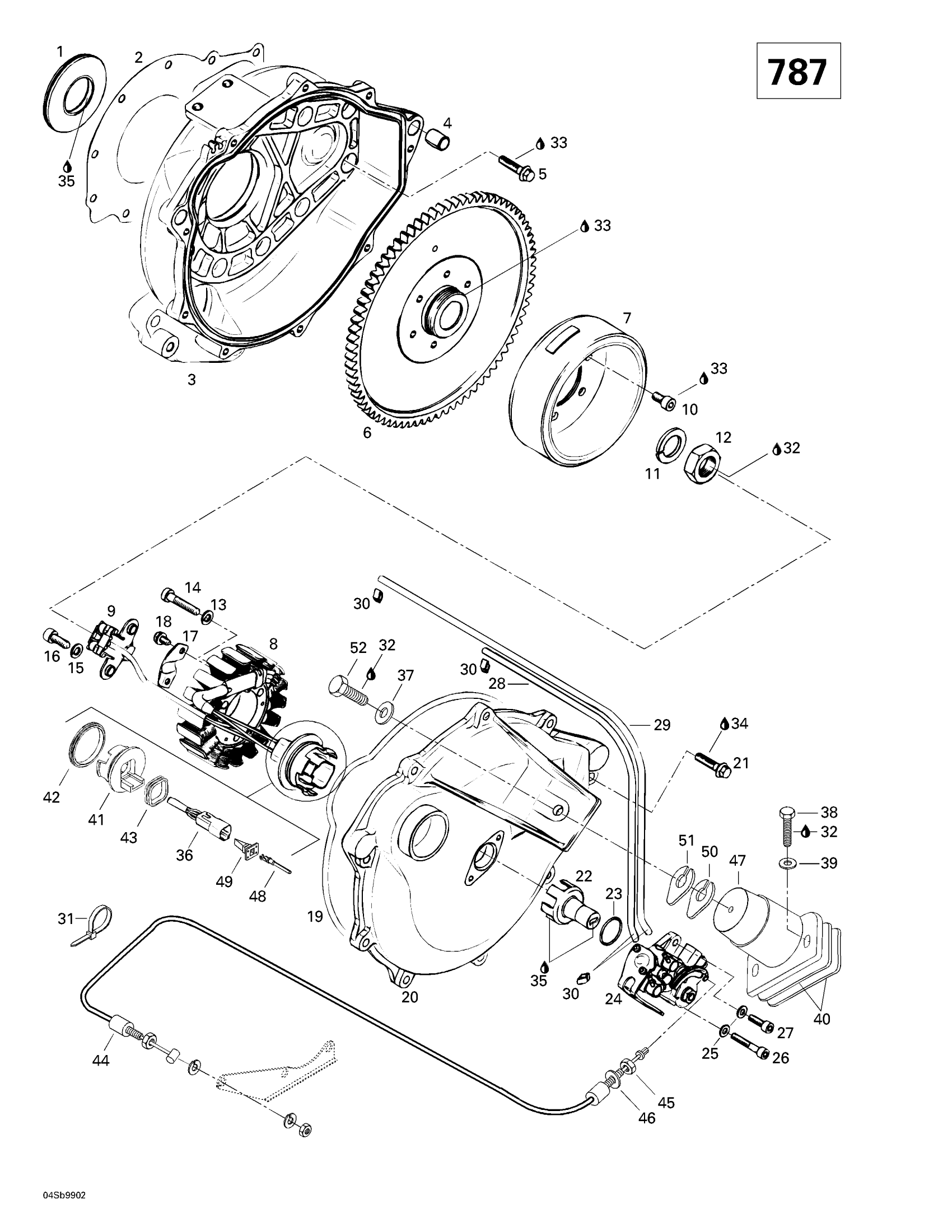

Sea-doo SPX, 5636/5828, 1999 03- Magneto, Oil Pump (787) Diagram
#
1
Oil Seal This part replaces 290830749.
420830749
$18.54
2
Gasket
290931470
Unavailable
3
Ignition Housing (Silver) | Includes 3 - 4.
290810713
Unavailable
4
Dowel Tube
290229153
Unavailable
5
Hex. Screw M6 X 25
420240034
$1.90
6
Flywheel Hub
290966442
Unavailable
7
MAGNETO FLYWHEEL - Call your local BRP dealership
290886598
Unavailable
8
STATOR PLATE ASS'Y - Call your local BRP dealership
290886588
Unavailable
9
Sensor Ass'y
420966832
$184.99
10
Socket Head Screw M6 X 12
205061260
$1.58
11
Lock Washer 18 mm
290945757
Unavailable
12
HEX. NUT M18 - Call your local BRP dealership
420942220
Unavailable
13
Lock Washer
290445330
Unavailable
14
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.
420840887
Unavailable
15
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
16
Socket Head Screw M6 x 16
420241237
$2.22
17
Retainer Plate
290853080
Unavailable
18
HEX. SCREW M5 X 8 - Call your local BRP dealership
207150844
Unavailable
19
O-RING - Call your local BRP dealership This part replaces 290950360.
420950360
Unavailable
20
Ignition Cover (Silver)
290810722
Unavailable
21
Hex. Flange Screw M6 x 25
290240033
Unavailable
22
Shaft Oil Pump
290837392
Unavailable
23
O-RING - Call your local BRP dealership
293300018
Unavailable
24
PUMP-OIL ASSY. - Call your local BRP dealership This part replaces 290887333.
420887333
$234.99
25
Lock Washer
290845389
Unavailable
26
Socket Head Screw M5 x 30
290940883
Unavailable
27
SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership
205051660
Unavailable
28
Oil Hose 1500Mm Long
219704404
$17.26
29
Oil Hose 1500Mm Long
219704404
$17.26
30
Clamp
420256408
Unavailable
31
Tie Wrap 142 mm
293750002
$1.25
32
Loctite 243, 10 ml
293800060
$21.49
33
Sealant Loctite 648
219703000
$45.99
34
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
35
Dow Corning 111, 150 g
413707000
$59.99
36
Male Terminal Housing, 6 Circuits
710001539
$19.99
37
Flat Washer 8 mm, Stainless
234082600
$2.43
38
Hex. Screw M8 X 40
207184060
$2.22
39
Stainless, Flat Washer 8 mm
234081600
$0.55
40
Shim 0.3 mm
270000122
Unavailable
SHIM 1.3 MM - Call your local BRP dealership
270000123
Unavailable
41
Adaptor
270000138
Unavailable
42
Gasket
293300033
Unavailable
43
Gasket
293200030
Unavailable
44
Injection Cable | Includes 44 - 46.
270000384
Unavailable
45
Hex. Nut M6
232160600
$1.15
46
Lock Washer Helical M6
234161601
$1.15
47
Rubber Mount, Black
270000422
Unavailable
48
Male Terminal
278000631
$4.39
49
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
50
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
51
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
52
HEX. SCREW M8 X 20 - Call your local BRP dealership
207182060
Unavailable
53
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886390
Unavailable
54
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886396
Unavailable
