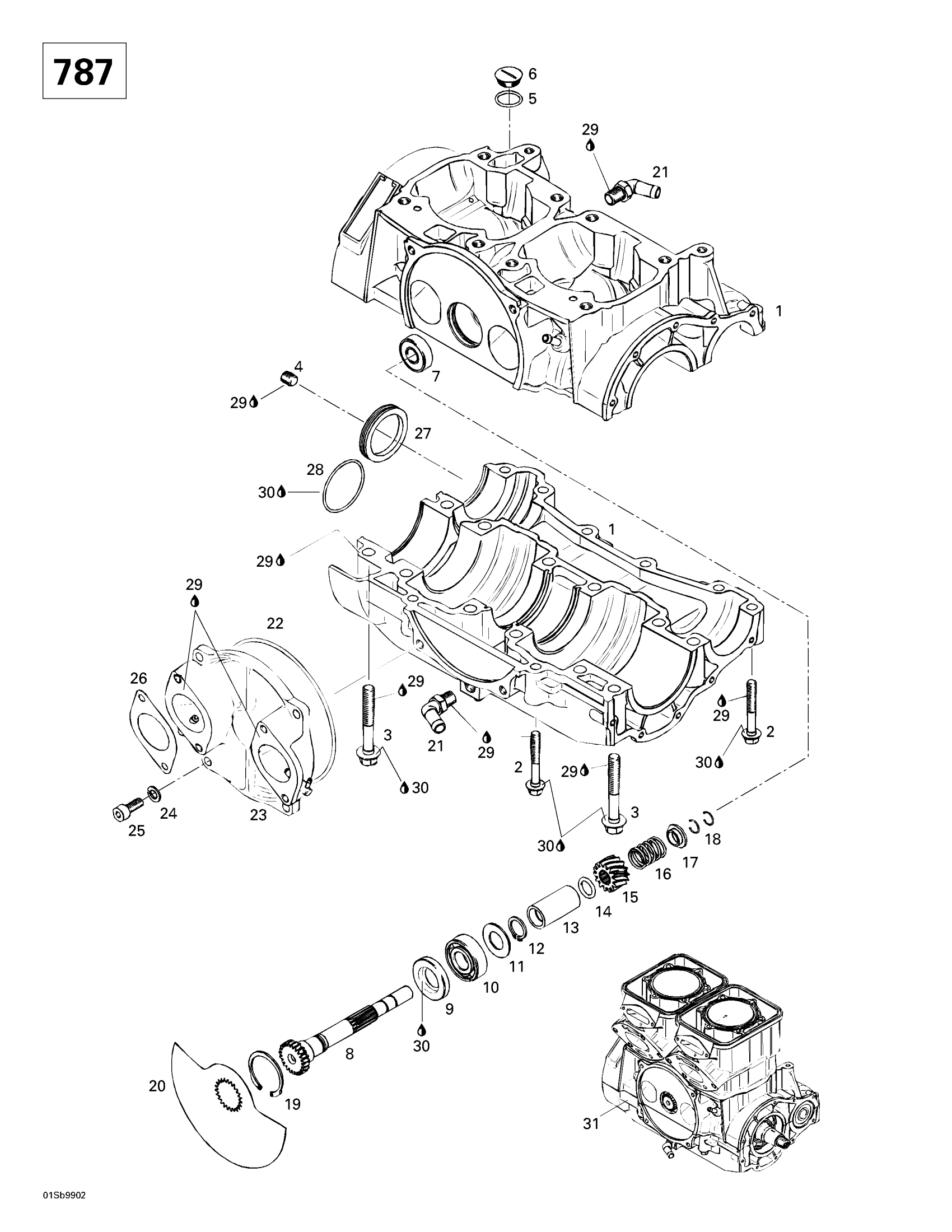

Sea-doo SPX, 5636/5828, 1999 01- Crankcase, Rotary Valve (787) Diagram

#

Description
Price

1

Crankcase Ass'y (787) (Silver) | Includes 1 - 7.

290888054

Unavailable

2

Hex. Flange Screw M8 x 55

290240328

Unavailable

3

Flange Screw M10 x 73,5

290941333

Unavailable

4

Drain Plug 1/8"

290240483

Unavailable

5

O-Ring

420250890

$3.06

6

Drain Plug

420241801

$7.41

7

Ball Bearing

420932797

$19.99

8

Rotary Valve Shaft

290837352

Unavailable

9

OIL SEAL - Call your local BRP dealership

420930580

Unavailable

10

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

11

SHIM - Call your local BRP dealership

420227439

Unavailable

12

SNAP RING - Call your local BRP dealership

420845450

Unavailable

13

Distance Sleeve

290847287

Unavailable

14

O-Ring

293300024

$8.57

15

Sprocket 14Th This part replaces 420935735.

420935736

$88.99

16

SPRING - Call your local BRP dealership

420938810

Unavailable

17

SPRING SEAT - Call your local BRP dealership

420827430

Unavailable

18

CIRCLIP - Call your local BRP dealership

420845160

Unavailable

19

Lock Ring

420945880

$4.44

20

ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.

420924502

Unavailable

21

Angular Tube

420922242

$14.83

22

O-RING - Call your local BRP dealership

290831767

Unavailable

23

Rotary Valve Cover

290811243

Unavailable

24

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

25

SOCKET SCREW M8 X 20 - Call your local BRP dealership

205082060

Unavailable

26

Gasket This part replaces 293250070.

293250134

$13.76

27

BEARING COVER - Call your local BRP dealership This part replaces 290810745.

420810745

Unavailable

28

O-Ring

290230300

Unavailable

29

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

30

Dow Corning 111, 150 g

413707000

$59.99

31

Short Block Ass'y (30.00.787.04) | Includes 1 - 20.

290078704

Unavailable

1

REBUILD-CRANKCASE-CYLINDER PACKAGE - Call your local BRP dealership

421000100

Unavailable

1

REBUILD-CRANKCASE-CYLINDER PACKAGE - Call your local BRP dealership

421000100

Unavailable

32

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886390

Unavailable
