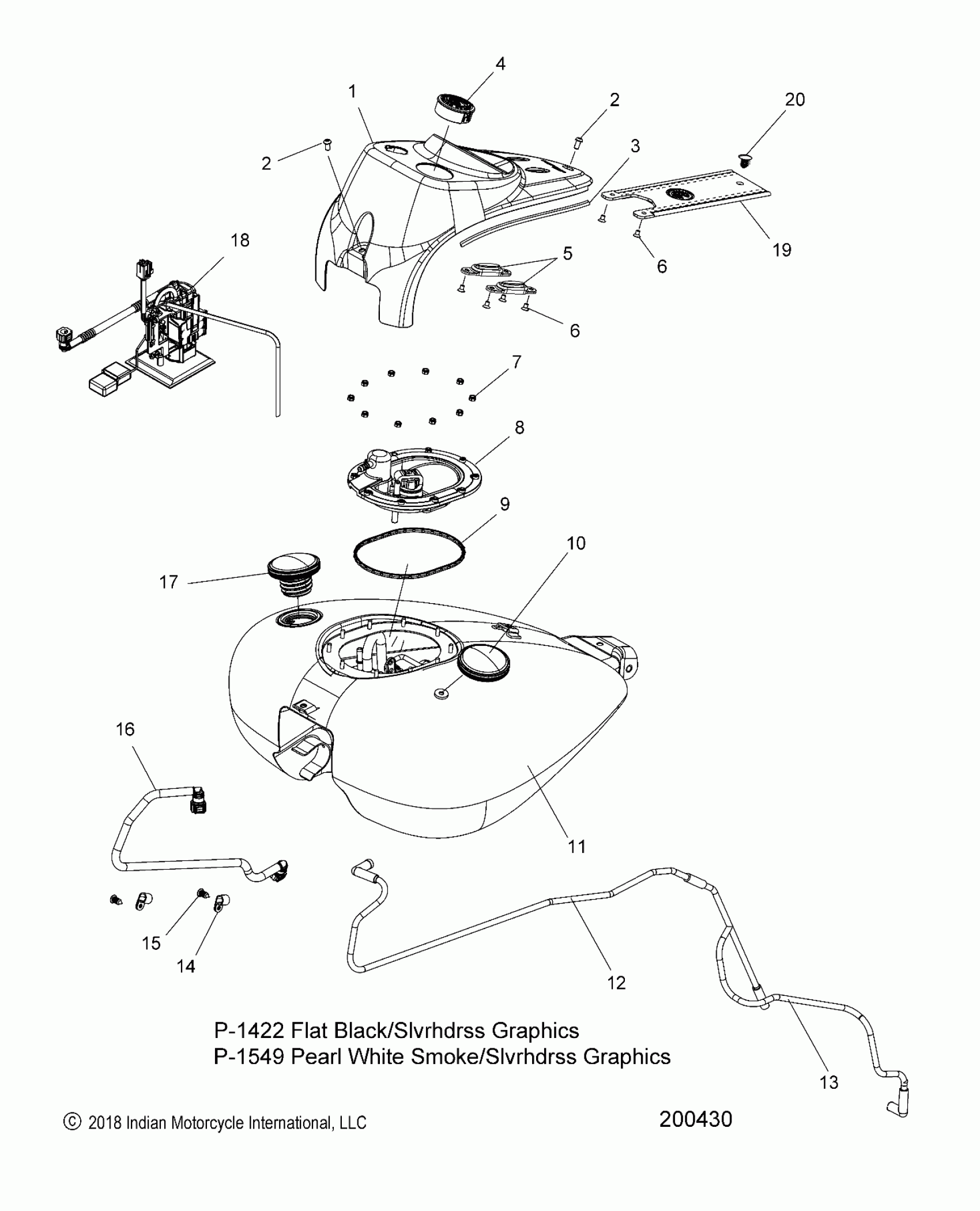

Polaris SPRINGFIELD DARK HORSE ALL OPTIONS (R09) - N19THDAAA6/H/B6/H/C6/H/E6/H FUEL SYSTEM, FUEL TANK ASM. - N19THDAA ALL OPTIONS (200430) Diagram

#

Description

Price

1

CONSOLE, TANK, NON FAIRING, JTBLACK

5633355-626

Unavailable

2

SCREW

7519000

Unavailable

2

SCREW

7519000

Unavailable

3

TRIM, EDGE, CONSOLE, 472MM

8360134

Unavailable

4

FUEL GAUGE [SEE ELECTRICAL-INSTRUMENT CLUSTER]

-------

Unavailable

5

PLUG, CONSOLE, TALL

5453426

Unavailable

5

SWITCH-LOCK [SEE ELECTRICAL-COMPONENTS]

-------

Unavailable

6

SCREW

7519876

Unavailable

6

SCREW

7519876

Unavailable

7

NUT-M5X.8,HX NYL-Y

7546601

$1.49

8

ASM., FUEL ACCESS

2521374

Unavailable

9

SEAL, FUEL

5414514

Unavailable

10

CAP, FUEL, DUMMY, BLK

5138538-266

Unavailable

11

ASM-TANK,FUEL,FBLK/SLVRHDRSS

1021997-1422

Unavailable

11

ASM-TANK,FUEL,PWHTSMK/SLVHDRSS

1021997-1549

Unavailable

12

LINE, VENT TO GROUND, UPPER

5439857

Unavailable

13

LINE, VENT TO GROUND, LOWER

5439858

Unavailable

14

CLAMP, CABLE

7080499

$5.59

15

CLIP, XMAS TREE

7661953

$1.49

16

LINE, FUEL,HWI

5416352

Unavailable

17

CAP, FUEL, BLK

5138508-266

Unavailable

18

K-SVC, FUEL FILTER

2207067

Unavailable

18

ASM., FUEL PUMP, SENDER, W/SVC FILTER

2521787

Unavailable

19

STRAP, FUEL TANK, VINYL, BLACK

2686413

Unavailable

20

CLIP-PLASTIC DART, NYLON

7670088

$1.59
