Description

Price

1

MUFFLER,STAGE 0,RH, BLACK

1263260-266

$519.99

1

MUFFLER,TOUR,STAGE 0,INTL,RH,BLK [CHINA ONLY]

1262650-266

$594.99

2

MUFFLER,STAGE 0,LH,BLACK

1263259-266

$519.99

2

MUFFLER,TOUR,STAGE 0,INTL,LH,BLK [CHINA ONLY]

1262649-266

$519.99

3

CLAMP, EXHAUST SS

7081179

$43.65

3

CLAMP, EXHAUST SS

7081179

$43.65

3

CLAMP, EXHAUST SS

7081179

$43.65

4

CLAMP-WORM DRIVE 4.00 DIA

7082311

$5.56

4

CLAMP-WORM DRIVE 4.00 DIA

7082311

$5.56

5

SHIELD, TRANSITION, LH, BLK

1262397-266

$204.99

6

CLAMP-WORM DRIVE 2.25 DIA

7082310

$4.76

6

CLAMP-WORM DRIVE 2.25 DIA

7082310

$4.76

6

CLAMP-WORM DRIVE 2.25 DIA

7082310

$4.76

7

SCR-HXFL-M8X1.25X20 8.8 ZB

7519936

$1.59

7

SCR-HXFL-M8X1.25X20 8.8 ZB

7519936

$1.59

8

ASM., EXHAUST CROSSOVER TUBE, CHROME

1262341-156

$396.97

8

ASM., EXHAUST CROSSOVER TUBE, CHROME

1262341-156

$396.97

9

BRKT., EXHAUST MOUNT

5257155

$32.37

10

NUT-HXFLGHD,M8,0600087

7547014

$7.84

10

NUT-HXFLGHD,M8,0600087

7547014

$7.84

11

ASM., EXHAUST COVER, REAR [WITH DOWEL PINS]

3022666

$169.43

12

SCR-SH-M6X1.0X20 8.8 ZPB

7517305

$5.22

12

SCR-SH-M6X1.0X20 8.8 ZPB

7517305

$5.22

13

GASKET, EXHAUST

5257156

$13.49

13

GASKET, EXHAUST

5257156

$13.49

14

ASM., HEADPIPE, REAR, BLK

1263130-266

$1,739.99

14

ASM., HEADPIPE, REAR, EU, BLK [INTL]

1263131-266

$1,834.99

14

SHIELD, HEADPIPE, REAR BLK

1263145-266

$204.99

15

SENSOR, OXYGEN

4016021

$169.98

15

SENSOR, OXYGEN

4016021

$169.98

16

PLUG, FRAME

5450652

$5.56

16

PLUG, FRAME

5450652

$5.56

17

ASM., EXHAUST COVER, FRONT [WITH DOWEL PINS]

3022665

$174.27

18

ASM., HEADPIPE, FRONT, BLK

1263129-266

$689.99

18

SHIELD, HEADPIPE, FRONT, BLK

1263146-266

$254.99

19

SHIELD, TRANSITION, RH, BLK

1262531-266

$254.99

20

SCR-HXFL-M8X1.25X16 8.8 ZPC

7519005

$3.97

21

PAD-INSULATION,LRG,HEAT SHIELD [QTY. 3 FRONT, QTY. 2 REAR]

5814354

$40.46

21

PAD-INSULATION,HEAT SHIELD [QTY. 3 FRONT, QTY. 2 REAR]

1262777

$36.41

21

PAD-INSULATION,LRG,HEAT SHIELD [QTY. 3 FRONT, QTY. 2 REAR]

5814354

$40.46

21

PAD-INSULATION,HEAT SHIELD [QTY. 3 FRONT, QTY. 2 REAR]

1262777

$36.41

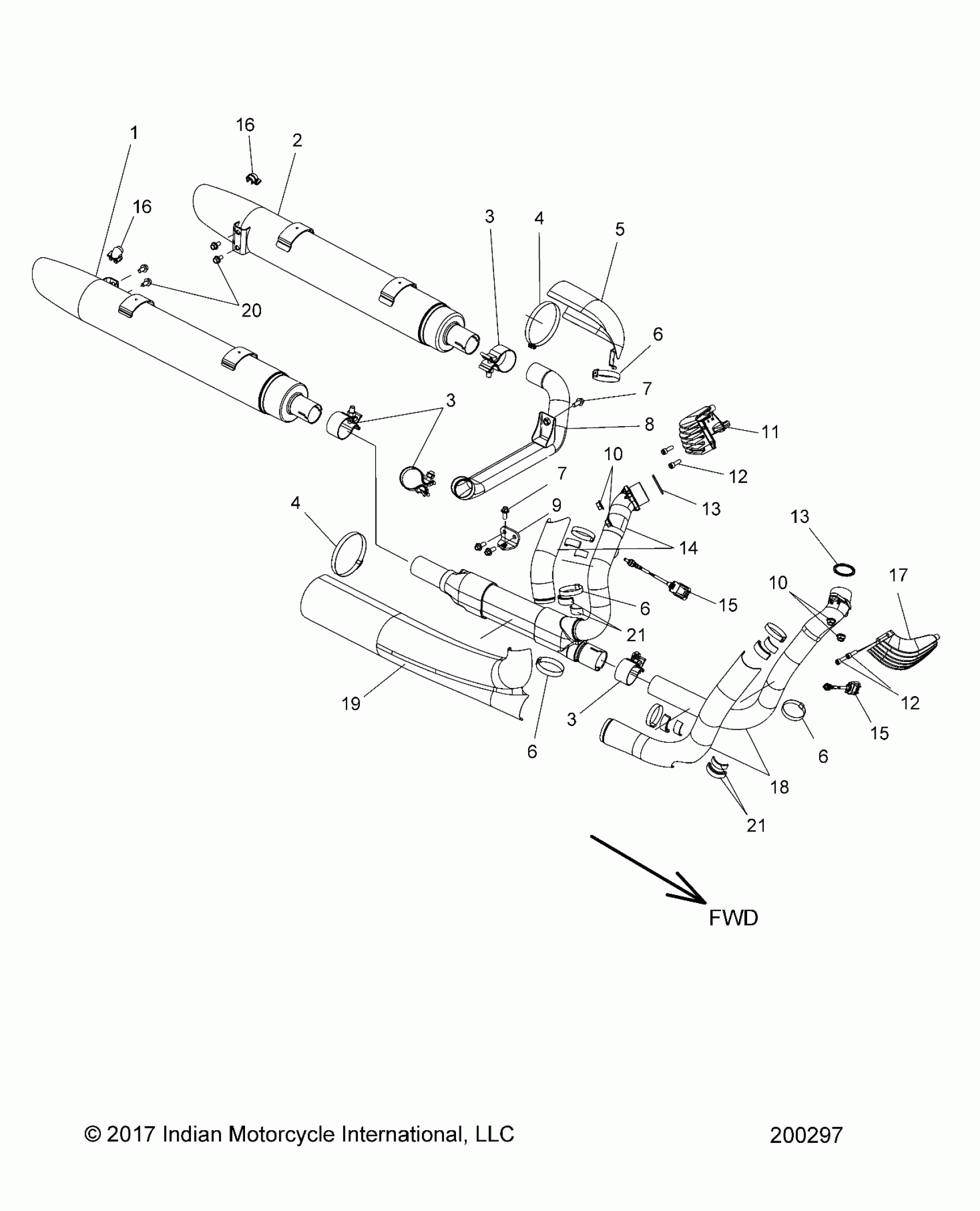

Polaris SPRINGFIELD DARK HORSE ALL OPTIONS (R04) - N20TJDBBAH/J/W/BH/J/W/CH/J/W/EH/J/W ENGINE, EXHAUST - N20TJDBB ALL OPTIONS (200297) Diagram

MUFFLER,STAGE 0,RH, BLACK

MUFFLER,TOUR,STAGE 0,INTL,RH,BLK [CHINA ONLY]

MUFFLER,STAGE 0,LH,BLACK

MUFFLER,TOUR,STAGE 0,INTL,LH,BLK [CHINA ONLY]

CLAMP, EXHAUST SS

CLAMP, EXHAUST SS

CLAMP, EXHAUST SS

CLAMP-WORM DRIVE 4.00 DIA

CLAMP-WORM DRIVE 4.00 DIA

SHIELD, TRANSITION, LH, BLK

CLAMP-WORM DRIVE 2.25 DIA

CLAMP-WORM DRIVE 2.25 DIA

CLAMP-WORM DRIVE 2.25 DIA

SCR-HXFL-M8X1.25X20 8.8 ZB

SCR-HXFL-M8X1.25X20 8.8 ZB

ASM., EXHAUST CROSSOVER TUBE, CHROME

ASM., EXHAUST CROSSOVER TUBE, CHROME

BRKT., EXHAUST MOUNT

NUT-HXFLGHD,M8,0600087

NUT-HXFLGHD,M8,0600087

ASM., EXHAUST COVER, REAR [WITH DOWEL PINS]

SCR-SH-M6X1.0X20 8.8 ZPB

SCR-SH-M6X1.0X20 8.8 ZPB

GASKET, EXHAUST

GASKET, EXHAUST

ASM., HEADPIPE, REAR, BLK

ASM., HEADPIPE, REAR, EU, BLK [INTL]

SHIELD, HEADPIPE, REAR BLK

SENSOR, OXYGEN

SENSOR, OXYGEN

PLUG, FRAME

PLUG, FRAME

ASM., EXHAUST COVER, FRONT [WITH DOWEL PINS]

ASM., HEADPIPE, FRONT, BLK

SHIELD, HEADPIPE, FRONT, BLK

SHIELD, TRANSITION, RH, BLK

SCR-HXFL-M8X1.25X16 8.8 ZPC

PAD-INSULATION,LRG,HEAT SHIELD [QTY. 3 FRONT, QTY. 2 REAR]

PAD-INSULATION,HEAT SHIELD [QTY. 3 FRONT, QTY. 2 REAR]

PAD-INSULATION,LRG,HEAT SHIELD [QTY. 3 FRONT, QTY. 2 REAR]

PAD-INSULATION,HEAT SHIELD [QTY. 3 FRONT, QTY. 2 REAR]
