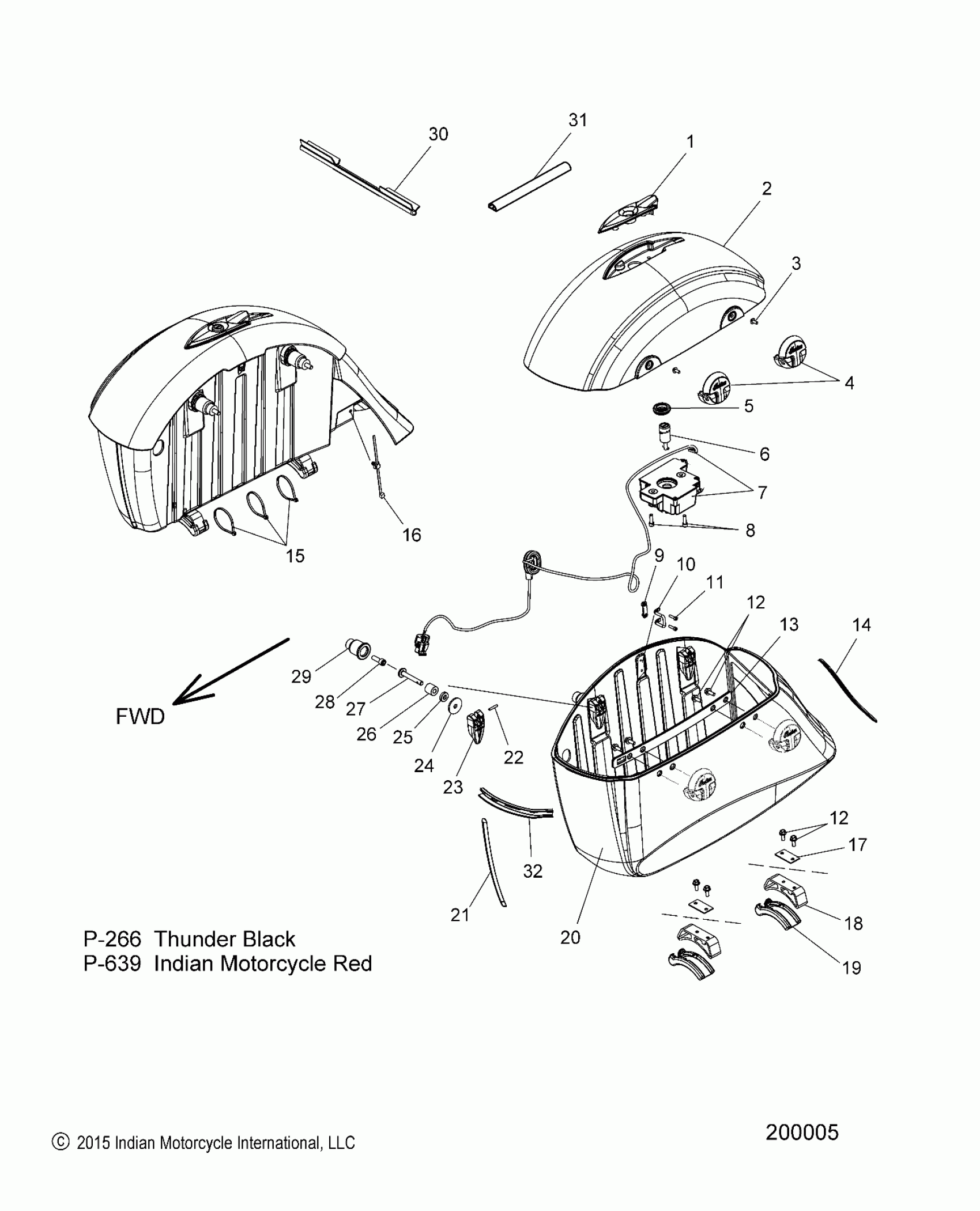

Polaris SPRINGFIELD ALL OPTIONS (R05) - N16THAAA BODY, SADDLEBAG ASM. - N16THAAA ALL OPTIONS (200005) Diagram

#

Description
Price

1

BEZEL, LOCK, SADDLEBAG, CHROME

5450924-156

$57.13

2

LID, SADDLEBAG, LH

5450213-266

$774.99

2

LID, SADDLEBAG, RH

5450214-266

$724.99

2

LID, SADDLEBAG, LH

5450213-639

Unavailable

2

LID, SADDLEBAG, RH

5450214-639

$724.99

3

SCREW

7518338

$5.99

4

ASM., HINGE, SADDLEBAG, REAR, CHROME [FRONT ON RH SIDE, REAR ON LH SIDE]

2634925-156

$164.99

4

ASM., HINGE, SADDLEBAG, FRONT, CHROME [FRONT ON LH SIDE, REAR ON RH SIDE]

2634898-156

$164.99

5

SEAL-LOCK,SDLBG

5414686

$1.98

6

KIT, LOCK, STEERING HEAD/SADDLEBAG [INCL. STEERING HEAD LOCK, KEY, SCREWS, SADDLEBAG PUSHBUTTON LOCKS]

2205200

$280.78

7

LOCK-ELECTRONIC, SADDLEBAG [WHEN PURCHASING LOCK, ALSO ORDER CORRESPONDING HARNESS]

4017838

$309.99

7

HARNESS-LEFTSBAG

2413895

$44.99

7

HARNESS-RIGHTSBAG

2413896

$44.99

8

SCREW

7517305

$5.22

9

ASM., BRACKET, HOOP

1016590

$32.37

10

HOOP, LATCH, STRIKER, LH

5338190

$34.99

10

HOOP, LATCH, STRIKER, RH

5338191

$34.99

11

SCREW

7518812

$3.97

12

SCREW

7518591

$3.79

12

SCREW

7518591

$3.79

13

BRKT. HINGE, LH, FLAT BLACK

5138474-463

$59.99

13

BRKT. HINGE, RH, FLAT BLACK

5138475-463

$59.99

14

TRIM, SADDLEBAG, REAR, CHROME

5450222-156

$77.44

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

17

PLATE, BACKUP, SADDLEBAG

5257409

$8.08

18

BRKT. MOUNT, SADDLEBAG

5257139

$48.56

19

PAD, MOUNT, SADDLEBAG

5414642

$32.37

20

ASM., BIN, SADDLEBAG, LH

5451493-266

$1,084.99

20

ASM., BIN, SADDLEBAG, RH

5451494-266

$1,084.99

20

ASM., BIN, SADDLEBAG, LH

5451493-639

$1,176.41

20

ASM., BIN, SADDLEBAG, RH

5451494-639

$1,176.41

21

TRIM, SADDLEBAG, FRONT, CHROME

5450220-156

$64.75

22

PIN, DOWEL

7661970

$1.59

23

CAM, LATCH

5450622

$11.32

24

WASHER, RUBBER

5414770

$1.59

25

SPACER, LATCH

5139225

$14.99

26

BUSHING, ANCHOR, SADDLEBAG

5414757

$3.17

27

PIN, ANCHOR

7662154

$13.49

28

SCREW

7520170

$2.38

29

SPOOL, SADDLEBAG

5139710

$60.70

30

SEAL, SADDLEBAG, MECH.

5415263

$66.65

31

COVER, WIRE

5522014

$36.41

32

CLIP, SADDLEBAG HARNESS,LH

5452006

Unavailable

32

CLIP, SADDLEBAG HARNESS,RH

5452010

$7.14
