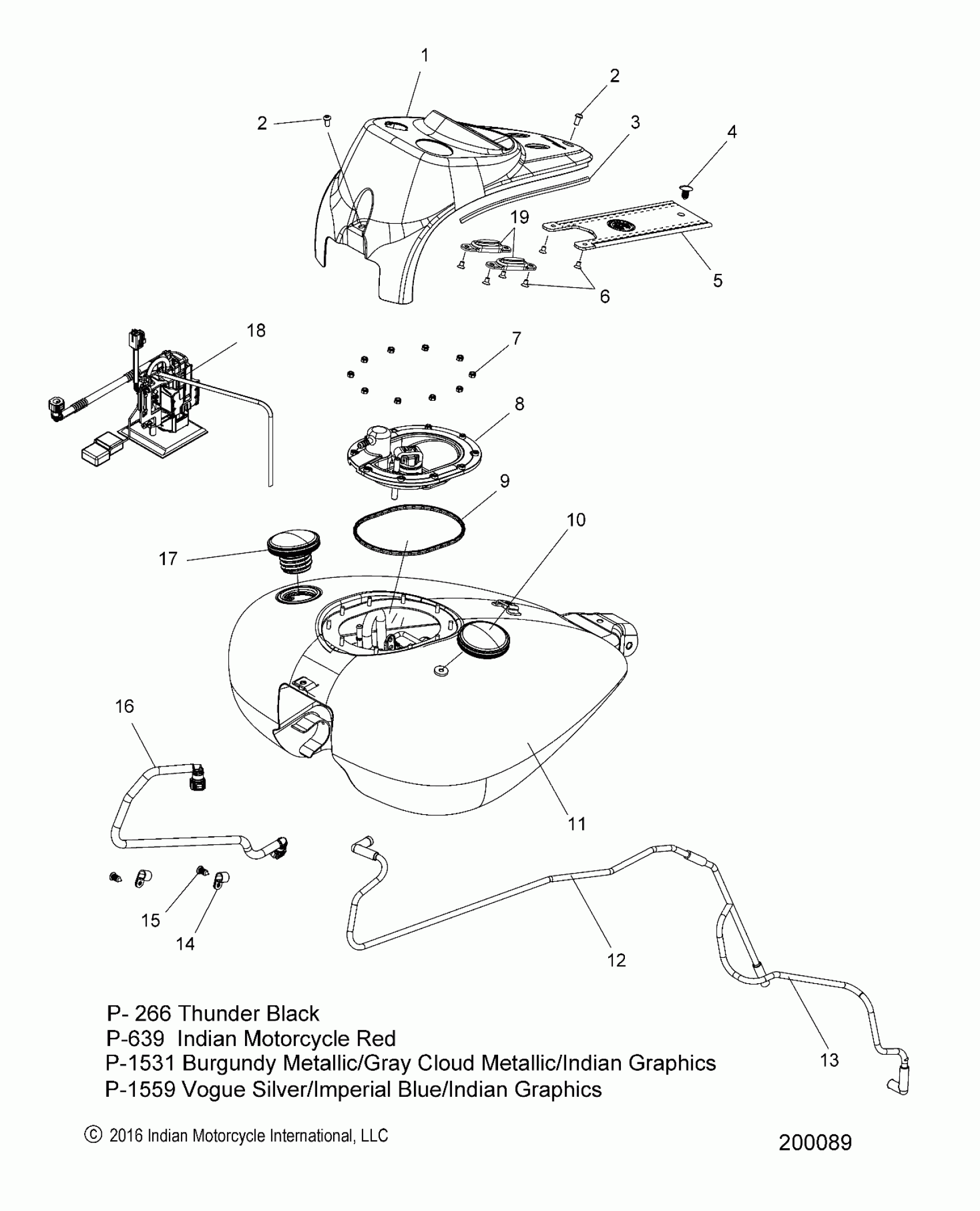

Polaris SPRINGFIELD ALL OPTIONS (R03) - N17THAAAAA/L/M/R/Z/BA/L/M/R/Z/CA/L/M/R/Z/EA/L/M/R FUEL SYSTEM, FUEL TANK ASM. - N17THAAA ALL OPTIONS (200089) Diagram

#

Description

Price

1

CONSOLE, TANK, NON FAIRING, CHROME

5633355-156

Unavailable

2

SCREW

7519000

Unavailable

2

SCREW

7519000

Unavailable

3

TRIM, EDGE, CONSOLE, 472MM

8360134

Unavailable

4

CLIP-PLASTIC DART, NYLON

7670088

$1.59

5

STRAP, FUEL TANK, LEATHER, BLACK

2685660-01

Unavailable

6

SCREW

7519876

Unavailable

7

NUT-M5X.8,HX NYL-Y

7546601

$1.49

8

ASM., FUEL ACCESS

2521374

Unavailable

9

SEAL, FUEL

5414514

Unavailable

10

CAP, FUEL, DUMMY, CHROME

5138538-156

Unavailable

11

TANK, FUEL

1021997-266

Unavailable

11

TANK, FUEL

1021997-639

Unavailable

11

TANK, FUEL

1021997-1531

Unavailable

11

TANK, FUEL

1021997-1559

Unavailable

12

LINE, VENT TO GROUND, UPPER

5439857

Unavailable

13

LINE, VENT TO GROUND, LOWER

5439858

Unavailable

14

CLAMP, CABLE

7080499

$5.59

15

CLIP, XMAS TREE

7661953

$1.49

16

LINE, FUEL

5414515

Unavailable

17

CAP, FUEL, CHROME

5138508-156

Unavailable

18

ASM., FUEL PUMP, SENDER [SERVICE][INCL. PUMP, SENDER]

2521632

Unavailable

19

PLUG, CONSOLE, CHROME

5451070-156

Unavailable
