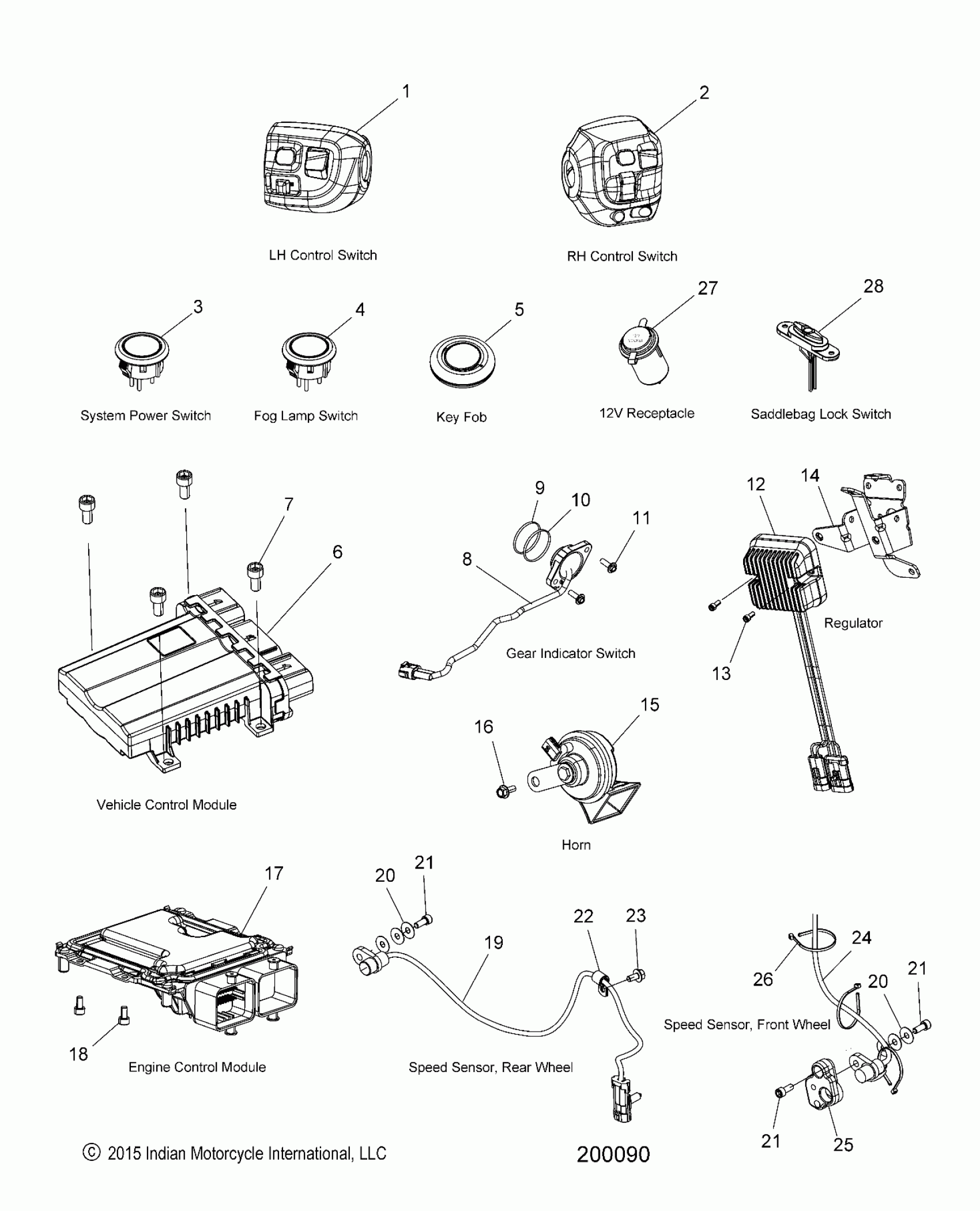

Polaris SPRINGFIELD ALL OPTIONS (R03) - N17THAAAAA/L/M/R/Z/BA/L/M/R/Z/CA/L/M/R/Z/EA/L/M/R ELECTRICAL, COMPONENTS 1 - N17THAAA ALL OPTIONS (200090) Diagram

#

Description
Price

1

SWITCH, CONTROL, LH, CRSR, CHROME

4015198-156

$779.99

2

ASM., ETC SWITCH CONTROL, CHROME

2413027-156

$1,124.99

3

SWITCH, SYSTEM POWER

4016373

$82.29

4

SWITCH, FOG LIGHTS

4016252

$62.92

5

REMOTE CONTROL, FOB

4014121

$203.32

5

BATTERY, KEY FOB

4014675

$10.99

5

K-FOB HOUSING, 2 BUTTON [PLASTIC HOUSING ONLY]

2206559

$32.37

6

MODULE, VEHICLE CONTROL [SVC][DEALER INSTALL REQUIRED]

4016189

$599.99

7

SCREW

7517781

$3.17

8

SWITCH, GEAR, N-6, W/GROUND

4014718

$39.99

9

O-RING

5412530

$1.60

10

RING, PARBAK-121

5450958

$6.46

11

SCREW

7519986

$4.76

12

REGULATOR, VOLTAGE

4014300

Unavailable

13

SCREW

7517272

$7.84

14

BRKT., VOLTAGE REGULATOR

5257637

$97.13

15

HORN, TRUMPET, LOW TONE

4015908

$47.60

16

SCREW

7520122

$4.76

17

ECM, NO START, ME17 [SVC]

4014125

$749.99

18

SCREW

7519851

$3.17

19

SENSOR, WHEEL SPEED, REAR

4014216

$256.57

20

SHIM

5255106

Unavailable

20

SHIM

5255106

Unavailable

21

SCREW

7517272

$7.84

21

SCREW

7517272

$7.84

21

SCREW

7517272

$7.84

22

CLAMP-REAR BRAKE

7080983

$4.35

23

SCREW

7517704

$7.84

24

SENSOR, WHEEL SPEED, FRONT

4013251

$242.05

25

MOUNT, SPEED SENSOR, ABS

5632575

$36.41

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

28

SWITCH-SADDLEBAG LOCK V2

4017110

$116.17
