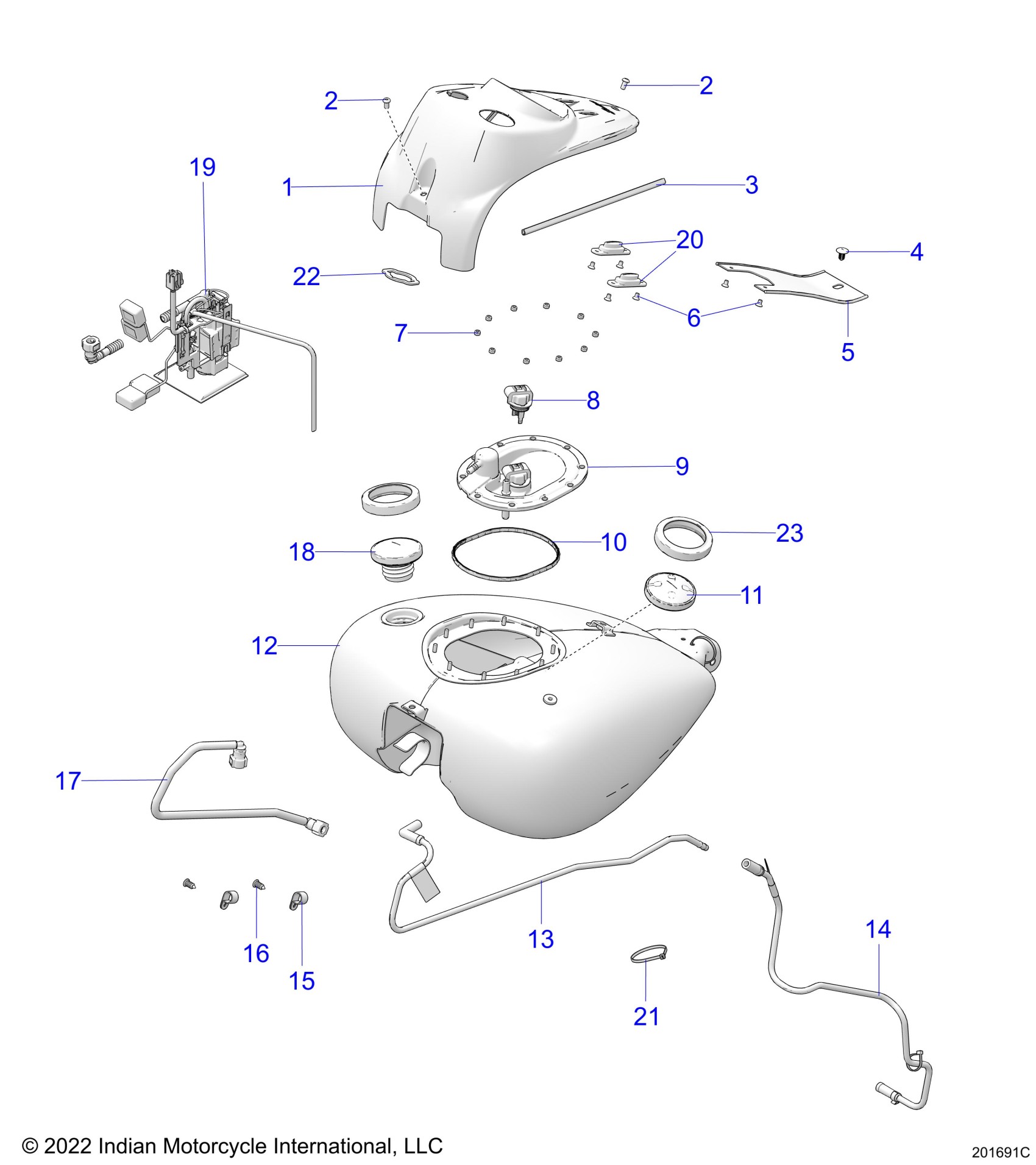

Polaris SPRINGFIELD 116 ALL OPTIONS (R01) - N23THABBE1/3/J1/3/X1/3 FUEL SYSTEM, FUEL TANK ASM. - N23THABB ALL OPTIONS (201691C) Diagram

CONSOLE, TANK, NON FAIRING, CHROME

5634134-156

$508.32

SCREW-HXBH-M6X1.0X12 A2

7519000

$2.84

SCREW-HXBH-M6X1.0X12 A2

7519000

$2.84

TRIM, EDGE, CONSOLE, 472MM

8360226

$28.32

CLIP-PLASTIC DART, NYLON

7670088

$1.59

STRAP, FUEL TANK, VINYL, BLACK

2686413

$59.99

SCREW-FLHD-M5X.8X8.8 ZNC

7519876

$3.97

NUT-HXFL-M5X0.8 8 ZPC NYL

7547829

$3.17

CONNECTOR, FUEL PUMP

4014261

$39.68

ASM-FUEL ACCESS,PPA (INCL. 8)

2522275

$246.89

SEAL-FUEL,MOLDED

5414514

$43.65

CAP, FUEL, DUMMY, CHROME

2522215-156

$101.65

ASM-TANK,FUEL,SBLMTGFX [SPIRIT BLUE METALLIC W/ GFX]

1025508-2062

$3,034.99

ASM-TANK,FUEL,BRZPRL/GRFX [BRONZE PEARL W/ GFX]

1025508-2135

$3,034.99

LINE, VENT TO GROUND, UPPER

5439857

$96.81

LINE-FUEL,VENT TO GROUND,LWR

5456825

$114.99

CLAMP-CABLE, 9/16 I.D.

7080499

$5.56

CLIP-XMAS TREE,.70X.187 DIA

7661953

$1.19

LINE-FUEL,HWAC,IND

5417881

$121.02

CAP, FUEL, CHROME

2522214-156

$125.86

CAP-FUEL,TETHER,CHR [CHINA]

2522281-156

$111.33

PUMP-FUEL

2522476

$449.99

K-SVC, FUEL FILTER

2207067

Unavailable

PLUG, SWITCH, CONSOLE, CHROME

5451070-156

$23.81

SWITCH-SADDLEBAG LOCK V2 (SEE "ELECTRICAL, COMPONENTS 1")

----

Unavailable

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

GASKET-CHARGE PORT

5815146

$29.99

BUMPER-CAP,FUEL [CHINA]

5417339

$5.65
