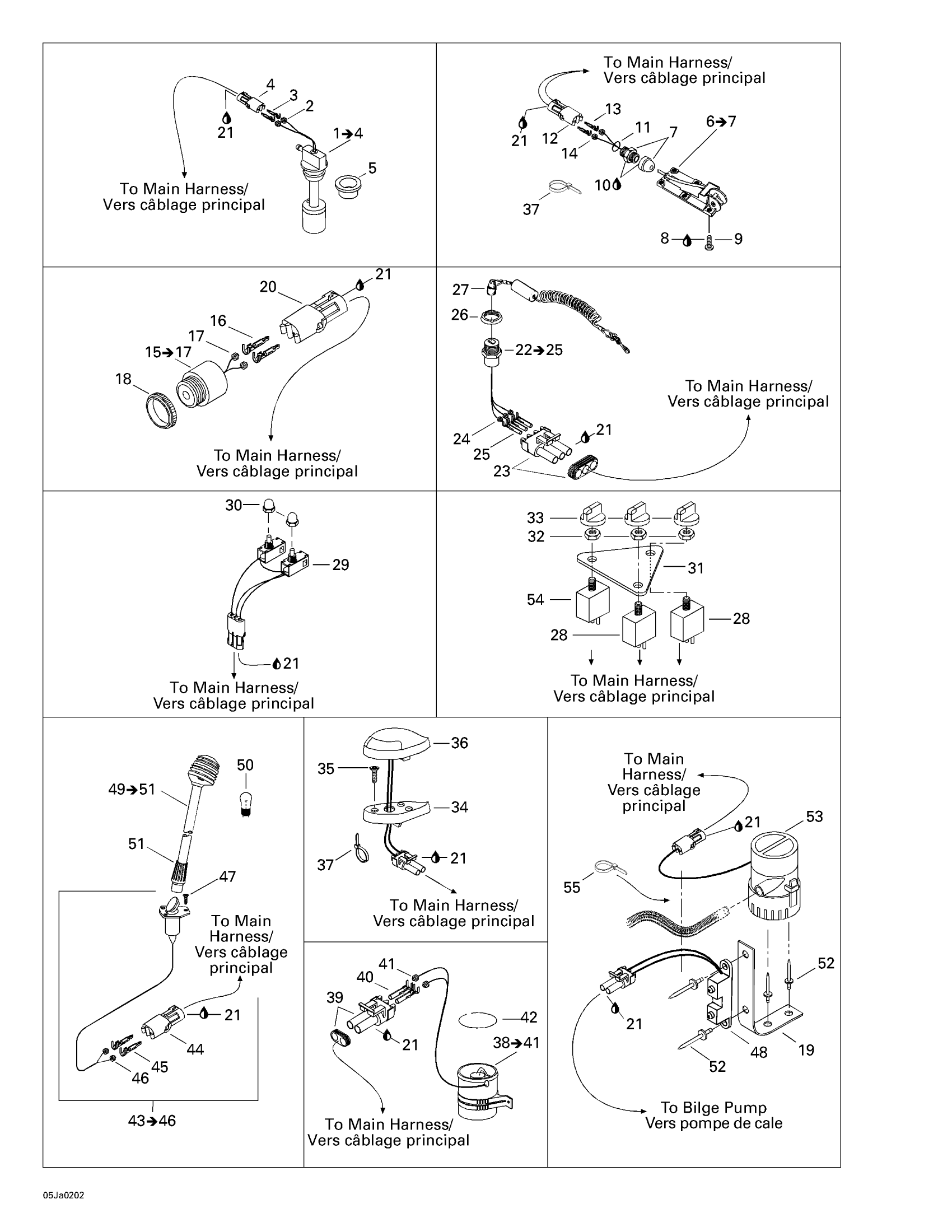

Sea-doo Sportster LT, 5493, 2002 Electrical Accessories 2 Diagram

#

Description
Price

1

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

2

Wire Seal

278000218

$4.39

3

Male Terminal | XT Models

278000222

$3.19

4

Female Housing, 2 Circuits

278000217

$9.59

5

Grommet

293720008

$14.75

6

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

7

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

8

Loctite 243, 10 ml

293800060

$21.49

9

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

10

Silicone Sealant 51388, 300 ml

296000309

$36.99

11

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

12

Female Housing, 2 Circuits

278000217

$9.59

13

Male Terminal | XT Models

278000222

$3.19

14

Wire Seal

278000218

$4.39

15

BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3

278000881

Unavailable

16

Male Terminal | XT Models

278000222

$3.19

17

Wire Seal

278000218

$4.39

18

Buzzer Nut

278000707

Unavailable

19

Sensor Support

204470058

Unavailable

20

Female Housing, 2 Circuits

278000217

$9.59

21

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

22

Safety Switch This part replaces 278002325.

278002773

$114.99

23

Male Housing, 3 Circuits

278000273

$9.59

24

Wire Seal

278000218

$4.39

25

Female Terminal

278000223

$3.19

26

Safety Nut (DESS Switch)

278002963

$3.28

27

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

28

Fan Switch

278000540

Unavailable

29

IGNITION SWITCH - Call your local BRP dealership | Replaced by Single Switch (Cutting and Splicing Required

204470142

Unavailable

30

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Switch Nut

278000647

Unavailable

33

SWITCH CAP - Call your local BRP dealership

278000542

Unavailable

34

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

35

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

36

Front Lamp

204470311

Unavailable

37

Tie Wrap 94 mm | 4X4

293750001

$1.03

38

Fan Ass'y | Includes 44 to 47

204470108

$144.99

39

Male Connector, 2 Circuits

278000220

$15.49

40

Female Terminal

278000223

$3.19

41

Wire Seal

278000218

$4.39

42

BROACH - Call your local BRP dealership

204000133

Unavailable

43

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

44

Female Housing, 2 Circuits

278000217

$9.59

45

Male Terminal | XT Models

278000222

$3.19

46

Wire Seal

278000218

$4.39

47

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

48

WATER SENSOR - Call your local BRP dealership

204470038

Unavailable

49

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

50

Bulb

204470053

Unavailable

51

COLLAR - Call your local BRP dealership

204470350

Unavailable

52

Bilge Pump This part replaces 204470220.

278002020

$99.49

53

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

54

Light Switch

278000541

Unavailable

55

Tie-Rap 180 mm

414115200

$0.11
