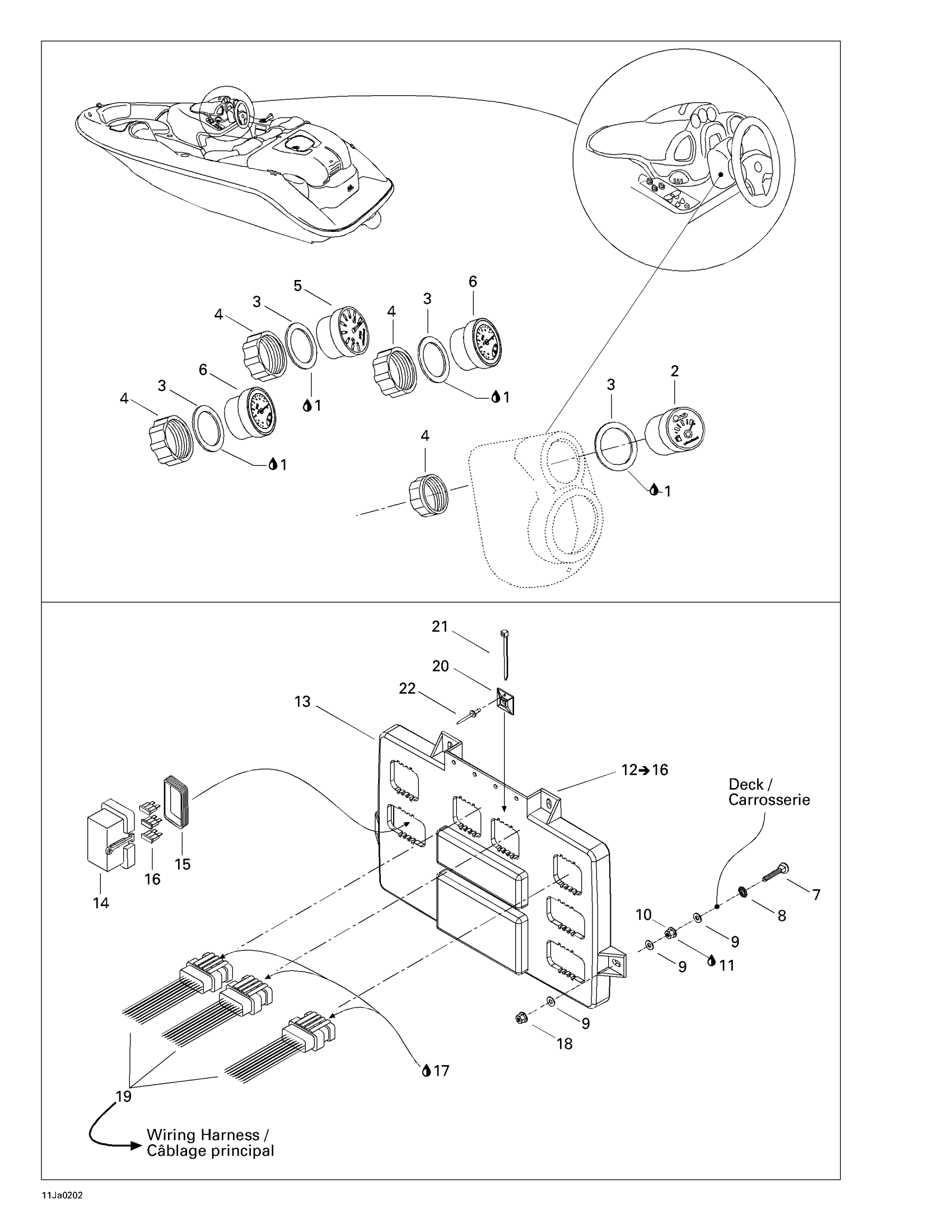

Sea-doo Sportster LT, 5493, 2002 Electrical Accessories 1 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

Fuel/Oil Gauge

204470319

Unavailable

3

Gasket

204470308

Unavailable

4

Gauge Nut

204470146

Unavailable

5

Speedometer Gauge

204470322

Unavailable

6

Tachometer Gauge

204470321

Unavailable

7

Elevator Bolt

204000130

Unavailable

8

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

9

Flat Washer M6, Stainless

234062600

$0.77

10

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

11

Loctite 271, 10 ml

293800005

$26.99

12

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 12 - 16.

204470731

Unavailable

13

Module Housing

204470201

Unavailable

14

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

15

Cover Seal

278001070

Unavailable

16

Fuse, 10 Amperes | North America

278001197

$2.21

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.28

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

17

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

18

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

19

Harness Ass'y

204470284

Unavailable

20

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

21

Tie Rap

914115200

Unavailable

22

Pop Rivet 3/16"

293150008

$0.50
