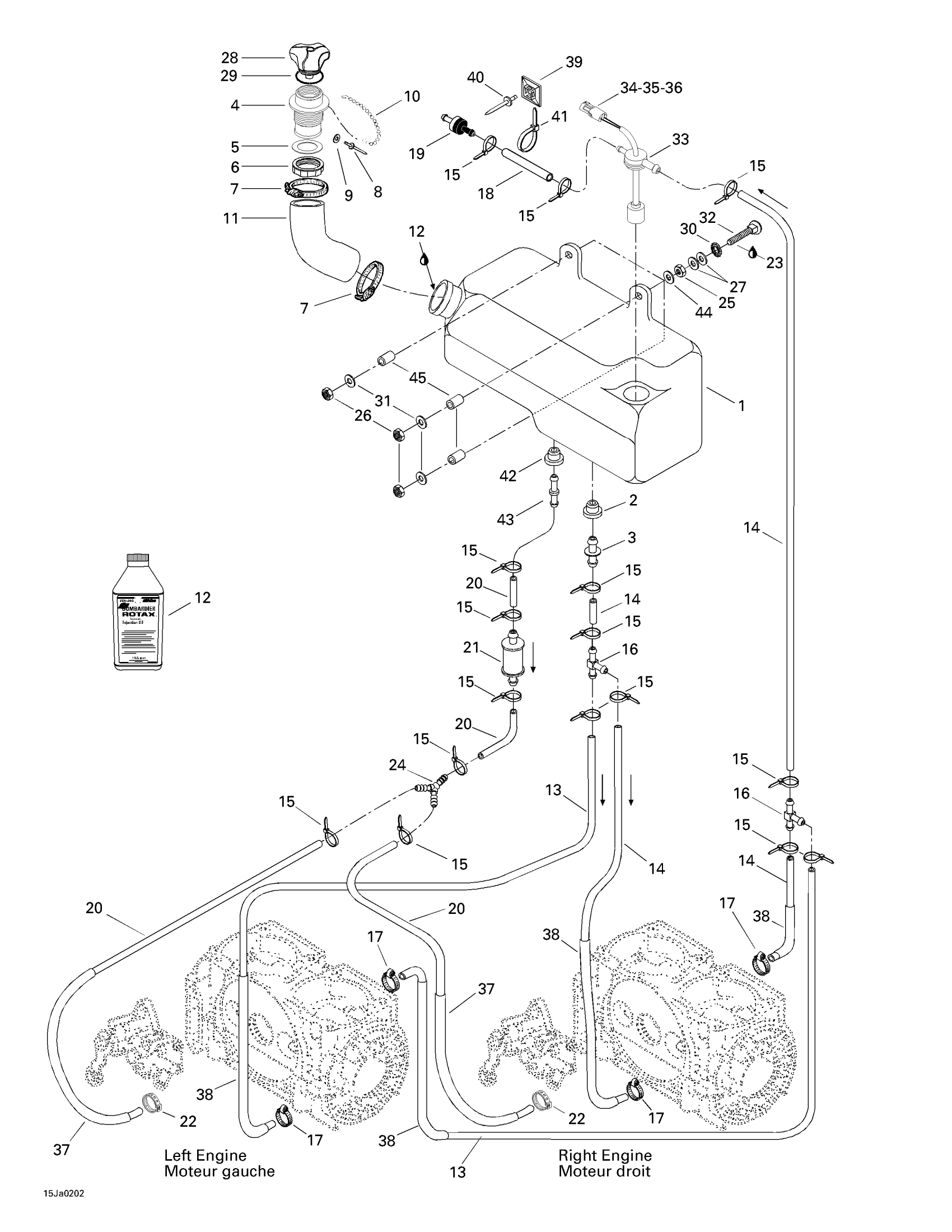

Sea-doo Sportster LT, 5493, 2002 Oil Injection System Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

204550029

Unavailable

2

Grommet | Europe

707800347

$10.49

3

STRAIGHT FITTING - Call your local BRP dealership

293710045

Unavailable

4

FILLER NECK - Call your local BRP dealership

275000242

Unavailable

5

Gasket

293250132

Unavailable

6

Nut-Neck Oil Filler

211100013

Unavailable

7

Norma Clamp

293650077

$7.41

8

Pop Rivet 1/8"

293150056

Unavailable

9

Flat Washer M3, Stainless

234032600

$0.55

10

Oil Cap Chain

275500015

Unavailable

11

Formed Hose

204550150

Unavailable

12

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

$43.99

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

13

Was 275500008 Hose 12 mm

219704356

$20.49

14

Was 275500008 Hose 12 mm

219704356

$20.49

15

Tie Wrap 94 mm | 4X4

293750001

$1.03

16

T-FITTING - Call your local BRP dealership

293710053

Unavailable

17

Tridon Gear Clamp

293650170

$1.99

18

Hose 6 Mm 15000Mm Long

219704360

$132.49

19

Check Valve

275500398

$10.99

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

22

Oetiker Clamp

293650042

$3.09

23

Loctite 271, 10 ml

293800005

$26.99

24

Y-Fitting

204550001

Unavailable

25

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

26

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

27

Stainless, Flat Washer 8 mm

234081600

$0.55

28

Oil Cap

275000186

Unavailable

29

O-RING - Call your local BRP dealership

293250025

Unavailable

30

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

31

Flat Washer M6, Stainless

234062600

$0.77

32

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable

33

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

34

Female Housing, 2 Circuits

278000217

$9.59

35

Male Terminal | XT Models

278000222

$3.19

36

Wire Seal

278000218

$4.39

37

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable

38

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

39

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

40

Pop RIvet 1/8 X ,375

293150285

$0.33

41

Tie Wrap 94 mm | 4X4

293750001

$1.03

42

Grommet

709200285

$9.69

43

STRAIGHT FITTING - Call your local BRP dealership

293710046

Unavailable

44

Flat Washer M6, Stainless

234062600

$0.77

45

SPACER SLEEVE - Call your local BRP dealership

204550033

Unavailable
