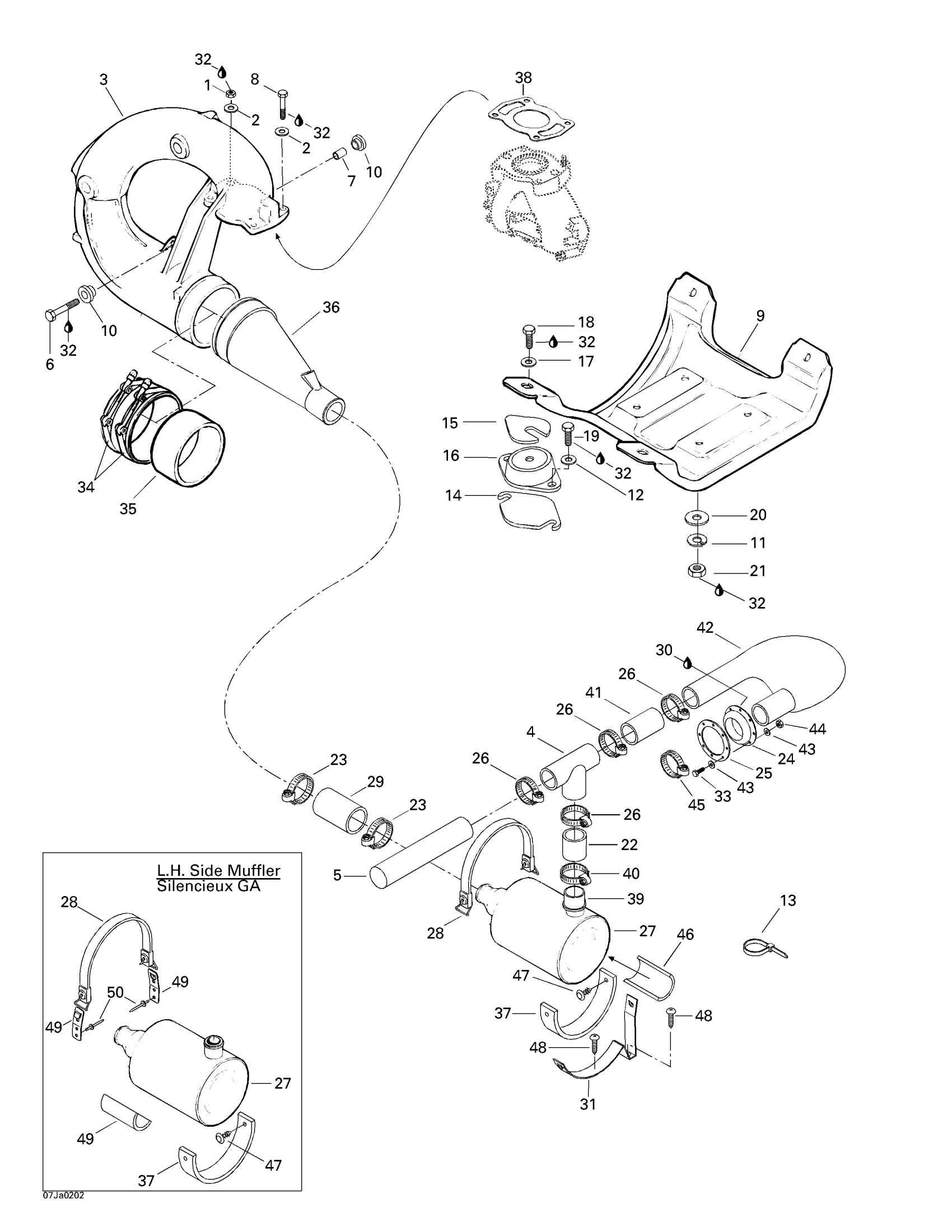

Sea-doo Sportster LT, 5493, 2002 Engine Support And Muffler Diagram

#

Description
Price

1

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

2

Flat Washer

211200051

$1.68

3

Tuned Pipe Ass'y | Includes 1 - 4.

204340360

Unavailable

4

T Fitting

204340064

Unavailable

5

Resonateur

204340065

Unavailable

6

Hex. Screw M8 X 40

207084060

$2.22

7

Bushing

274000114

$8.85

8

Socket Screw M10 X 30

205003060

Unavailable

9

Engine Support

204250074

Unavailable

10

Rubber Bushing

293830031

Unavailable

11

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

Tie Wrap 368 mm

293750008

$1.04

14

Shim 0.4 mm

270000006

Unavailable

Shim 1.3 mm

270000007

Unavailable

Shim 3.3 mm

270000143

Unavailable

15

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

16

Rubber Mount

270000425

$71.99

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

19

Hex. Screw M8 X 30

207183060

$1.58

20

Flat Washer 10 mm, Stainless

234001600

$1.15

21

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

22

Exhaust Hose

204340063

Unavailable

23

Norma Clamp

293650077

$7.41

24

Gasket

293250096

Unavailable

25

Ring

274000277

Unavailable

26

Tridon Clamp

293650064

$8.29

27

Muffler

274000491

Unavailable

28

Retainer Strap

293850097

$11.64

29

Exhaust Hose

274000170

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

Muffler Support

274000234

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

Hex. Screw M6 X 25

207162560

$1.47

34

NORMA CLAMP - Call your local BRP dealership

293650068

Unavailable

35

Sealing Ring

274000074

Unavailable

36

Exhaust Cone Ass’Y

274000488

Unavailable

37

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

38

Exhaust Gasket This part replaces 290950253.

420950253

$14.83

39

Hose Adaptor

274000383

Unavailable

40

Norma Clamp

293650079

$11.60

41

RH Exhaust Hose

204340066

Unavailable

LH Exhaust Hose

204340067

Unavailable

42

RH Expansion Chamber

204340061

Unavailable

LH Expansion Chamber

204340060

Unavailable

43

Stainless Flat Washer M6

234061600

$0.33

44

Hex. Elastic Stop Nut M6

232561600

$1.15

45

NORMA CLAMP - Call your local BRP dealership

293650076

Unavailable

46

Protector Pad

204340145

Unavailable

47

Black, Dart

293730006

$0.99

48

Tapping Screw M6.3 X 32

209663260

Unavailable

49

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

50

Pop Rivet 3/16"

293150008

$0.50
