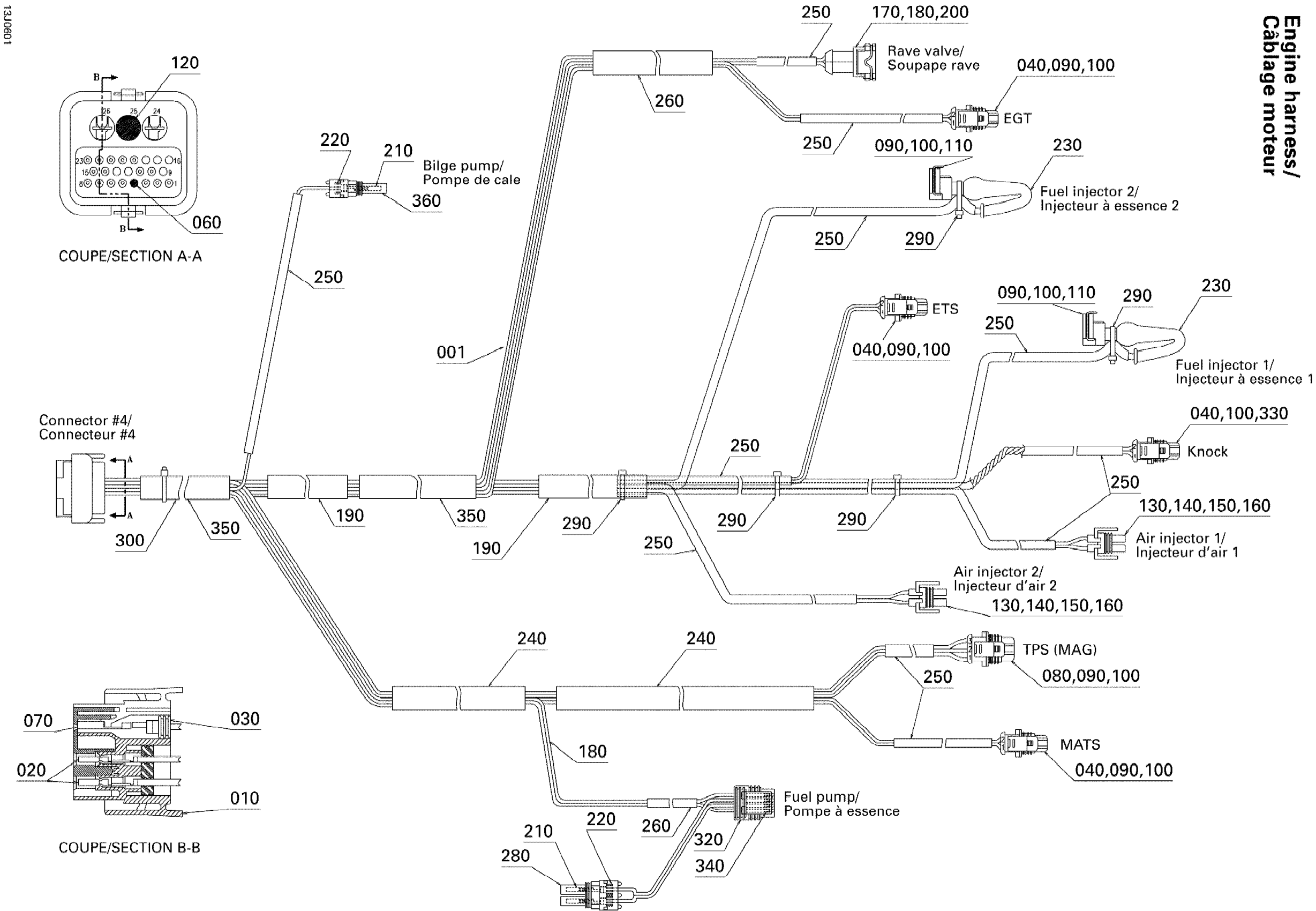

Sea-doo Sportster LE DI, 2006 10- Electrical Harness Diagram
#
Description
Price
001
Engine Harness Ass'y | Includes 001 to 360
204470865
Unavailable
010
MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership
278001211
Unavailable
020
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
030
Seal
278001223
Unavailable
040
Male Housing, 2 Circuits
278001005
$19.49
060
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
070
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
080
Male Housing, 3 Circuits
278000997
$19.49
090
Female Terminal
278000998
$4.39
100
Wire Seal
278000999
$3.19
110
Male Connector, 2 Circuits
278001003
$46.49
120
SEAL - Call your local BRP dealership
409013900
Unavailable
130
MALE CONNECTOR, 2 CIRCUITS - Call your local BRP dealership
278001480
Unavailable
140
Female Terminal
278001481
$3.49
150
Seal
278001482
$3.19
160
LOCK, 2 CIRCUITS - Call your local BRP dealership
278001483
Unavailable
170
Female Terminal
278000998
$4.39
180
Wire Seal
278000999
$3.19
190
Not Available As Spare Part - Friction Washer
Unavailable
200
Male Connector, 2 Circuits
278001003
$46.49
210
Female Terminal
278000223
$3.19
220
Wire Seal
278000218
$4.39
230
RUBBER CAP - Call your local BRP dealership
278001484
Unavailable
240
Not Available As Spare Part - Friction Washer
Unavailable
250
Not Available As Spare Part - Friction Washer
Unavailable
260
Not Available As Spare Part - Friction Washer
Unavailable
280
Male Connector, 2 Circuits
278000220
$15.49
290
Tie Wrap 94 mm | 4X4
293750001
$1.03
300
Tie Wrap 142 mm
293750002
$1.25
320
MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership
278001308
Unavailable
330
FEMALE TERMINAL - Call your local BRP dealership
278001210
Unavailable
340
Female Terminal
278001114
$3.19
350
Not Available As Spare Part - Friction Washer
Unavailable
360
Not Available As Spare Part - Friction Washer
Unavailable
