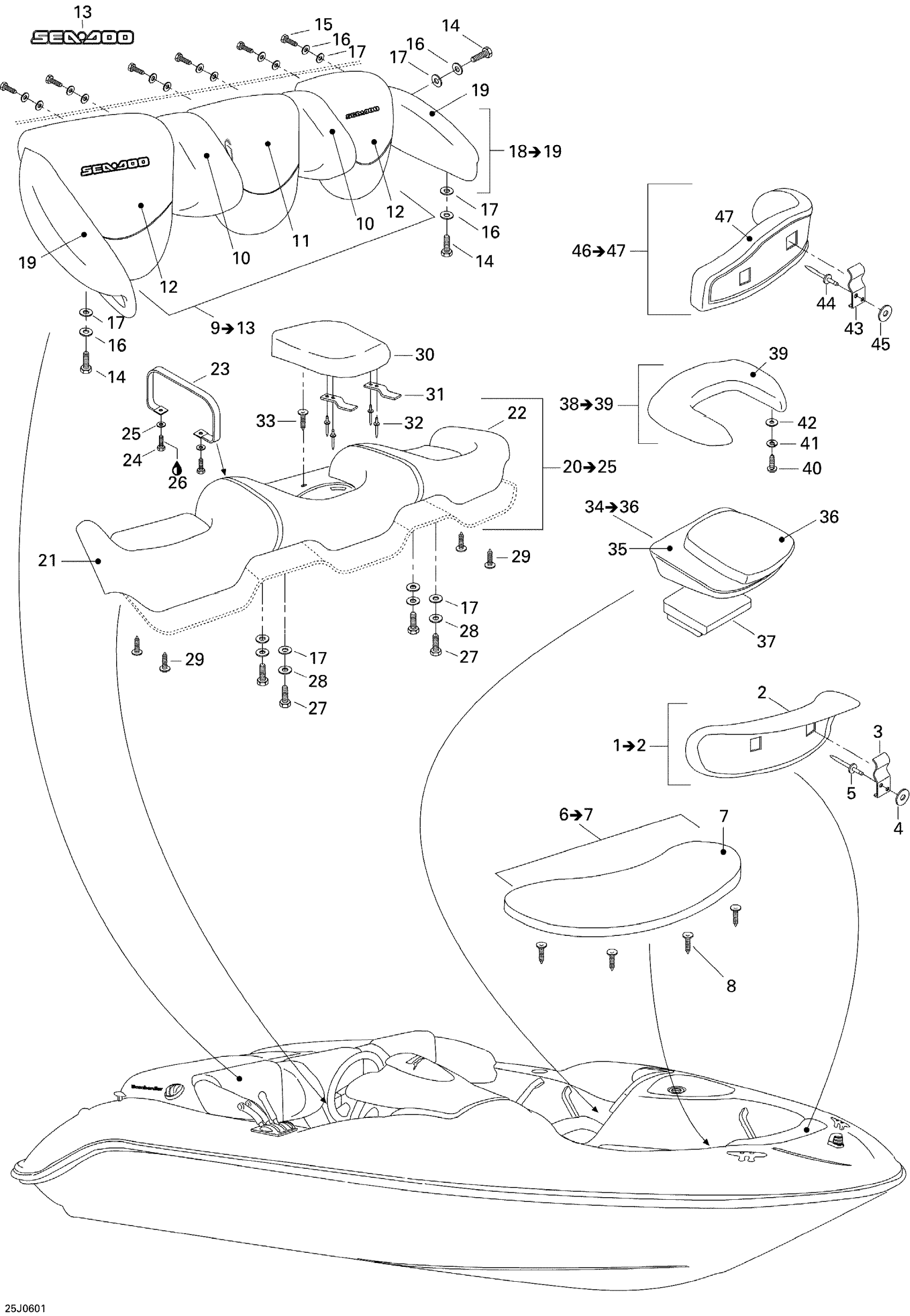

Sea-doo Sportster LE DI, 2006 09- Seat Diagram
#
1
Front Backrest, Bright Yellow | Includes 1 to 2
204611715
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
4
Stainless Flat Washer M6
234061600
$0.33
5
Pop Rivet 3/16"
293150043
$2.09
6
Front Seat | Includes 6 to 7
204611717
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Black, Dart
293730006
$0.99
9
Rear Backrest Ass'y, Metallic Quartz | Includes 9 to 13
204612886
Unavailable
10
Backrest Cover, Bright Yellow
204611720
Unavailable
11
Center Backrest Cover, Metallic Quartz
204612887
Unavailable
12
Starboard Backrest Cover, Quartz Metal.
204612888
Unavailable
12
Port Side Backrest Cover, Quartz Metal.
204612889
Unavailable
13
Sea-doo Logo
204901090
Unavailable
14
Hex. Screw M6 X 40, Scotch Grip
207364060
Unavailable
15
Hex. Screw M6 X 40, Scotch Grip
207364060
Unavailable
16
Flat Washer M6, Stainless
234062600
$0.77
17
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
18
Armrest Ass'y, Port Side | Includes 18 to 19
204611724
Unavailable
18
Armrest Ass'y, Starboard | Includes 18 to 19
204611726
Unavailable
19
Armrest Cover
204611727
Unavailable
20
Rear Seat Ass'y | Includes 20 to 25
204612618
Unavailable
21
Rear Seat Cover, Bright Yellow
204611729
Unavailable
22
Cushion Ass'y
204611730
Unavailable
23
Rear Seat Strap, Bright Yellow
204611732
Unavailable
24
Hex. Screw M6 X 16
207161660
$1.59
25
Flat Washer M6, Stainless
234062600
$0.77
26
Loctite 243, 10 ml
293800060
$21.49
27
Hex. Screw M6 X 40, Scotch Grip
207364060
Unavailable
28
Flat Washer M6, Stainless
234062600
$0.77
29
Dart
293730021
$7.79
30
Cushion Ass'y
204612688
Unavailable
31
S-clip
204130048
Unavailable
32
Pop Rivet 3/16"
293150008
$0.50
33
Dart
293730021
$7.79
34
Keeper Seat Ass'y | Includes 34 to 36
204613172
Unavailable
35
Keeper Seat Base Cover
204610557
Unavailable
36
Keeper Seat Cover
204611734
Unavailable
37
Not Available As Spare Part - Friction Washer
Unavailable
38
Keeper Seat Ring Ass'y, Bright Yellow | Includes 38 to 39
204611735
Unavailable
39
Keeper Seat Ring Cover
204611736
Unavailable
40
Tapping Phillips Screw 6.3 X 38
209663860
Unavailable
41
Lock Washer Helical M6
234161601
$1.15
42
Stainless Flat Washer M6
234061600
$0.33
43
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
44
Pop Rivet 3/16"
293150043
$2.09
45
Stainless Flat Washer M6
234061600
$0.33
46
Keeper Seat Backrest | Includes 46 to 47
204611652
Unavailable
47
Not Available As Spare Part - Friction Washer
Unavailable
