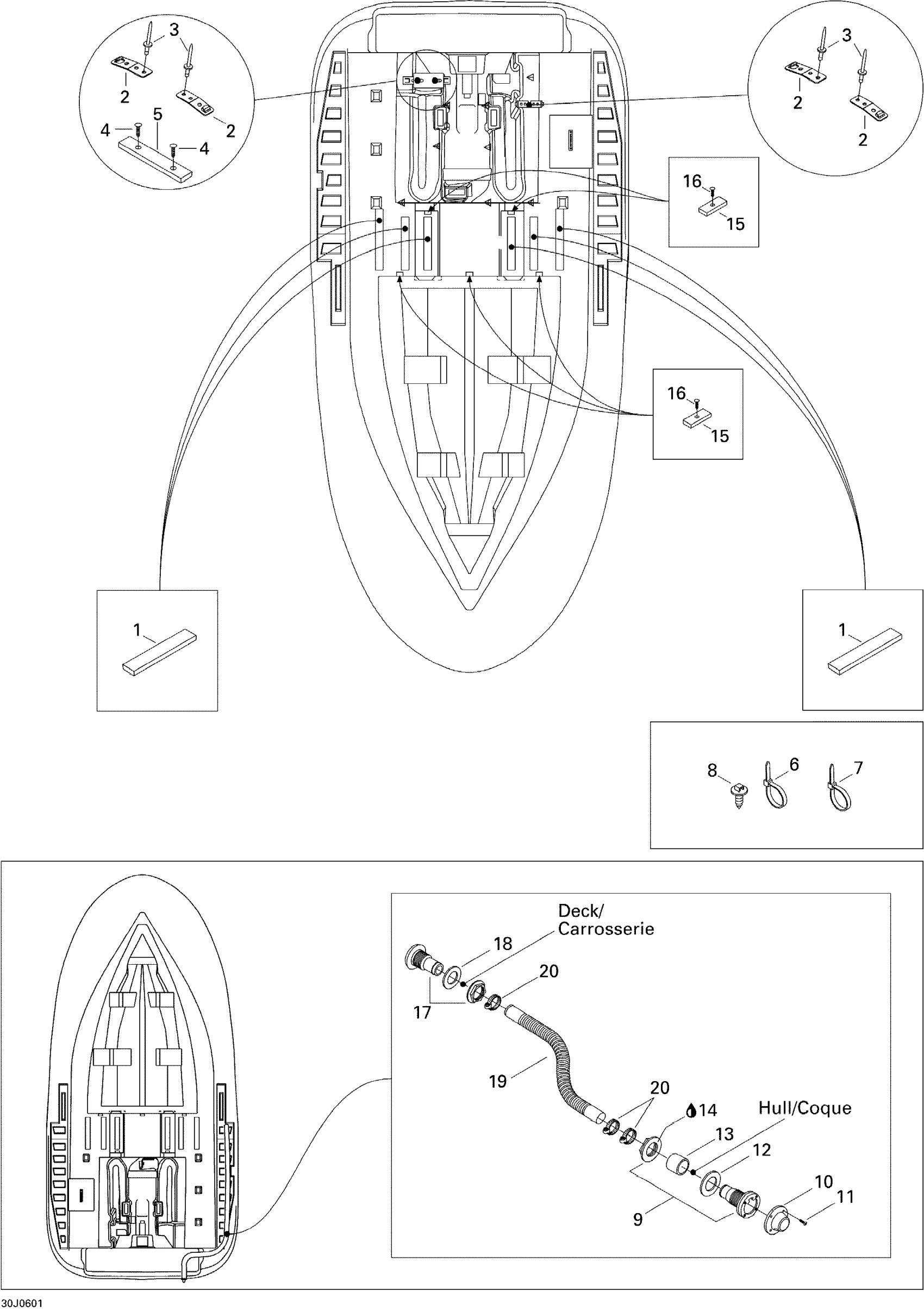

Sea-doo Sportster LE DI, 2006 Lower Hull Diagram

#

Description
Price

1

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

2

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

3

Pop Rivet 3/16"

293150088

$0.99

4

Black, Dart

414644300

$0.98

5

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

6

Tie Wrap 368 mm

293750008

$1.04

7

Tie-Rap 180 mm

414115200

$0.11

8

Mount Dart

293730040

$1.04

9

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

10

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

11

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

12

GASKET - Call your local BRP dealership

292800106

Unavailable

13

Scupper Spacer

204060625

Unavailable

14

Silicone Sealant 51388, 300 ml

296000309

$36.99

15

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

16

Black, Dart

293730006

$0.99

17

FITTING - Call your local BRP dealership

293710060

Unavailable

18

GASKET - Call your local BRP dealership

292800106

Unavailable

19

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

20

Norma Clamp

293650074

$17.05
