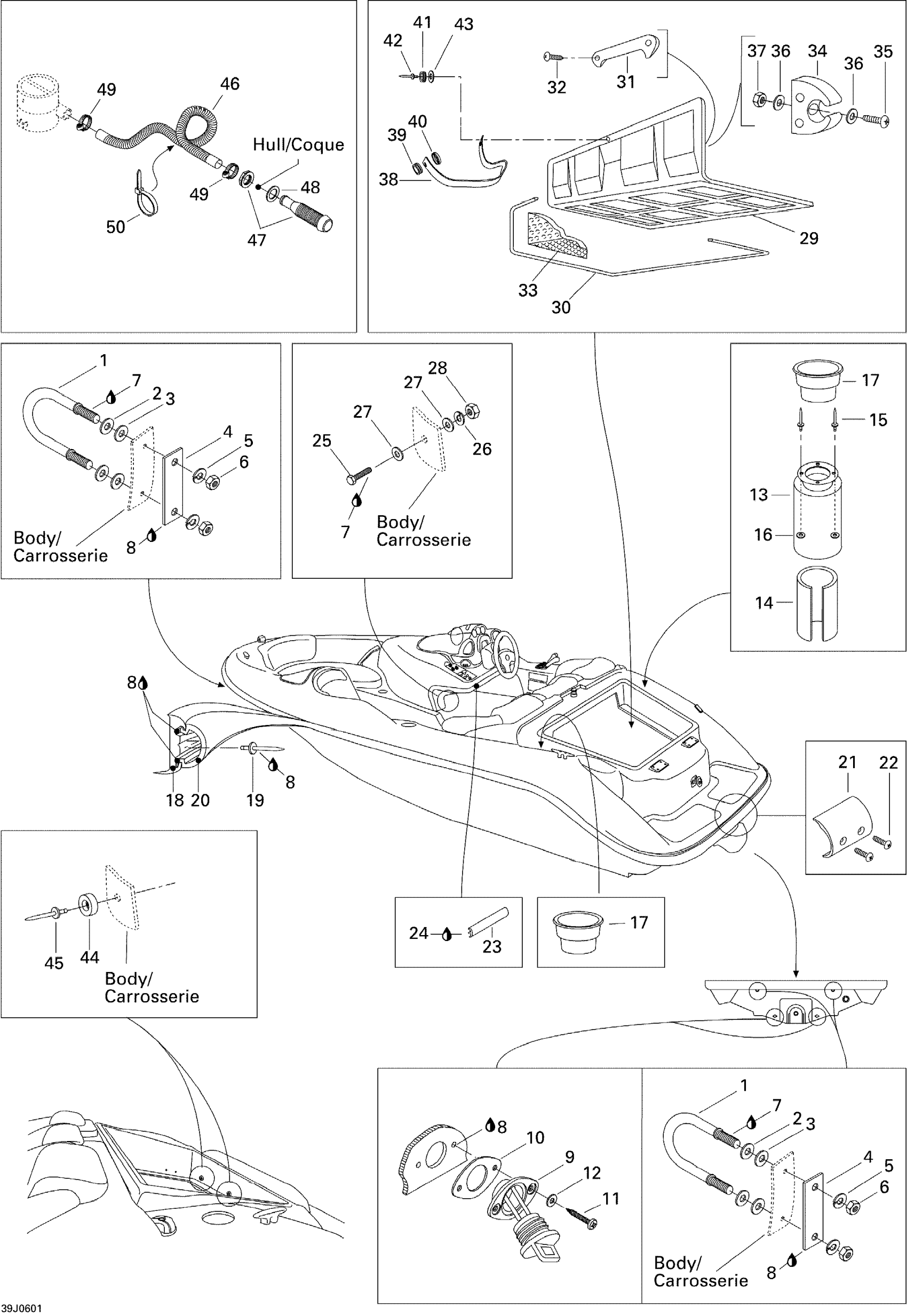

Sea-doo Sportster LE DI, 2006 Hull Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

Flat Washer M8.5 x 18

293050001

$3.07

3

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

4

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

5

Lock Washer 8 mm, Stainless

234181601

$0.55

6

Hex. Nut M8

232081600

$1.47

7

Loctite 271, 10 ml

293800005

$26.99

8

Silicone Sealant 51388, 300 ml

296000309

$36.99

9

Drain Plug

292000187

$14.49

10

GASKET - Call your local BRP dealership

293250030

Unavailable

11

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

12

Flat Washer 4 mm, Stainless

234041600

$1.15

13

Rear Hose Vent

204050004

Unavailable

14

Sound Damping

291000400

Unavailable

15

Pop Rivet 3/16"

293150014

$1.09

16

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

17

Cup Holder

291000914

Unavailable

18

BUMPER - Call your local BRP dealership

204050458

Unavailable

19

Pop Rivet 3/16"

293150013

$1.37

20

TRIM - Call your local BRP dealership

204050459

Unavailable

21

BUMPER COVER - Call your local BRP dealership

291000905

Unavailable

22

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

23

TRIM, WHITE - Call your local BRP dealership

204050042

Unavailable

24

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

25

Hex. Screw M5 X 35

207153560

Unavailable

26

Helical Lock Washer M5

234151601

$1.15

27

Flat Washer 5 mm, Stainless

234052600

$0.77

28

Hex. Nut M5

232051600

$1.15

29

Access Cover

204050613

Unavailable

30

Seal Tray 1000Mm Long

219704368

$13.99

31

HANDLE, WHITE - Call your local BRP dealership

291000608

Unavailable

32

Hex. Flange Screw K40 X 16

241141660

$1.48

33

Luggage Foam

237500013

Unavailable

34

Pole Support

291000642

Unavailable

35

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

36

Flat Washer 4 mm

234040600

$0.55

37

Elastic Stop Nut M4

232541600

$1.15

38

NYLON STRAP - Call your local BRP dealership

204070106

Unavailable

39

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

40

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

41

BOTTOM SNAP - Call your local BRP dealership

204000084

Unavailable

42

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

43

Flat Washer M3, Stainless

234032600

$0.55

44

Rubber Stopper

293830043

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

47

Fitting

293710162

$13.49

48

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

49

Tridon Clamp

293650016

$10.99

50

Tie-Rap 180 mm

414115200

$0.11
