- Sportster LE DI, 2006
09- Engine Compartment And Accessories

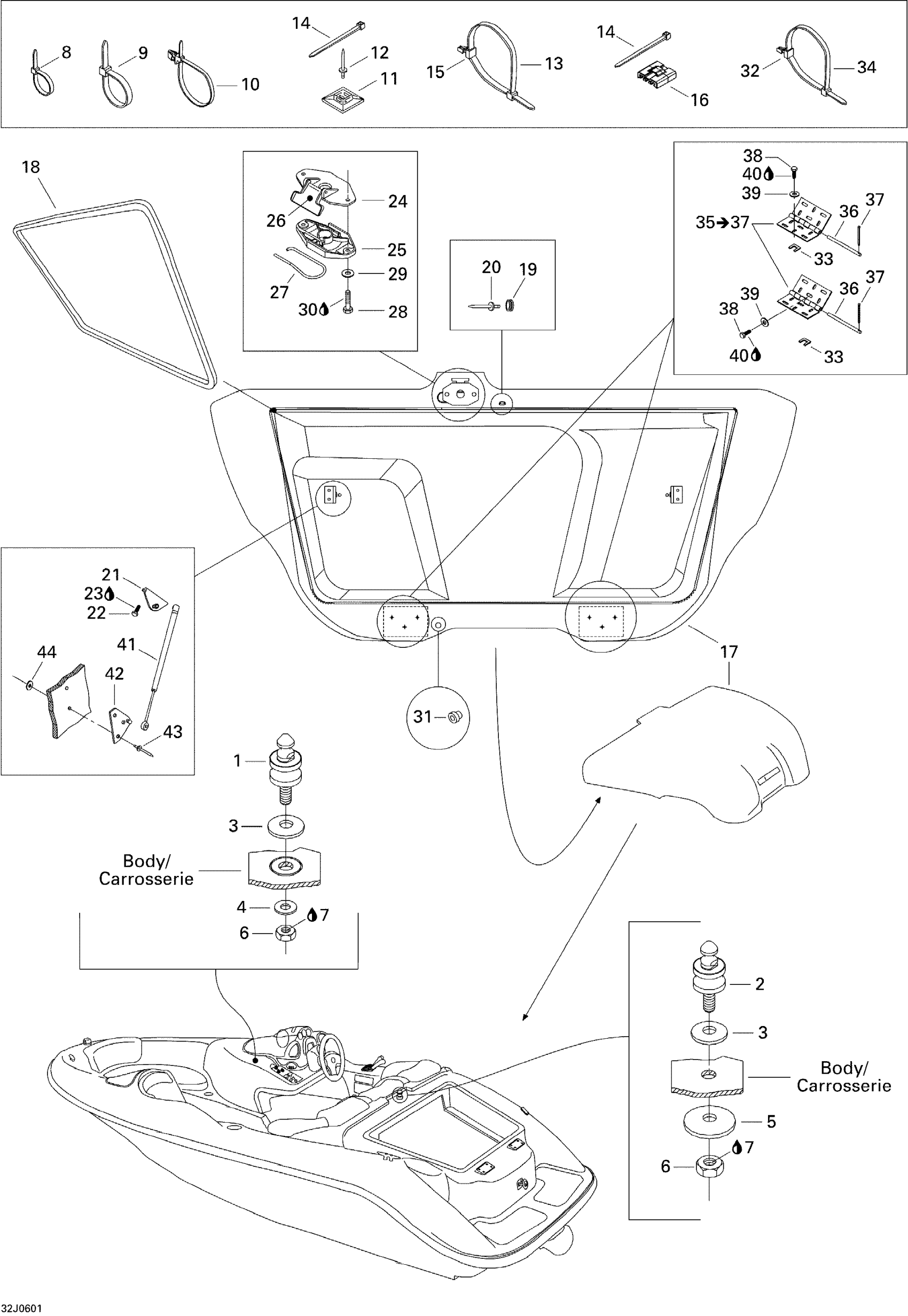

Sea-doo Sportster LE DI, 2006 09- Engine Compartment And Accessories Diagram
#
1
Latch Stud
291001420
Unavailable
2
Latch Stud
291001420
Unavailable
3
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
4
Flat Washer 10 mm, Stainless
234002600
$2.22
5
Washer 3/8" X 1-1/2"
204100160
Unavailable
6
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
7
Loctite 243, 10 ml
293800060
$21.49
8
Tie Wrap 142 mm
293750002
$1.25
9
Tie Wrap 368 mm
293750008
$1.04
10
TIE RAP WITH DART - Call your local BRP dealership
204130098
Unavailable
11
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
12
Pop Rivet 3/16"
293150088
$0.99
13
Tie Wrap 368 mm
293750008
$1.04
14
Tie-Rap 180 mm
414115200
$0.11
15
DART, BLACK - Call your local BRP dealership
204130099
Unavailable
16
Tie-Rap Mount
293750025
$1.25
17
Engine Cover
204072058
Unavailable
18
Was 293200017 Neoprene Seal
219704365
$149.99
19
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
20
Pop Rivet 1/8”
293150015
$0.40
21
Shock Bracket
204073074
$27.99
22
Hex. Screw M4 X 16 | Europe
207141660
$1.47
23
Loctite 243, 10 ml
293800060
$21.49
24
Latch Ass'y
269700109
$24.99
25
Latch Ass'y
269700109
$24.99
26
Latch Ass'y
269700109
$24.99
27
Latch Spring
269700017
$9.19
28
Hex. Screw M6 X 25
207162560
$1.47
29
Stainless Flat Washer M6
234061600
$0.33
30
Loctite 243, 10 ml
293800060
$21.49
31
GROMMET - Call your local BRP dealership
293720017
Unavailable
32
Tie-Rap Mount
293750025
$1.25
33
SPACER 3.2 MM - Call your local BRP dealership
204070047
Unavailable
34
Tie Wrap 142 mm
293750002
$1.25
35
HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21
204070127
Unavailable
36
HINGE ROD - Call your local BRP dealership
204070204
Unavailable
37
Cotter Pin M2.5 X 12
204070205
Unavailable
38
Hex. Screw M6 X 25
207162560
$1.47
39
Stainless Flat Washer M6
234061600
$0.33
40
Loctite 243, 10 ml
293800060
$21.49
41
GAS SHOCK - Call your local BRP dealership
204071874
Unavailable
42
Shock Bracket
204071673
Unavailable
43
Pop Rivet 3/16"
293150043
$2.09
44
Flat Washer M5, Stainless
234051600
$0.77
