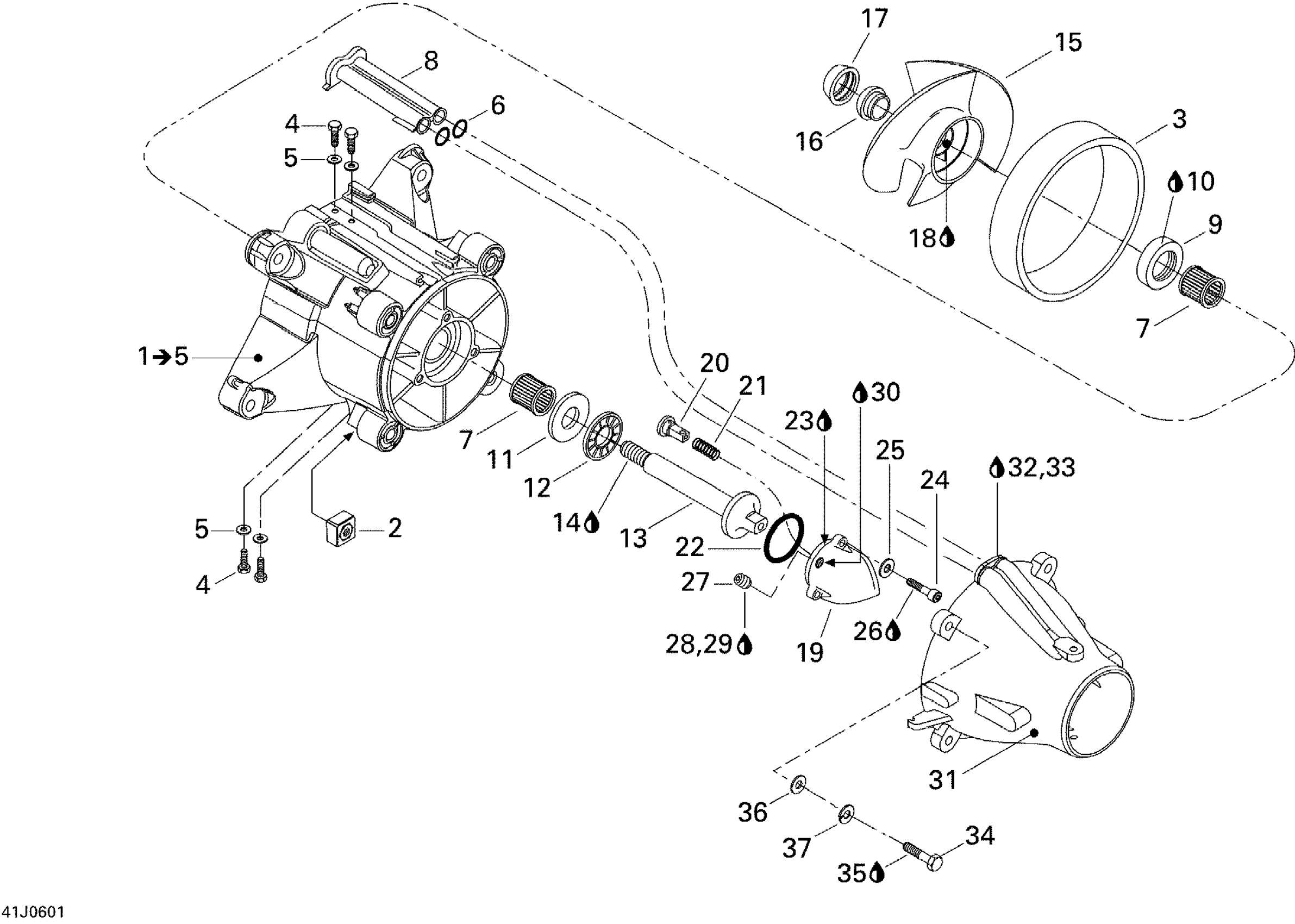

Sea-doo Sportster LE DI, 2006 Pump Diagram

#

Description
Price

1

HOUSING ASSY - Call your local BRP dealership | Includes 1 to 5

271001381

Unavailable

2

Square Nut M8

211100033

$17.99

3

Wear Ring

271000653

$58.49

4

Hex. Plastite Screw #10 X 3/8"

250000040

$1.05

5

Flat Washer M5, Stainless

234051600

$0.77

6

O-Ring

293300013

$8.18

7

Needle Bearing

293350017

$27.99

8

Water Outlet

271000785

$3.80

9

Oil Seal

267000094

$22.49

10

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

11

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

12

Thrust-Bearing

293350022

$45.99

13

Impeller Shaft

271000965

$116.49

14

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

15

Impeller Assy - Call your local BRP dealership

204160136

Unavailable

16

Impeller Boot

271000516

$9.59

17

Impeller Ring

271000517

$9.59

18

Was 293800041 Loctite Primer 7649

219704458

$39.99

19

IMPELLER COVER - Call your local BRP dealership

271001250

Unavailable

20

PUSHER - Call your local BRP dealership

271000978

Unavailable

21

SPRING - Call your local BRP dealership

271000973

Unavailable

22

O-Ring

293300011

$8.64

23

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

24

Socket Head Screw M6 X 25

205062560

$1.69

25

Stainless Flat Washer M6

234061600

$0.33

26

Loctite 243, 10 ml

293800060

$21.49

27

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

28

Was 293800013 Loctite 56765

219704454

$65.99

29

Was 293800041 Loctite Primer 7649

219704458

$39.99

30

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

31

Venturi, Black

204160191

Unavailable

32

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

33

Was 293800041 Loctite Primer 7649

219704458

$39.99

34

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

35

Loctite 243, 10 ml

293800060

$21.49

36

Flat Washer M8.5 x 18

293050001

$3.07

37

Lock Washer 8 mm, Stainless

234181601

$0.55
