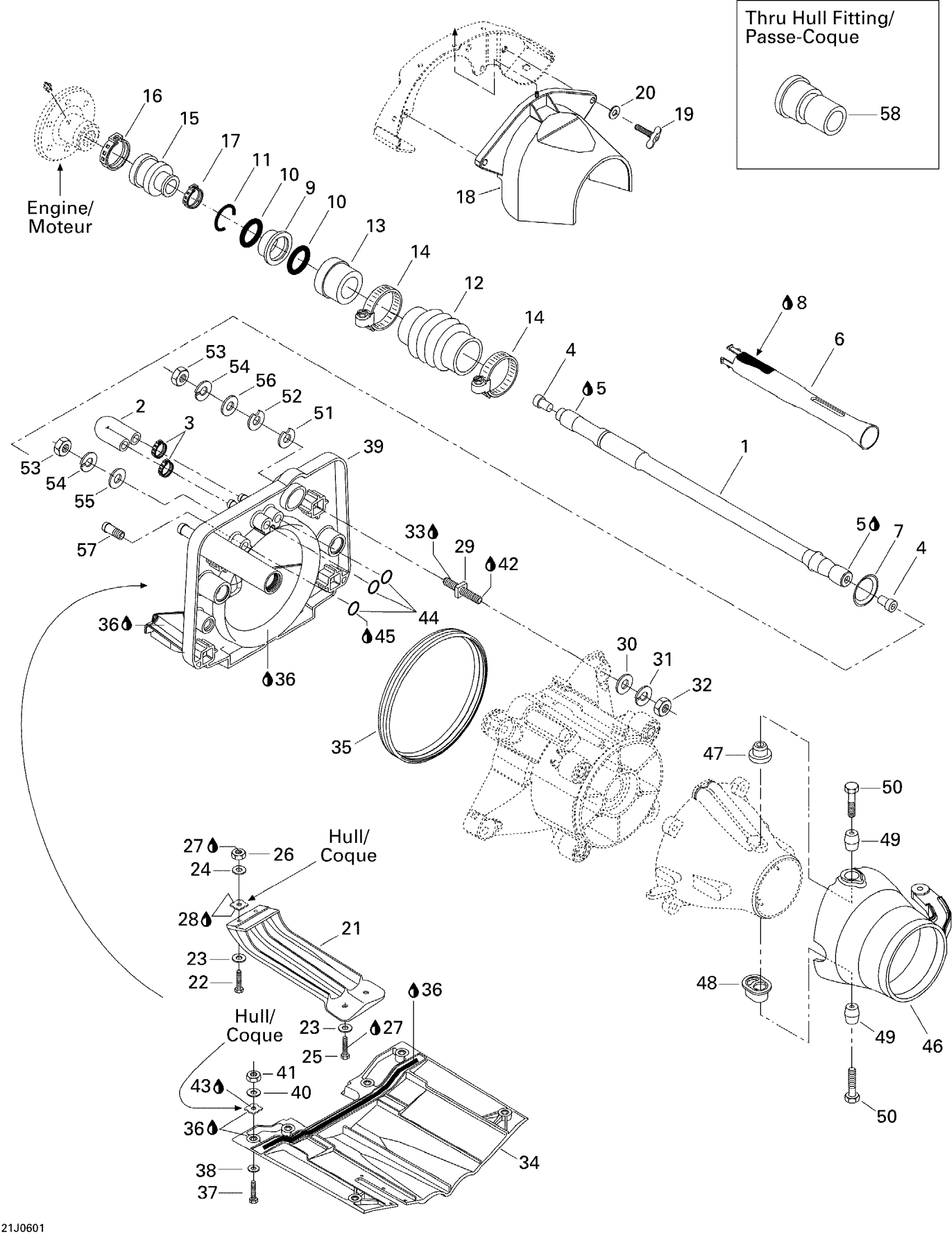

Sea-doo Sportster LE DI, 2006 05- Propulsion Diagram
#
1
DRIVE SHAFT - Call your local BRP dealership
272000151
Unavailable
2
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
3
Oetiker Clamp
293650042
$3.09
4
DRIVE SHAFT PLUG - Call your local BRP dealership
272000019
Unavailable
5
Synthetic Grease, 400 G
293550010
Unavailable
6
SHAFT PROTECTEUR - Call your local BRP dealership
204120135
Unavailable
7
Retaining Ring
204120132
Unavailable
8
Instant Gasket
219701421
$51.99
9
Support Ring
272000064
$66.49
10
O-Ring
293300032
$6.03
11
C-CLIP - Call your local BRP dealership
272000135
Unavailable
12
BELLOWS - Call your local BRP dealership
272000184
$27.99
13
Carbon Ring
272000770
$45.99
14
Norma Clamp
293650075
$11.06
15
RUBBER BOOT - Call your local BRP dealership
272000001
Unavailable
16
OETIKER CLAMP - Call your local BRP dealership
293650021
Unavailable
17
OETIKER CLAMP - Call your local BRP dealership
293650067
Unavailable
18
FLYWHEEL GUARD - Call your local BRP dealership
272000094
Unavailable
19
Wing Screw M8 X 25
207982510
Unavailable
20
Flat Washer 8 mm, Stainless
234082600
$2.43
21
PUMP GRATE - Call your local BRP dealership
271000790
Unavailable
22
Hex. Screw M6 X 45
207164560
$1.89
23
Stainless Flat Washer M6
234061600
$0.33
24
Flat Washer M6, Stainless
234062600
$0.77
25
Hex. Screw M6 X 16
207161660
$1.59
26
Hex. Elastic Stop Nut M6
232561600
$1.15
27
Loctite 271, 10 ml
293800005
$26.99
28
Silicone Sealant 51388, 300 ml
296000309
$36.99
29
Square Stud
250300022
$20.99
30
Flat Washer 10 mm, Stainless
234002600
$2.22
31
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
32
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
33
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
34
RIDING PLATE, BLACK - Call your local BRP dealership
271000955
Unavailable
35
Neoprene Seal
293200051
$17.74
36
Instant Gasket
219701421
$51.99
37
Hex. Screw M8 X 40
207184060
$2.22
38
Stainless, Flat Washer 8 mm
234081600
$0.55
39
Pump Support
204120264
Unavailable
40
Flat Washer 8 mm, Stainless
234082600
$2.43
41
Hex. Elastic Nut M8
232581600
$1.48
42
Loctite 243, 10 ml
293800060
$21.49
43
Silicone Sealant 51388, 300 ml
296000309
$36.99
44
Watertight Seal
293250084
$7.49
45
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
46
Steering Nozzle
204160144
Unavailable
47
Venturi Bushing
293900001
$7.62
48
Plastic Bushing
293900010
$9.59
49
Venturi Spacer
204160153
Unavailable
50
SCREW-SPECIAL M8 - Call your local BRP dealership
211000047
Unavailable
51
Shim 0.3 mm
272000053
$11.49
52
NEEDS DESCRIPTION This part replaces 204120067.
0460011
$10.49
53
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
54
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
55
Flat Washer 10 mm, Stainless
234001600
$1.15
56
Flat Washer 10 mm, Stainless
234002600
$2.22
57
COOLANT FITTING - Call your local BRP dealership
204120265
Unavailable
58
HULL INSERT, 33 MM - Call your local BRP dealership
292000075
Unavailable
