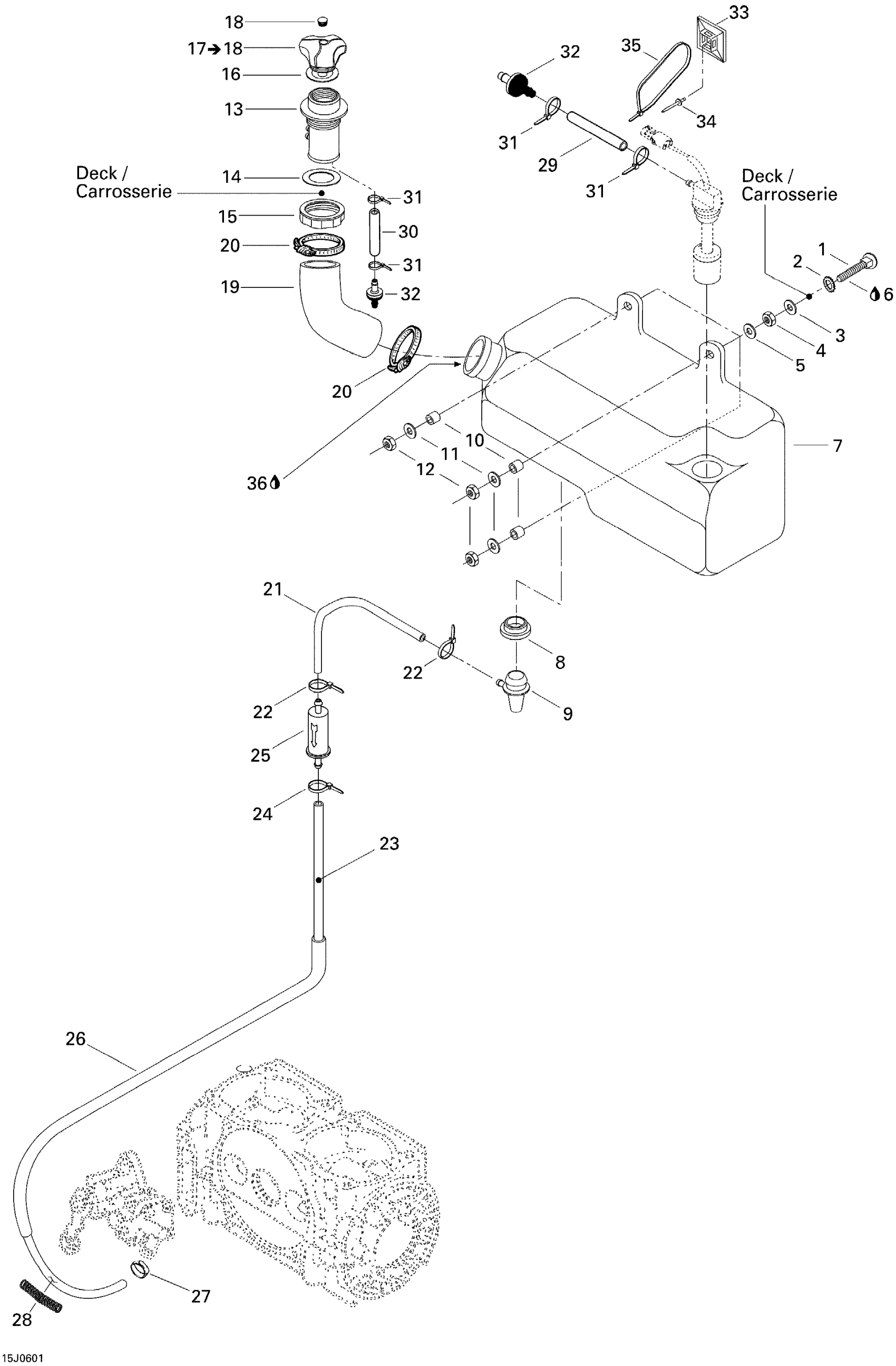

Sea-doo Sportster LE DI, 2006 02- Oil Injection System Diagram
#
Description
Price
1
Screw 1/4”-20 X 1-3/4”
211000193
Unavailable
2
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
3
Stainless, Flat Washer 8 mm
234081600
$0.55
4
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
5
Flat Washer M6, Stainless
234062600
$0.77
6
Loctite 271, 10 ml
293800005
$26.99
7
Oil Tank
204550087
Unavailable
8
Grommet
293720008
$14.75
9
Elbow Fitting 90°
293710070
Unavailable
10
SPACER SLEEVE - Call your local BRP dealership
204550033
Unavailable
11
Flat Washer M6, Stainless
234062600
$0.77
12
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
13
FILLER NECK - Call your local BRP dealership
275000234
Unavailable
14
Gasket
293250029
$14.82
15
Filler Neck Nut, Fuel
211100012
$14.22
16
GASKET - Call your local BRP dealership This part replaces 293250075.
293250211
Unavailable
17
OIL CAP - Call your local BRP dealership | Includes 17 to 18
275000221
Unavailable
18
Snap Cap, Black
293000076
Unavailable
19
FORMED HOSE - Call your local BRP dealership
204550172
Unavailable
20
Norma Clamp
293650077
$7.41
21
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
22
Tie Wrap 94 mm | 4X4
293750001
$1.03
23
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
24
Tie Wrap 94 mm | 4X4
293750001
$1.03
25
OIL FILTER - Call your local BRP dealership
275000262
Unavailable
26
SLIT CONDUIT, METER - Call your local BRP dealership
204550015
Unavailable
27
Oetiker Clamp
293650042
$3.09
28
SPRING - Call your local BRP dealership
204550064
Unavailable
29
Hose 6 Mm 15000Mm Long
219704360
$132.49
30
Was 420660574 Pressure Hose 280 mm
219704352
$224.99
31
Tie Wrap 94 mm | 4X4
293750001
$1.03
32
Check Valve
275500398
$10.99
33
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
34
Pop RIvet 1/8 X ,375
293150285
$0.33
35
Tie Wrap 94 mm | 4X4
293750001
$1.03
36
OIL 2T 12X1 SYNTH - Call your local BRP dealership This part replaces 293600045.
293600132
Unavailable
36
OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.
293600133
Unavailable
36
OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.
779130
Unavailable
