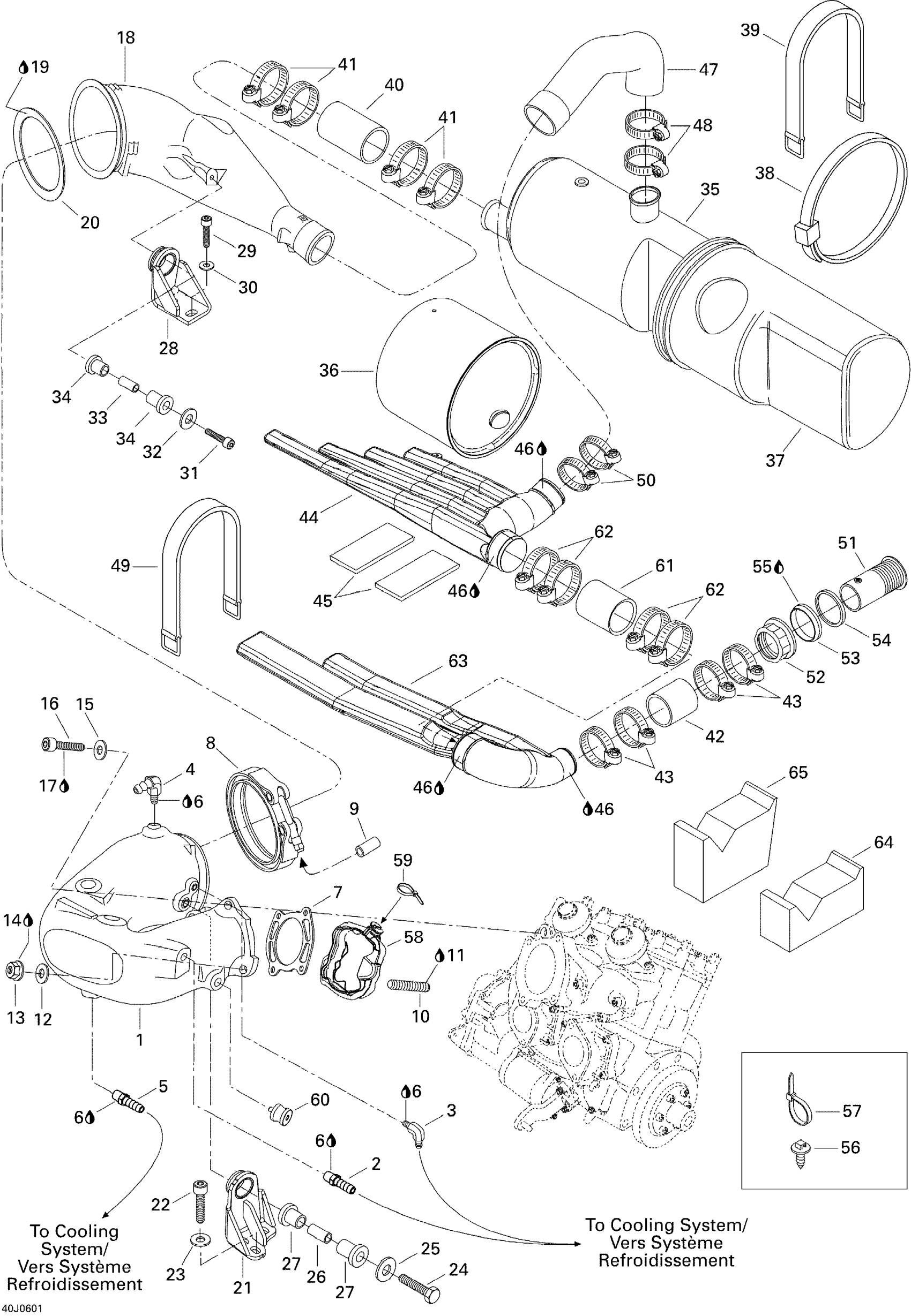

Sea-doo Sportster LE DI, 2006 01- Exhaust System Diagram
#
1
Pipe Head, Black
274001107
Unavailable
2
Male Connector
293710037
$10.49
3
Elbow Fitting 90°
293710048
Unavailable
4
Elbow Fitting
293700016
Unavailable
5
Male Connector | With Catalyst
293710021
$14.23
6
Was 293800013 Loctite 56765
219704454
$65.99
7
EXHAUST GASKET - Call your local BRP dealership
420931990
Unavailable
8
EXHAUST CLAMP - Call your local BRP dealership
274000510
Unavailable
9
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
10
STUD M10 X 5.1 X 55, SCOTCH GRIP - Call your local BRP dealership
250300008
Unavailable
11
Loctite 271, 10 ml
293800005
$26.99
12
Flat Washer
211200051
$1.68
13
Hex. Flange Nut M10
233101600
$5.29
14
Loctite 243, 10 ml
293800060
$21.49
15
Flat Washer
211200051
$1.68
16
SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership
244003560
Unavailable
17
Loctite 243, 10 ml
293800060
$21.49
18
EXHAUST CONE, BLACK - Call your local BRP dealership
274000871
Unavailable
19
Sealant, Loctite, 80 ml | DS 650
293800090
$26.99
20
SEALING RING - Call your local BRP dealership
274000511
Unavailable
21
Pipe Support, Black
274001109
Unavailable
22
SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership
244083060
Unavailable
23
FLAT WASHER M8.4 - Call your local BRP dealership
250200012
Unavailable
24
HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership
245004060
Unavailable
25
Flat Washer 10 mm, Stainless
234002600
$2.22
26
BUSHING - Call your local BRP dealership
274000861
Unavailable
27
RUBBER BUSHING - Call your local BRP dealership
293830065
Unavailable
28
PIPE SUPPORT, BLACK - Call your local BRP dealership
274001110
Unavailable
29
SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership
244083060
Unavailable
30
FLAT WASHER M8.4 - Call your local BRP dealership
250200012
Unavailable
31
Hex. Screw M10 X 40, Scotch Grip
244004060
$4.86
32
Flat Washer 10 mm, Stainless
234002600
$2.22
33
BUSHING - Call your local BRP dealership
274000861
Unavailable
34
RUBBER BUSHING - Call your local BRP dealership
293830065
Unavailable
35
MUFFLER - Call your local BRP dealership
274000826
Unavailable
36
MUFFLER COVER, FRONT - Call your local BRP dealership
274000796
Unavailable
37
Muffler Cover, Rear
274000799
Unavailable
38
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
39
Retainer Strap
293850097
$11.64
40
Exhaust Hose
274000896
Unavailable
41
Tridon Clamp
293650064
$8.29
42
Exhaust Hose
274000616
Unavailable
43
Tridon Clamp
293650064
$8.29
44
LH UPPER RESONATOR - Call your local BRP dealership
274000700
Unavailable
45
RUBBER PAD - Call your local BRP dealership
274000752
Unavailable
46
Sealant, Loctite, 80 ml | DS 650
293800090
$26.99
47
Exhaust Hose
274000830
Unavailable
48
Tridon Clamp
293650064
$8.29
49
STRAP - Call your local BRP dealership
293850022
Unavailable
50
Tridon Clamp
293650064
$8.29
51
EXHAUST OUTLET - Call your local BRP dealership
274000222
Unavailable
52
Nut 72 mm
274000224
$16.34
53
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
54
GASKET - Call your local BRP dealership
293250041
Unavailable
55
Silicone Sealant 51388, 300 ml
296000309
$36.99
56
Mount Dart
293730040
$1.04
57
Tie-Rap 180 mm
414115200
$0.11
58
PICK UP ENVELOPE - Call your local BRP dealership
274000862
Unavailable
59
Tie Wrap 142 mm
293750002
$1.25
60
Rubber Isolator
707000949
$11.49
61
EXHAUST HOSE - Call your local BRP dealership
274000726
Unavailable
62
Tridon Clamp
204000079
$9.99
63
RESONATOR EXTENSION - Call your local BRP dealership
274000701
Unavailable
64
Resonator Support, Rear
204340416
Unavailable
65
Resonator Support, Front
204340438
Unavailable
