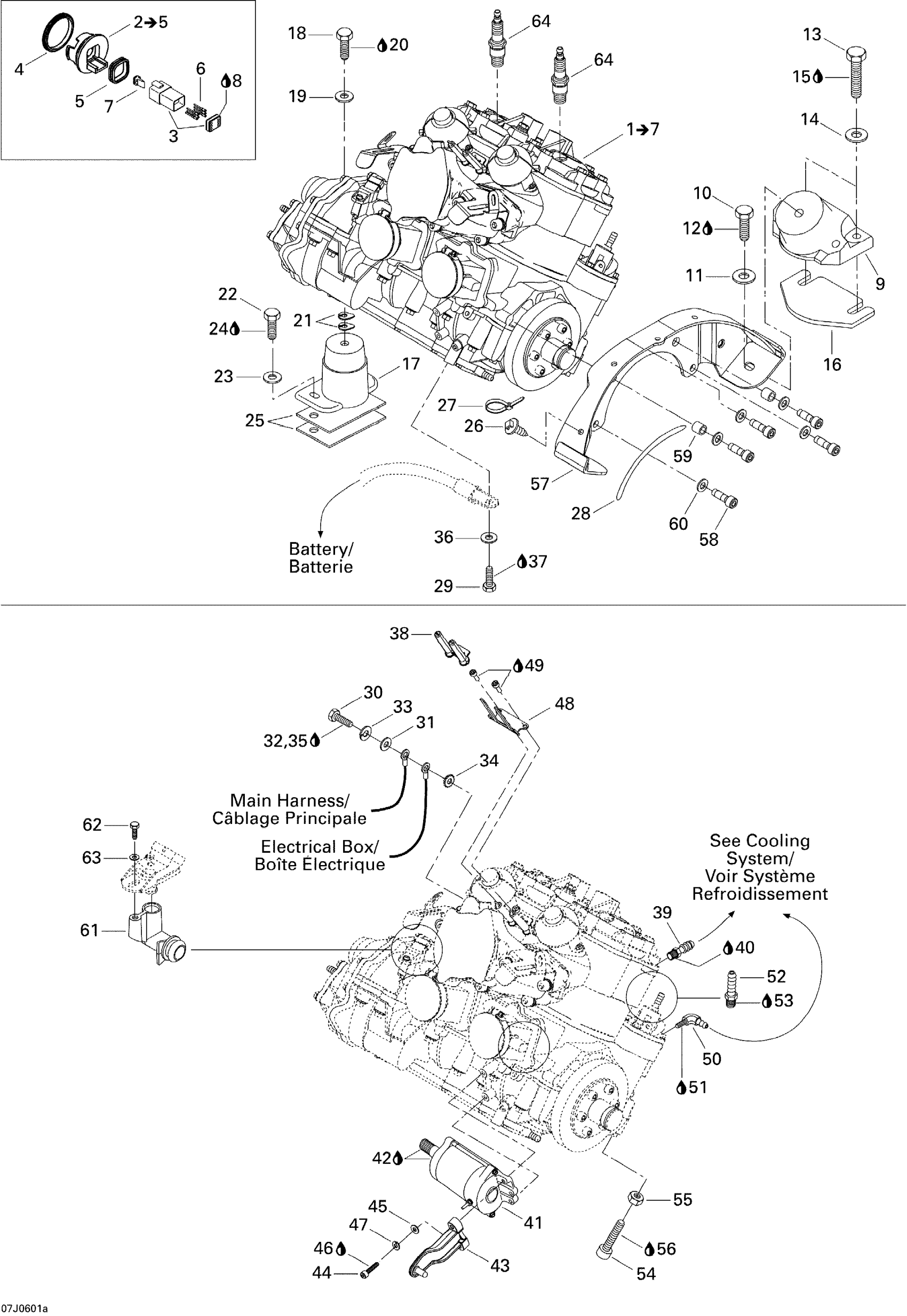

Sea-doo Sportster LE DI, 2006 Engine 1 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Adaptor Ass'y | Includes 3 to 7

707000031

Unavailable

3

Male Terminal Housing, 6 Circuits

710001539

$19.99

4

Gasket

293300033

Unavailable

5

Gasket

293200055`

Unavailable

6

Male Terminal

278000631

$4.39

7

Female Lock, 6 Circuits

278000735

$3.19

8

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

9

Rubber Mount, Black

270000421

Unavailable

10

Hex. Screw M8 X 16

207181660

Unavailable

11

Flat Washer 8 mm, Stainless

234082600

$2.43

12

Loctite 243, 10 ml

293800060

$21.49

13

Hex. Screw M8 X 40

207184060

$2.22

13

HEX. SCREW M8 X 45 - Call your local BRP dealership

207184560

Unavailable

14

Stainless, Flat Washer 8 mm

234081600

$0.55

15

Loctite 243, 10 ml

293800060

$21.49

16

Shim 0.3 mm

270000122

Unavailable

16

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

17

Rubber Mount, Black

270000422

Unavailable

18

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

19

Flat Washer 8 mm, Stainless

234082600

$2.43

20

Loctite 243, 10 ml

293800060

$21.49

21

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

21

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

22

Hex. Screw M8 X 40

207184060

$2.22

23

Stainless, Flat Washer 8 mm

234081600

$0.55

24

Loctite 243, 10 ml

293800060

$21.49

25

Shim 0.3 mm

270000122

Unavailable

25

Shim 0.3 mm - Call your local BRP dealership

204250048

Unavailable

25

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

25

SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.

204250049

Unavailable

26

Mount Dart

293730040

$1.04

27

Tie-Rap 180 mm

414115200

$0.11

28

Was 271000110 Protection Trim

219704353

$15.99

29

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

30

Hex. Screw M6 X 25

207162560

$1.47

31

Flat Washer M6, Stainless

234062600

$0.77

32

Loctite 243, 10 ml

293800060

$21.49

33

Lock Washer Helical M6

234161601

$1.15

34

External Serrated Lock Washer 6 mm

234461608

$1.15

35

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

36

Flat Washer 10 mm, Stainless

234001600

$1.15

37

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

38

INSULATOR - Call your local BRP dealership

278001512

Unavailable

39

MALE CONNECTOR - Call your local BRP dealership

293710066

Unavailable

40

Was 293800013 Loctite 56765

219704454

$65.99

41

Starter Ass'y, Black

278001937

$265.99

42

Synthetic Grease, 400 G

293550010

Unavailable

43

AIR SILENCER SUPPORT - Call your local BRP dealership

273000227

Unavailable

44

Socket Head Screw M6 X 35

205063560

$2.22

45

Stainless Flat Washer M6

234061600

$0.33

46

Loctite 243, 10 ml

293800060

$21.49

47

Lock Washer Helical M6

234161601

$1.15

48

GROUND PLATE - Call your local BRP dealership

278001662

Unavailable

49

Loctite 243, 10 ml

293800060

$21.49

50

Elbow Fitting

293700016

Unavailable

51

Was 293800013 Loctite 56765

219704454

$65.99

52

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

53

Was 293800013 Loctite 56765

219704454

$65.99

54

Socket Screw M10 X 30

205003060

Unavailable

55

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

56

Loctite 271, 10 ml

293800005

$26.99

57

Engine Support, Black

270000515

Unavailable

58

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

59

BUSHING - Call your local BRP dealership

270000453

Unavailable

60

Stainless, Flat Washer 8 mm

234081600

$0.55

61

VALVE ADAPTOR - Call your local BRP dealership

270600019

Unavailable

62

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

63

Flat Washer | XT

211200035

$0.55

64

Spark Plug NGK Zfr4f-11

278001650

$6.35
