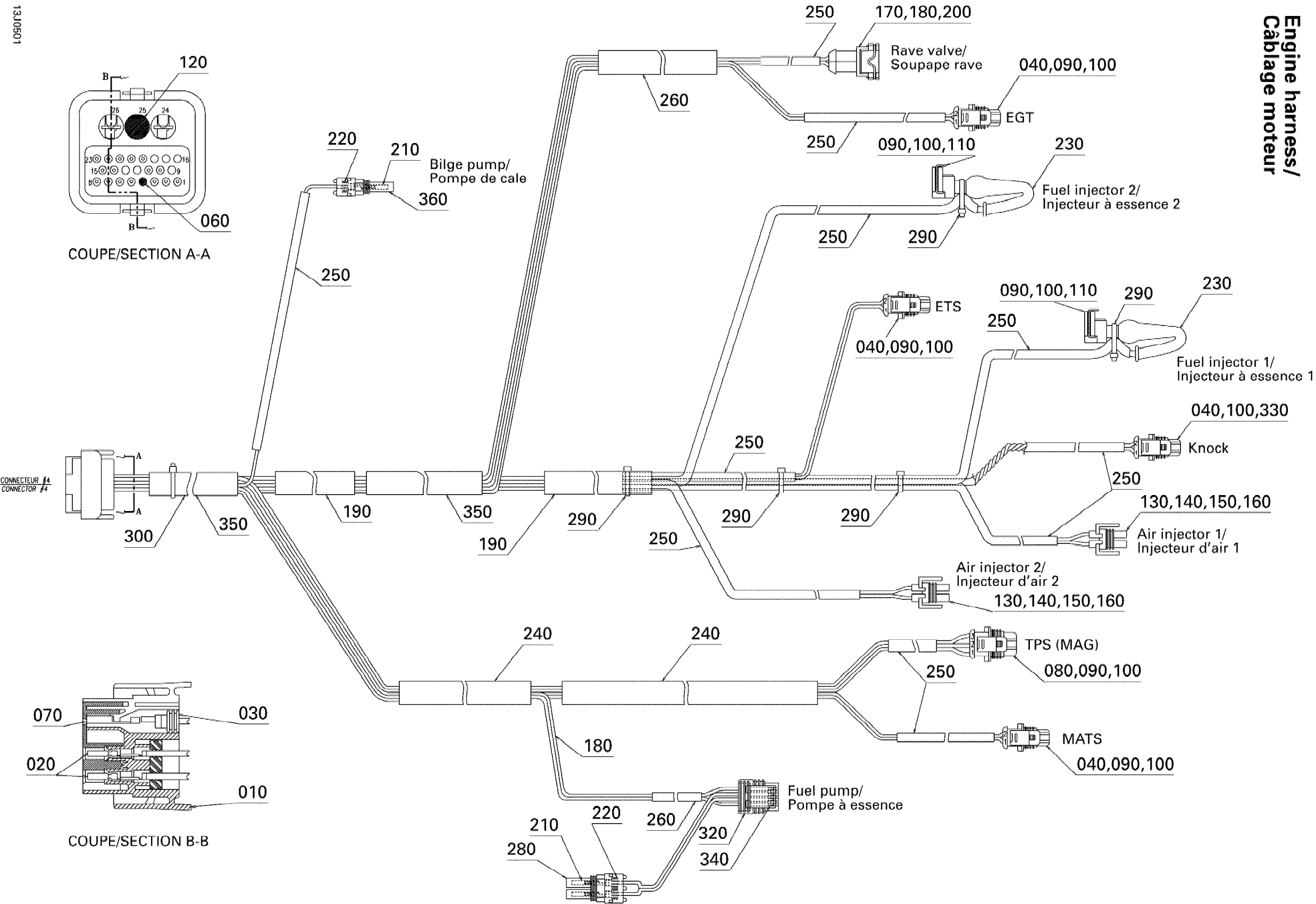

Sea-doo Sportster LE DI, 2005 Electrical Harness Diagram
#
Description
Price
1
Engine Harness Ass'y | Includes 001 to 360
204470865
Unavailable
10
MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership
278001211
Unavailable
20
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
30
Seal
278001223
Unavailable
60
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
70
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
120
SEAL - Call your local BRP dealership
409013900
Unavailable
130
MALE CONNECTOR, 2 CIRCUITS - Call your local BRP dealership
278001480
Unavailable
160
LOCK, 2 CIRCUITS - Call your local BRP dealership
278001483
Unavailable
190
Not Available As Spare Part - Friction Washer
Unavailable
230
RUBBER CAP - Call your local BRP dealership
278001484
Unavailable
240
Not Available As Spare Part - Friction Washer
Unavailable
250
Not Available As Spare Part - Friction Washer
Unavailable
260
Not Available As Spare Part - Friction Washer
Unavailable
320
MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership
278001308
Unavailable
330
FEMALE TERMINAL - Call your local BRP dealership
278001210
Unavailable
350
Not Available As Spare Part - Friction Washer
Unavailable
360
Not Available As Spare Part - Friction Washer
Unavailable
