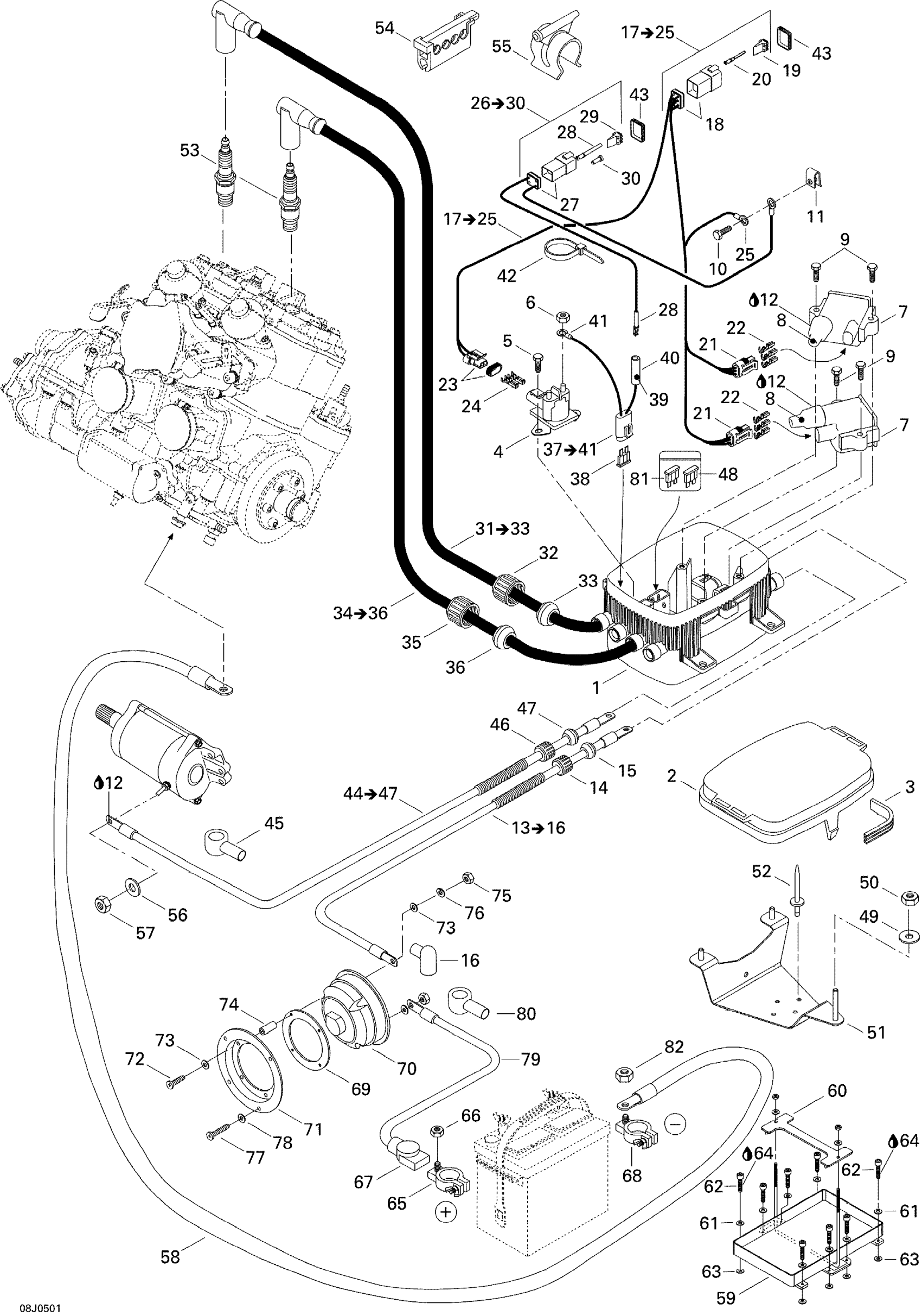

Sea-doo Sportster LE DI, 2005 Electrical Box Diagram

#

Description
Price

1

Electric Box Base

278001760

Unavailable

2

ELECTRIC BOX COVER - Call your local BRP dealership

278001433

Unavailable

3

GASKET - Call your local BRP dealership

278001173

Unavailable

4

Starter Relay

278003012

$42.49

5

Hex. Flange Screw M6 X 10

210261040

$1.48

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

IGNITION COIL - Call your local BRP dealership

278001451

Unavailable

8

PROTECTOR CAP - Call your local BRP dealership

278001470

Unavailable

9

SCREW-TAPP.HEX.ISO.1479F - Call your local BRP dealership

209463840

Unavailable

10

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

11

U Type Nut M6

250100029

Unavailable

12

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

13

POSITIVE CABLE ASS'Y - Call your local BRP dealership | Includes 13 to 16

204470286

Unavailable

14

Electric Wire Cap

278000100

Unavailable

15

GROMMET - Call your local BRP dealership

278000098

Unavailable

16

RED BOOT - Call your local BRP dealership

204470269

Unavailable

17

Box Harness | Includes 17 to 25

278001458

Unavailable

18

Male Terminal Housing, 6 Circuits

710001539

$19.99

19

Female Lock, 6 Circuits

278000735

$3.19

20

Male Terminal

278000631

$4.39

21

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

22

FEMALE TERMINAL - Call your local BRP dealership

278001468

Unavailable

23

Male Connector, 2 Circuits

278001113

$16.86

24

Female Terminal

278001114

$3.19

25

Open Barrel Terminal

278001392

$4.79

26

ELECTRIC BOX HARNESS ASS'Y - Call your local BRP dealership | Includes 26 to 30

278001494

Unavailable

27

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

28

MALE TERMINAL - Call your local BRP dealership

515175261

Unavailable

29

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

30

Sealing Cap

293000052

$3.19

31

COIL CABLE, 735 MM - Call your local BRP dealership | Includes 31 to 33

278001454

Unavailable

32

Electric Wire Cap

278000100

Unavailable

33

Grommet

278000682

Unavailable

34

COIL CABLE, 635MM - Call your local BRP dealership | Includes 34 to 36

278001466

Unavailable

35

Electric Wire Cap

278000100

Unavailable

36

Grommet

278000682

Unavailable

37

Fuse Harness, 30 Amperes | Includes 37 to 41

278001453

Unavailable

38

Fuse, 30 Amperes

410917200

$3.28

39

Deutsch Joint Housing

515175259

Unavailable

40

FEMALE TERMINAL - Call your local BRP dealership

515175260

Unavailable

41

Open Barrel Terminal

278001392

$4.79

42

Tie Wrap 142 mm

293750002

$1.25

43

Gasket

293200055`

Unavailable

44

STARTER RED CABLE - Call your local BRP dealership | Includes 44 to 47

278001437

Unavailable

45

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

46

Electric Wire Cap

278000100

Unavailable

47

GROMMET - Call your local BRP dealership

278000098

Unavailable

48

Fuse, 25 Amperes

278001443

$3.28

49

Flat Washer M6, Stainless

234062600

$0.77

50

Hex. Elastic Stop Nut M6

232561600

$1.15

51

Electric Box Support Ass'y

278001426

Unavailable

52

Avdel Rivet 3/16"

293150037

$0.56

53

Spark Plug NGK Zfr4f-11

278001650

$6.35

54

4 Wire Support

278000346

Unavailable

55

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

56

Stainless Flat Washer M6

234061600

$0.33

57

Hex. Elastic Stop Nut M6

232561600

$1.15

58

RH GROUND CABLE - Call your local BRP dealership

204470199

Unavailable

59

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

60

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

61

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

62

Socket Head Screw M6 X 25

205062560

$1.69

63

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

64

Loctite 243, 10 ml

293800060

$21.49

65

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

66

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

67

RED BOOT - Call your local BRP dealership

204470269

Unavailable

68

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

69

SWITCH ADAPTOR - Call your local BRP dealership

204470813

Unavailable

70

BATTERY SWITCH - Call your local BRP dealership

204470814

Unavailable

71

SWITCH SUPPORT - Call your local BRP dealership

204470259

Unavailable

72

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

73

Flat Washer M5, Stainless

234051600

$0.77

74

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

75

Hex. Nut M5

232051600

$1.15

76

Helical Lock Washer M5

234151601

$1.15

77

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

78

Flat Washer 4 mm, Stainless

234041600

$1.15

79

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

80

RED BOOT - Call your local BRP dealership

204470269

Unavailable

81

Fuse, 15 Amperes

278000343

$3.28

82

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable
