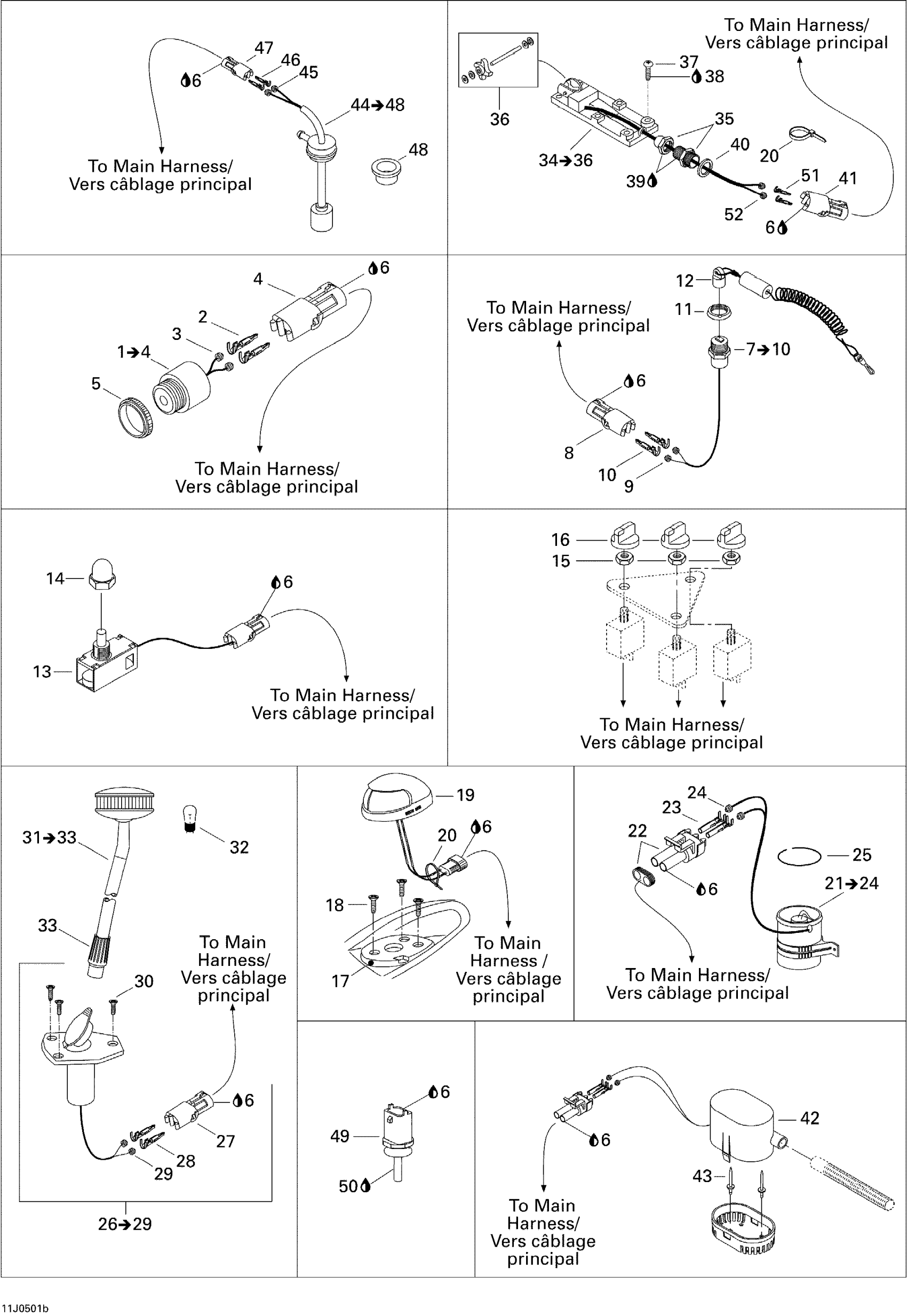

Sea-doo Sportster LE DI, 2005 Electrical Accessories 2 Diagram

#

Description
Price

1

Buzzer Ass'y

204470913

$82.81

2

Male Terminal | XT Models

278000222

$2.93

3

Wire Seal

278000218

$4.00

4

Female Housing, 2 Circuits

278000217

$8.72

5

Buzzer Nut

278000707

Unavailable

6

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

7

Safety Switch This part replaces 278002325.

278002773

$102.96

8

Male Housing, 3 Circuits

278000273

$8.72

9

Wire Seal

278000218

$4.00

10

Female Terminal

278000223

$2.93

11

Safety Nut (DESS Switch)

278002963

$3.12

12

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

13

IGNITION SWITCH - Call your local BRP dealership

278000621

Unavailable

14

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

15

Switch Nut

278000647

Unavailable

16

SWITCH CAP - Call your local BRP dealership

278000542

Unavailable

17

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

18

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

19

Front Lamp

204470311

Unavailable

20

Tie Wrap 94 mm | 4X4

293750001

$0.96

21

Fan Ass'y | Includes 44 to 47

204470108

$131.31

22

Male Connector, 2 Circuits

278000220

$12.66

23

Female Terminal

278000223

$2.93

24

Wire Seal

278000218

$4.00

25

BROACH - Call your local BRP dealership

204000133

Unavailable

26

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

27

Female Housing, 2 Circuits

278000217

$8.72

28

Male Terminal | XT Models

278000222

$2.93

29

Wire Seal

278000218

$4.00

30

Phillips Tapping Screw M4.2 X 32

209943260

$1.40

31

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

32

Bulb

204470053

Unavailable

33

COLLAR - Call your local BRP dealership

204470350

Unavailable

34

Speed Sensor Ass'y | Includes 34 to 36

204470970

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

38

Loctite 243, 10 ml

293800060

$21.49

39

Silicone Sealant 51388, 300 ml

296000309

$36.99

40

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

41

Female Housing, 2 Circuits

278000217

$8.72

42

Bilge Pump

204471431

Unavailable

43

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

44

Oil Sensor | Includes 44 to 48

278001402

Unavailable

45

Wire Seal

278000218

$4.00

46

Male Terminal | XT Models

278000222

$2.93

47

Female Housing, 2 Circuits

278000217

$8.72

48

Grommet

293720008

$12.52

49

Temperature Sensor

278002895

$36.54

50

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

51

Male Terminal | XT Models

278000222

$2.93

52

Wire Seal

278000218

$4.00
