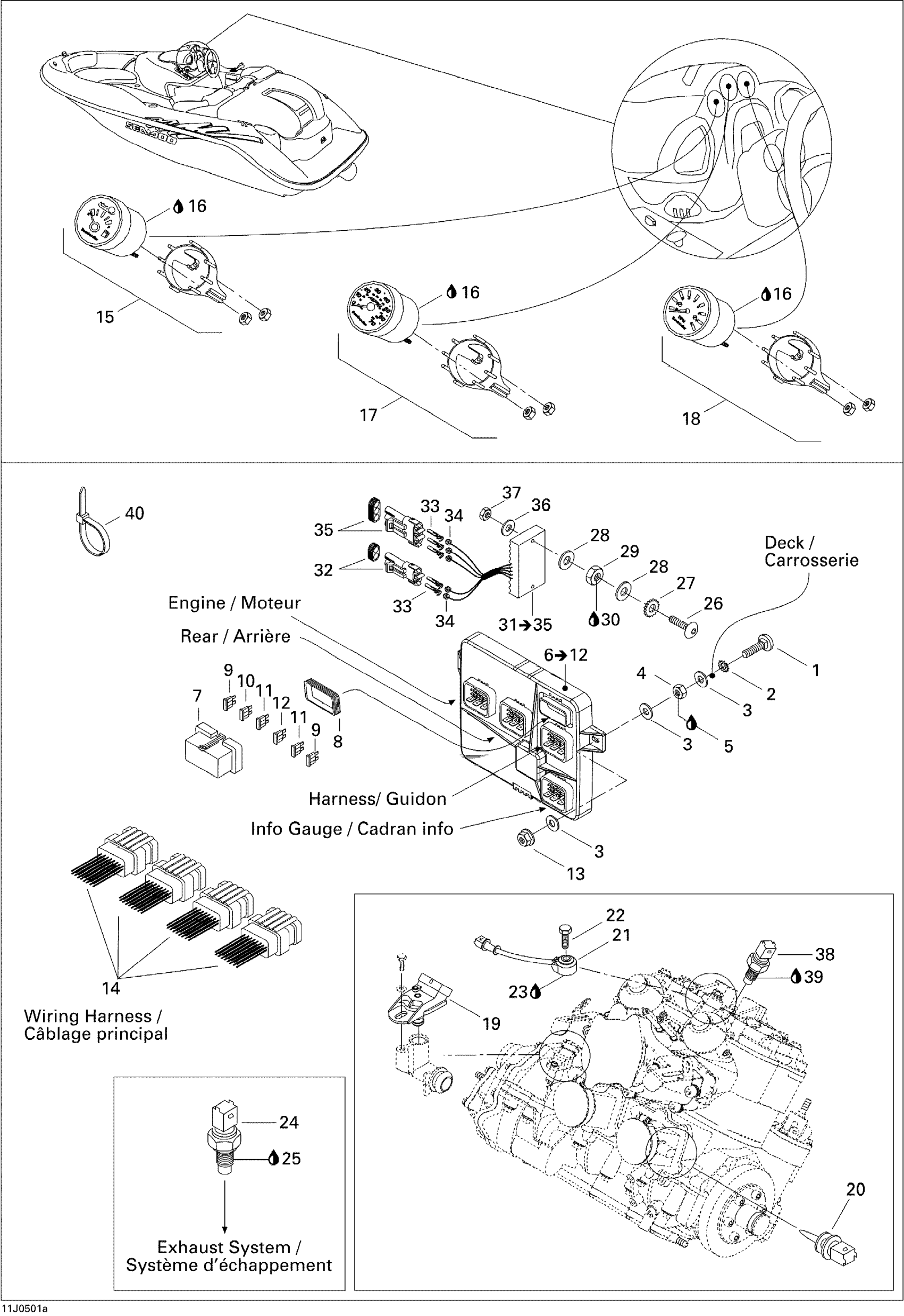

Sea-doo Sportster LE DI, 2005 10- Electrical Accessories 1 Diagram
#
Description
Price
1
Elevator Bolt
204000130
Unavailable
2
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
3
Flat Washer M6, Stainless
234062600
$0.77
4
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
5
Loctite 271, 10 ml
293800005
$26.99
6
Electronic Module Ass'y | Includes 6 to 12
278001747
Unavailable
7
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
8
Cover Seal
278001070
Unavailable
9
Fuse, 15 Amperes
278000343
$3.28
10
FUSE, 2 AMPERES - Call your local BRP dealership
278001442
Unavailable
11
Fuse, 25 Amperes
278001443
$3.28
12
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
13
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
14
Harness Ass'y
204470863
Unavailable
15
Fuel/oil Gauge
204470963
Unavailable
16
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
17
Speedometer Gauge
204470964
Unavailable
18
Tachometer Gauge
204470965
Unavailable
19
Pressure Sensor
270600040
$199.99
20
AIR TEMPERATURE SENSOR - Call your local BRP dealership
270600000
Unavailable
21
Noise Sensor
270000484
$82.99
22
Hex. Screw M8 X 30
207183060
$1.58
23
Loctite 243, 10 ml
293800060
$21.49
24
Temperature Sensor
278002895
$39.99
25
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
26
Elevator Bolt
204000130
Unavailable
27
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
28
Flat Washer M6, Stainless
234062600
$0.77
29
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
30
Loctite 271, 10 ml
293800005
$26.99
31
Rectifier Ass’Y | Includes 30 - 34.
278001554
$209.99
32
Male Connector, 2 Circuits
278000220
$15.49
33
Female Terminal
409007300
$0.45
34
Wire Seal
278000218
$4.39
35
Male Housing, 3 Circuits
278000273
$9.59
36
Stainless Flat Washer M6
234061600
$0.33
37
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
38
Temperature Sensor
278002895
$39.99
39
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
40
Tie-Rap 180 mm
414115200
$0.11
