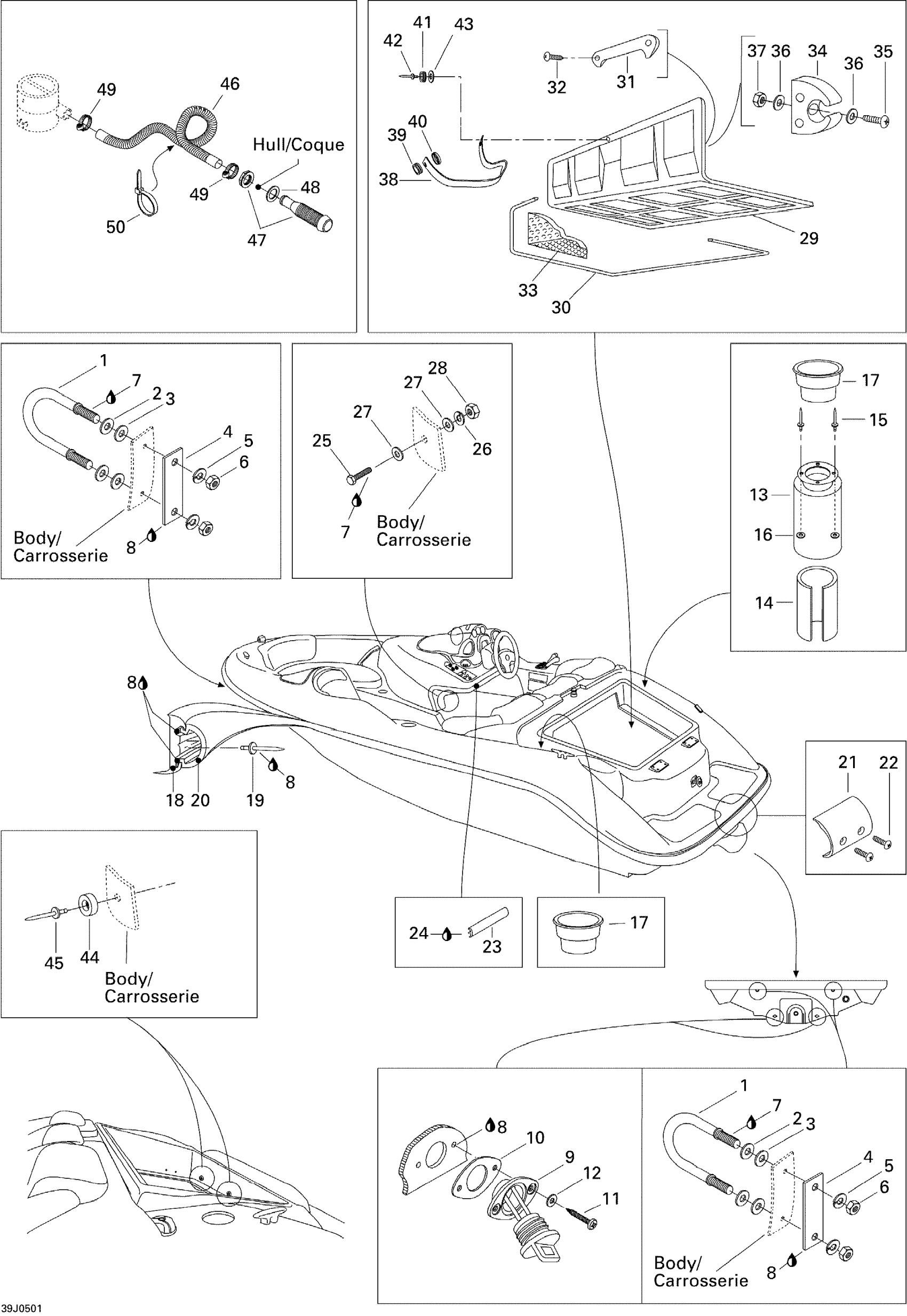

Sea-doo Sportster LE DI, 2005 09- Hull Diagram
#
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
Flat Washer M8.5 x 18
293050001
$3.07
3
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
4
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
5
Lock Washer 8 mm, Stainless
234181601
$0.55
6
Hex. Nut M8
232081600
$1.47
7
Loctite 271, 10 ml
293800005
$26.99
8
Silicone Sealant 51388, 300 ml
296000309
$36.99
9
Drain Plug
292000187
$14.49
10
GASKET - Call your local BRP dealership
293250030
Unavailable
11
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
12
Flat Washer 4 mm, Stainless
234041600
$1.15
13
Rear Hose Vent
204050004
Unavailable
14
Sound Damping
291000400
Unavailable
15
Pop Rivet 3/16"
293150014
$1.09
16
FLAT WASHER 3/16? - Call your local BRP dealership
211200039
Unavailable
17
Cup Holder
291000914
Unavailable
18
BUMPER - Call your local BRP dealership
204050458
Unavailable
19
Pop Rivet 3/16"
293150013
$1.37
20
TRIM - Call your local BRP dealership
204050459
Unavailable
21
BUMPER COVER - Call your local BRP dealership
291000905
Unavailable
22
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
23
TRIM, WHITE - Call your local BRP dealership
204050042
Unavailable
24
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
25
Hex. Screw M5 X 35
207153560
Unavailable
26
Helical Lock Washer M5
234151601
$1.15
27
Flat Washer 5 mm, Stainless
234052600
$0.77
28
Hex. Nut M5
232051600
$1.15
29
Access Cover
204050613
Unavailable
30
Seal Tray 1000Mm Long
219704368
$13.99
31
HANDLE, WHITE - Call your local BRP dealership
291000608
Unavailable
32
Hex. Flange Screw K40 X 16
241141660
$1.48
33
Luggage Foam
237500013
Unavailable
34
Pole Support
291000642
Unavailable
35
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
36
Flat Washer 4 mm
234040600
$0.55
37
Elastic Stop Nut M4
232541600
$1.15
38
NYLON STRAP - Call your local BRP dealership
204070106
Unavailable
39
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
40
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
41
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
42
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
43
Flat Washer M3, Stainless
234032600
$0.55
44
Rubber Stopper
293830043
Unavailable
45
RIVET - Call your local BRP dealership
293150065
Unavailable
46
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
47
Fitting
293710162
$13.49
48
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
49
Tridon Clamp
293650016
$10.99
50
Tie-Rap 180 mm
414115200
$0.11
