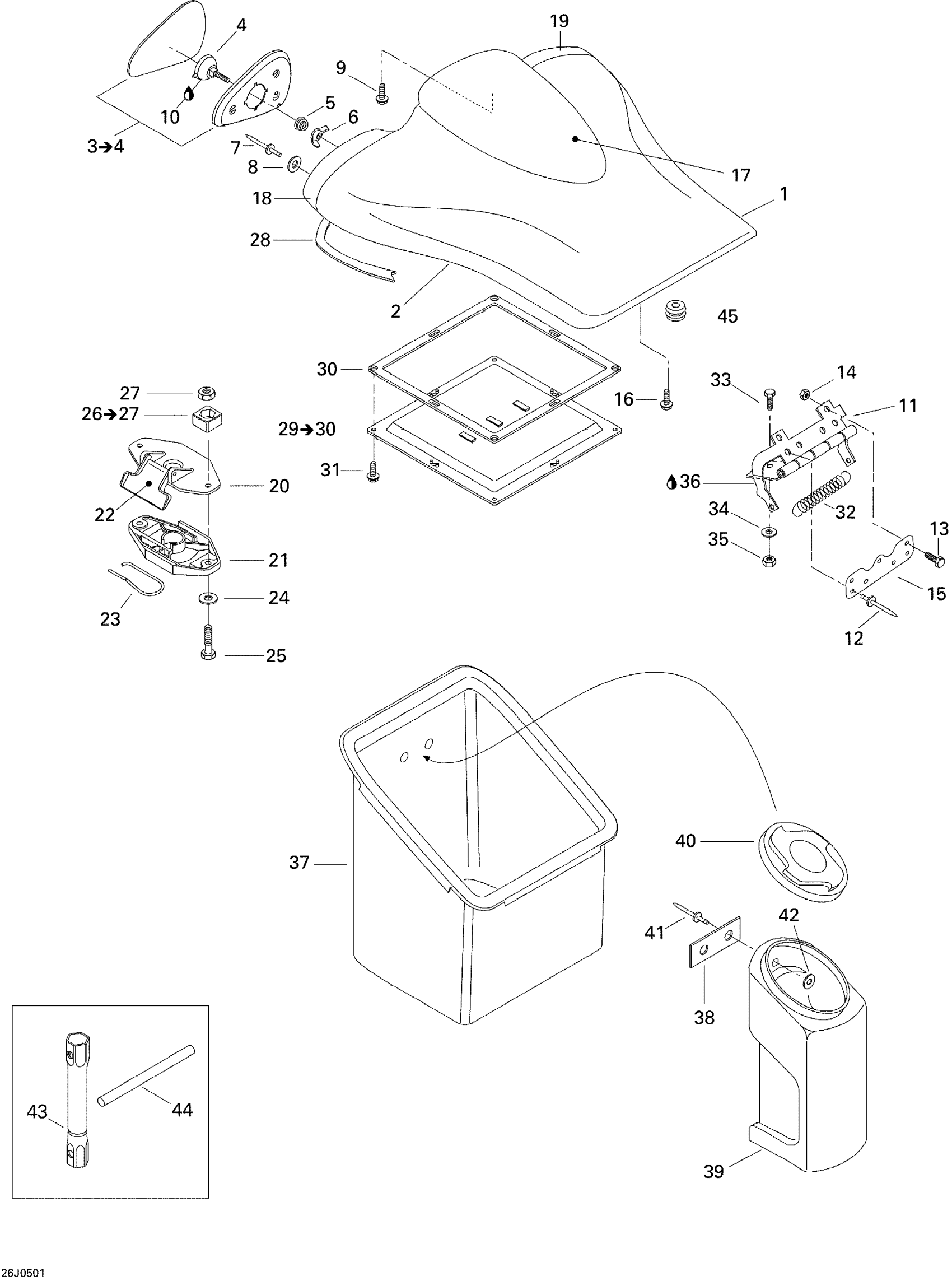

Sea-doo Sportster LE DI, 2005 09- Front Storage Compartment Diagram
#
1
UPPER STORAGE COVER - Call your local BRP dealership
269500170
Unavailable
2
LOWER STORAGE COVER - Call your local BRP dealership
269500227
Unavailable
3
RH Mirror | Includes 3 to 4
269500055
Unavailable
3
LH Mirror | Includes 3 to 4
269500056
Unavailable
4
MIRROR BALL JOINT - Call your local BRP dealership
269500079
Unavailable
5
Mirror Spring
269500082
Unavailable
6
WING NUT M6 - Call your local BRP dealership
232661600
Unavailable
7
Pop Rivet 3/16"
293150008
$0.50
8
Flat Washer, Emhart
213200016
$0.72
9
Screw K40 X 10
241140060
$1.48
10
Synthetic Grease, 400 G
293550010
Unavailable
11
HINGE ASS'Y - Call your local BRP dealership
204620281
Unavailable
12
Pop Rivet 3/16"
293150039
$1.49
13
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
14
Hex. Elastic Nut M5 | X
232551600
$1.15
15
Retainer Plate
269500107
Unavailable
16
Hex. Flange Screw K40 X 16
241141660
$1.48
17
Deflector
204620237
Unavailable
18
RH Mirror Housing
269500172
Unavailable
19
LH Mirror Housing
269500173
Unavailable
20
Latch Ass'y
269700109
$24.99
21
Latch Ass'y
269700109
$24.99
22
Latch Ass'y
269700109
$24.99
23
Latch Spring
269700017
$9.19
24
Stainless Flat Washer M6
234061600
$0.33
25
Hex. Screw M6 X 35
207163560
$1.49
26
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
27
Hex. Nut M6
232061600
$1.15
28
Seal Tray 1000Mm Long
219704368
$13.99
29
ACCESS COVER ASS'Y - Call your local BRP dealership | Includes 29 to 30
269500241
Unavailable
30
TRAY SEAL - Call your local BRP dealership
293200033
Unavailable
31
Hex. Flange Screw K40 X 16
241141660
$1.48
32
Hinge Spring
204620049
Unavailable
33
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152560
Unavailable
34
Flat Washer M5, Stainless
234051600
$0.77
35
Hex. Elastic Nut M5 | X
232551600
$1.15
36
Synthetic Grease, 400 G
293550010
Unavailable
37
STORAGE TRAY - Call your local BRP dealership
269501940
$53.99
38
GASKET - Call your local BRP dealership
293250037
Unavailable
39
EXTINGUISHER HOUSING - Call your local BRP dealership
269500606
Unavailable
40
EXTINGUISHER HOUSING CAP - Call your local BRP dealership
269501939
Unavailable
41
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
42
Flat Washer M3, Stainless
234032600
$0.55
43
Socket Wrench
529035731
Unavailable
44
Steel Bar
204630051
Unavailable
45
Grommet
204070238
Unavailable
